ENPAC Storm Sentinel® Curb Basin Insert (MPN: 4320-CURB)

Description

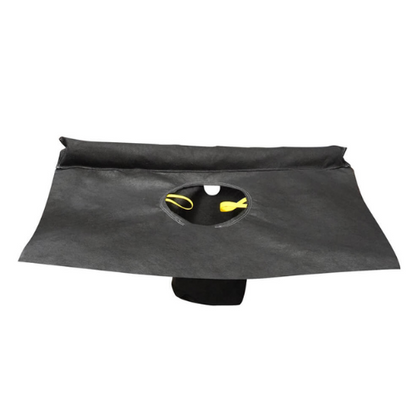

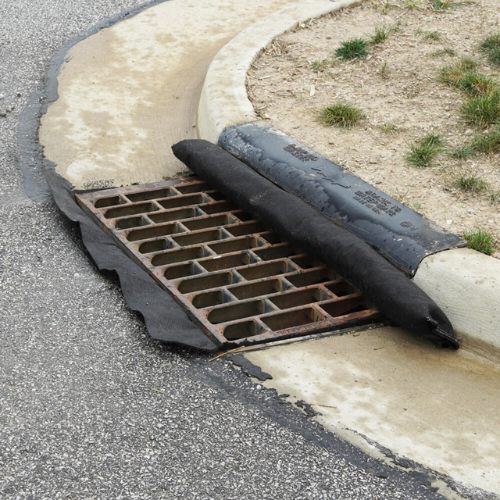

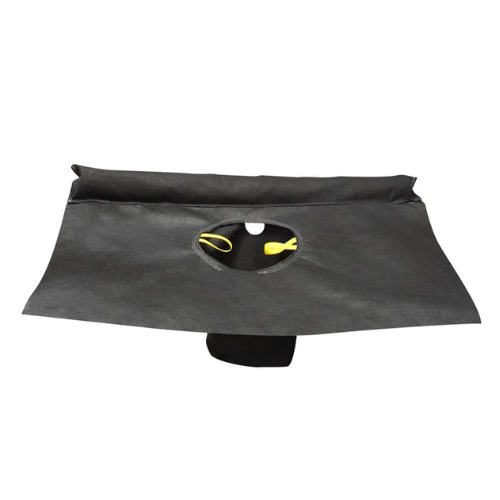

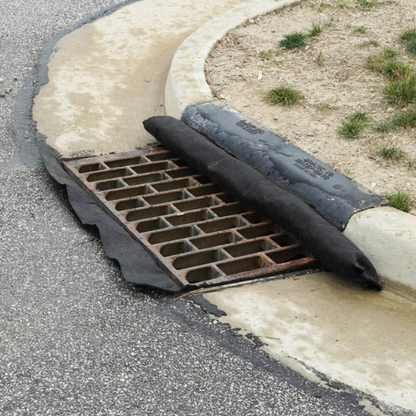

The ENPAC Storm Sentinel® Curb Basin Insert (MPN: 4320-CURB) combines the Frameless Catch Basin Insert with a Curb Inlet Filter, providing double filtration to prevent harmful pollutants from entering storm drains. Storm water passes through the coiled curb inlet filter while the catch basin insert captures sediment and debris entering the drop inlet. This dual filtration system ensures superior pollutant control.

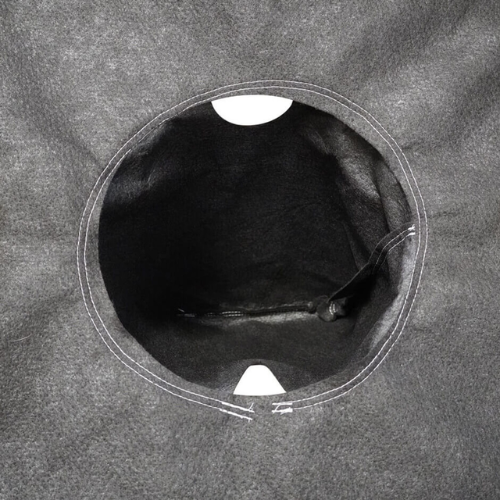

The frameless catch basin insert allows the fabric to be cut to size for custom applications. Its low-profile design sits below the grate for unobtrusive placement. Fully reusable until water flow performance declines, it complies with environmental regulations and is suitable for Storm Water Pollution Prevention Plans (SWPPP).

Key feature

• Frameless catch basin – fabric can be cut to fit
• Easy installation and removal
• Low-profile design sits below the grate
• Geotextile fabric filters out contaminated sediment
• Standard versions feature overflow bypass ports for high-flow events
• Reusable until water flow performance declines

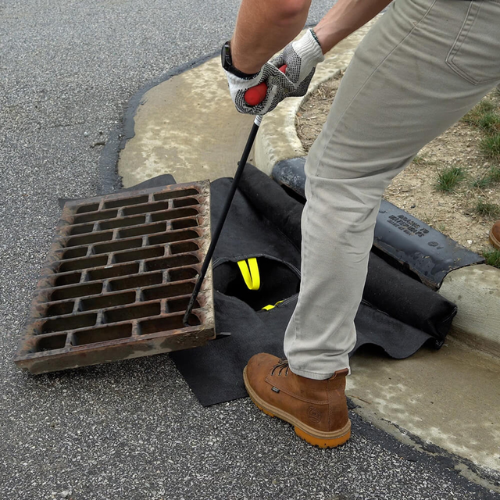

• One-person install and removal with no special tools
• Complies with SWPPP requirements and environmental regulations


Specifications

• Material: Non-Woven Geotextile
• Top Apron Dimensions (LxW): 36 in. x 48 in. (91 cm x 122 cm)
• Cone Depth: 18 in. (45 cm)
• Curb Coil Diameter: 5 in. (12.7 cm)
• Curb Coil Length: 48 in. (121.9 cm)
• Weight: 7 lbs. (3.2 kg)
• Load Capacity: 40 lbs. (18 kg)

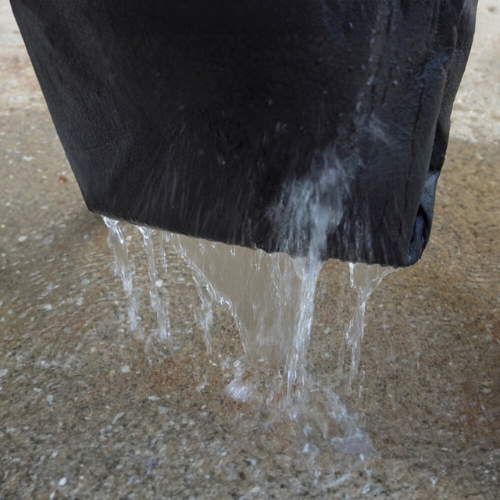

• Flow Rate: 90 gal. (340.69 L) per min. per sqft.
• Regulations: 40 CFR 122.26, EPA, SPCC, NPDES


Documents

View Catalog Page:
Catalog Page 91

View Product Instructions:
4320-CURB Storm Sentinel Instructions

View Product Instructions:
BMP Maintenance Log

View Regulations:
Codes and Regulations
