500 Gallon Texas Precast Concrete Grease / Lint Interceptor (MPN 500GT)

Description

The Texas Precast Model 500GT is a 500-gallon precast concrete interceptor cast at the Texas Precast plant in Santa Fe, Texas, and supplied as either a grease interceptor or a lint interceptor. It is poured at a minimum 6,000 PSI compressive strength at 28 days, fitted with a Polylok PL-625 effluent filter certified to ANSI/NSF Standard 46, and topped with two 24" traffic-duty cast iron manhole rings and lids. The manufacturer drawing lists an approximate working capacity of 639 gallons.

Key Features

• Grease or Lint Configuration: The same tank is supplied as a grease interceptor or a lint interceptor - select the configuration at checkout
• Polylok PL-625 Effluent Filter: Certified to ANSI/NSF Standard 46 with 1/32" filtration at 10,000 GPD
• Traffic-Duty Access: Two 24" cast iron ASTM A48 Class 30B/35B rings and lids rated 40,000 lb traffic duty
• 6,000 PSI Precast Concrete: Poured monolithically at a minimum 6,000 PSI compressive strength at 28 days
• Engineered to UPC/IPC: Structurally and hydraulically engineered to adhere to UPC/IPC and recommended regional plumbing standards
• Texas Manufactured: Cast in Santa Fe, Texas and shipped from the plant

Specifications

• Nominal Capacity: 500 Gallons
• Approximate Capacity (per drawing): 639 Gallons
• Dimensions: 90" L x 50" W x 61" H (outside, tank body)
• Approximate Weight: 5,840 lbs
• Shape: Rectangular
• Effluent Filter: Polylok PL-625, certified to ANSI/NSF Standard 46, 1/32" filtration, 10,000 GPD
• Ring and Lid: Cast iron, ASTM A48 Class 30B/35B - 24" traffic-duty manhole ring and lid (item no. 2117), two per unit
• Load Rating: 12,000 lb regular duty / 40,000 lb traffic duty
• Engineering: Structurally and hydraulically engineered to adhere to UPC/IPC and recommended regional plumbing standards
• Material: Precast concrete, 6,000 PSI minimum compressive strength at 28 days
• Reinforcement: 6x6 10-gauge ASTM A185 65 KSI welded wire continuous around the tank perimeter, plus #3 Grade 60 rebar per engineering specification
• Lid Reinforcement: #3 rebar at 6" on center both ways, plus a mat of 6x6 10-gauge wire
• Pipe Penetrations: Inlet and outlet seals are watertight and meet ASTM C923
• Partition Walls: Where present, poured monolithically
• Manufacturer: Texas Precast, L.L.C. - Santa Fe, Texas
• Ships From: Texas (TX)
• Manufacturer Models: 500GT (grease) / 500 LINT INTERCEPTOR (lint)

Applications

• Commercial kitchen grease interception ahead of the sanitary sewer
• Commercial laundry lint interception ahead of the sanitary sewer
• Below-ground installation by a licensed contractor per local plumbing code

Manufacturer Documents

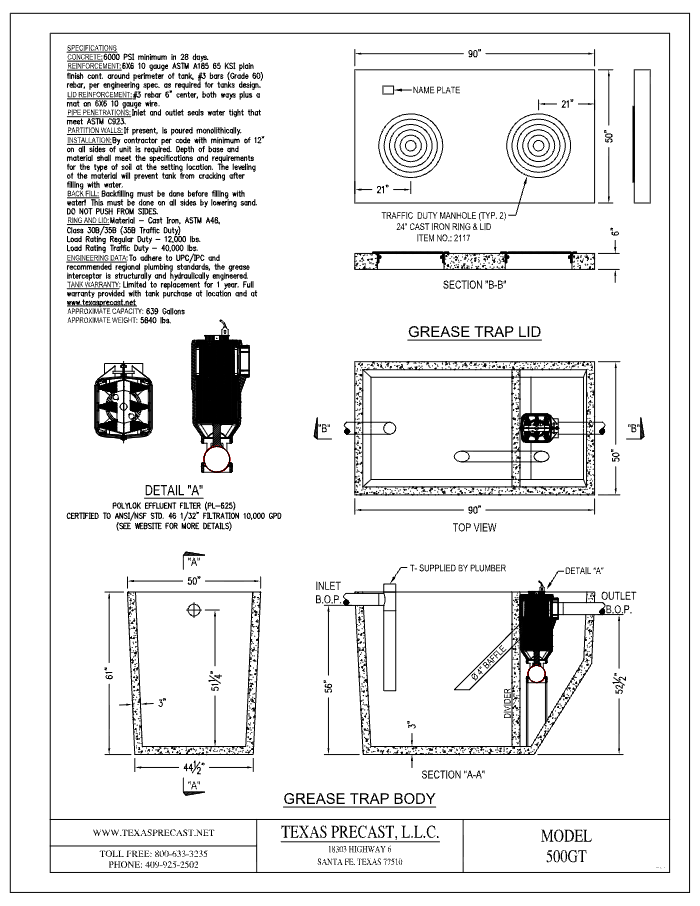

• Model 500GT dimensional drawing (PDF)

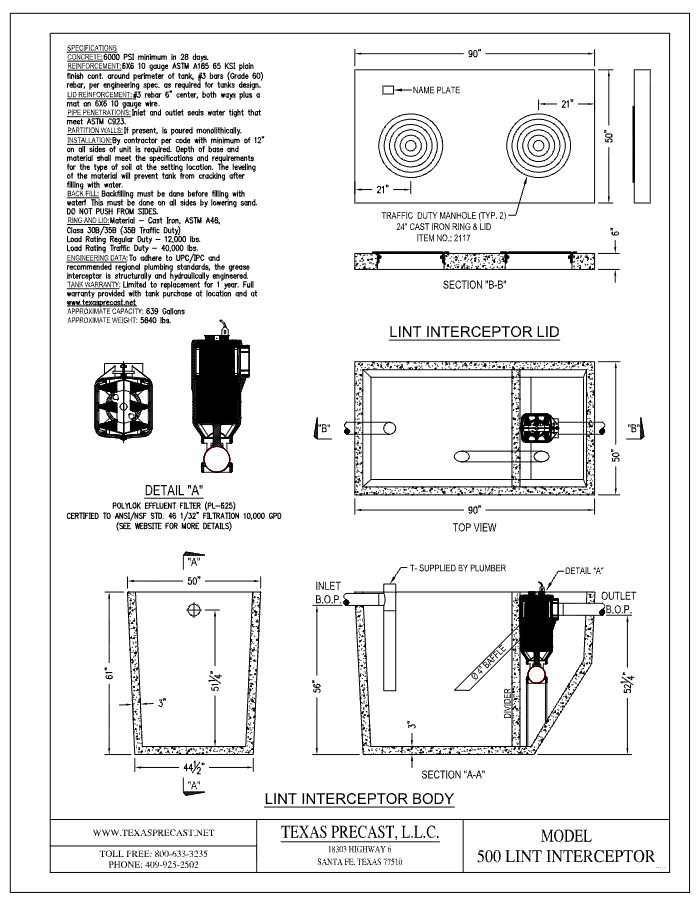

• Model 500 LINT INTERCEPTOR dimensional drawing (PDF)

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): TX

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Texas Precast warrants the tank against defects and is limited to replacement for 1 year. The full written warranty is provided with the tank at the time of purchase and at texasprecast.net.
