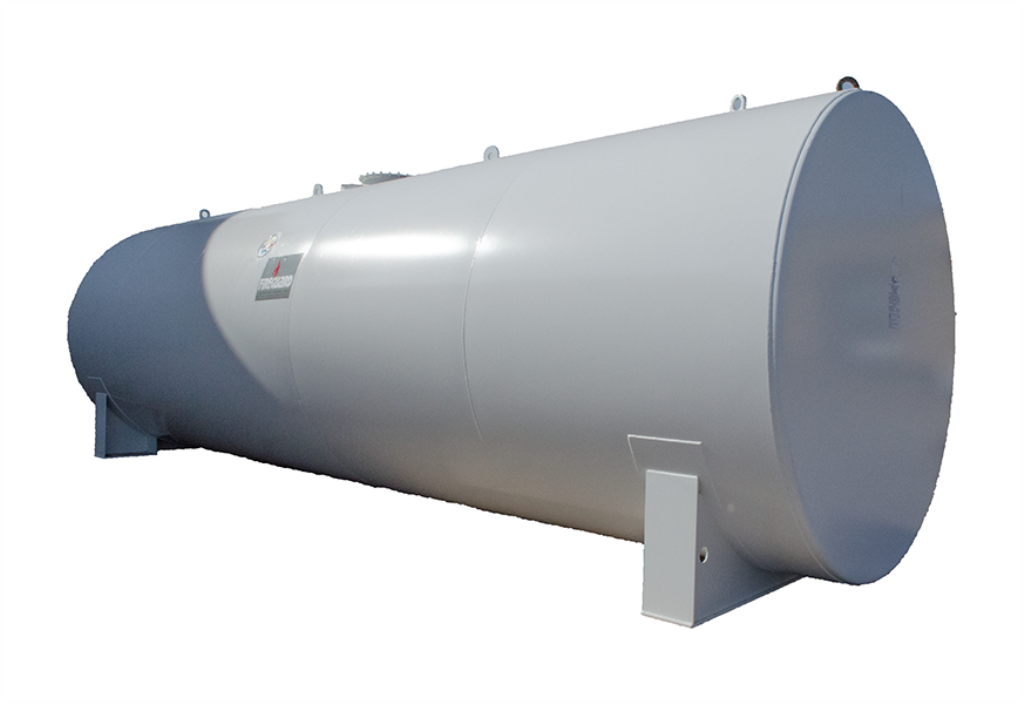

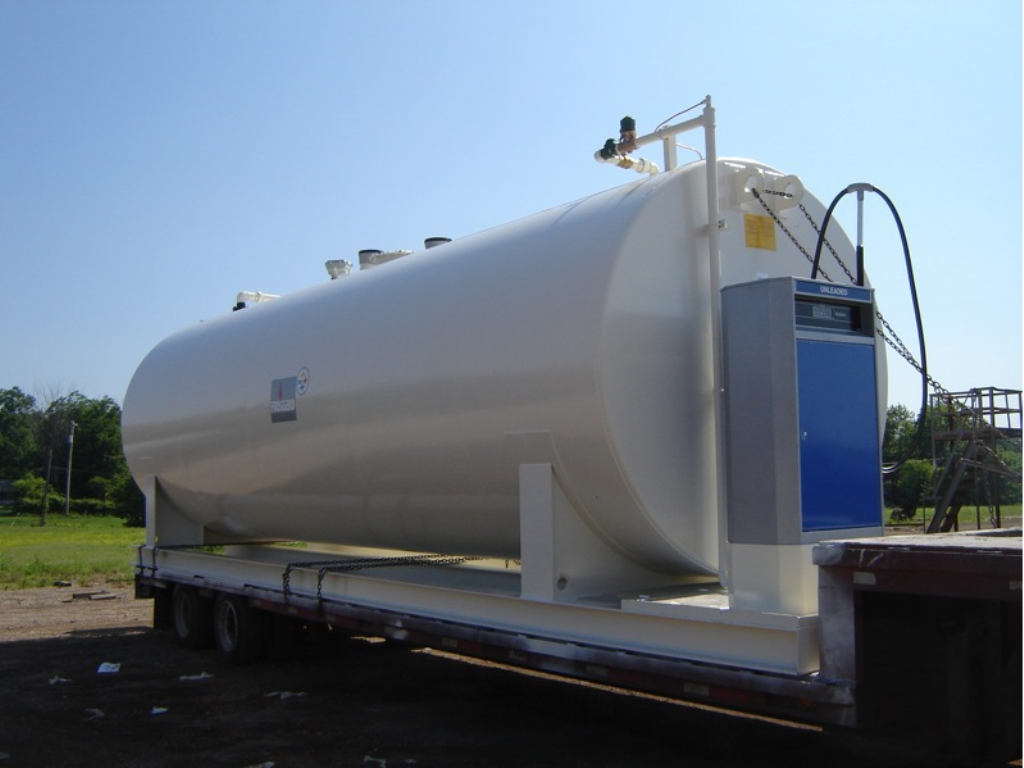

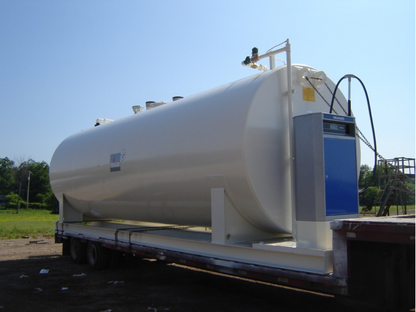

3000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB03000FGD06407G)

The 3000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB03000FGD06407G) is a large-capacity, fire-protected aboveground fuel storage solution engineered for demanding commercial, industrial, and fleet fueling operations. Built and certified to UL 2085 standards, this tank provides advanced fire resistance, secondary containment, and long-term durability for high-volume regulated fuel storage applications.

Constructed with a thermally insulated double-wall Fireguard design, this cylindrical saddle tank delivers superior safety performance, structural strength, and environmental protection. It is manufactured in compliance with UL 142, NFPA 30, NFPA 30A, and STI SP001/SPFA standards, ensuring full regulatory alignment for aboveground fuel storage systems.

The heavy-duty saddle-mounted cylindrical configuration is designed for permanent aboveground installation in fuel terminals, industrial facilities, and large-scale distribution sites. Its high-capacity design supports continuous fueling operations while maintaining safe and efficient storage performance.

The interstitial space between the inner and outer walls allows for continuous leak detection monitoring, providing an added layer of safety and compliance assurance. Finished with a durable industrial protective coating system, the tank is built to withstand harsh environmental conditions and extended outdoor exposure.

Key Features

• UL 2085 Fireguard Certified Construction: Enhanced fire protection and secondary containment
• Dual Wall Thermally Insulated Design: Improves safety and environmental performance
• Extra-Large 3000 Gallon Capacity: Ideal for high-volume fuel storage and distribution systems
• Cylindrical Saddle Tank Configuration: Stable aboveground installation for permanent infrastructure
• UL 142, NFPA 30 & NFPA 30A Compliant: Meets industry safety and regulatory standards
• Enhanced Ballistic Resistance (UL 752 Level 9): Increased structural protection in critical environments
• Interstitial Leak Detection Capability: Continuous monitoring between tank walls
• Compatible with Multiple Fuels: Suitable for diesel, gasoline, biodiesel, ethanol blends, and other approved fuels
• Industrial Grade Construction: Built for long-term commercial and fleet fueling operations
• 30-Year Limited Warranty: Backed by STI/SPFA-certified manufacturing standards

Specifications

• Part Number: NB03000FGD06407G
• Tank Capacity: 3000 Gallons
• Tank Style: Dual Wall Fireguard Cylindrical Saddle Tank
• Inner Dimensions: 216″ L × 64″ W × 64″ H
• Outer Dimensions: 228″ L × 70″ W × 70″ H
• Approximate Weight: 10,300 lbs
• Construction Material: Heavy-Duty Steel (Dual Wall Insulated)
• Compliance: UL 2085, UL 142, NFPA 30, NFPA 30A, STI SP001/SPFA
• Configuration: Aboveground Fire-Protected Cylindrical Saddle Tank

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: Ships Within 5 business days

• Ships From (State): Delano, MN - 55328

Products are subject to freight shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Each tank is manufactured under strict third-party quality control inspection programs and built in the USA using high-quality materials for long-term industrial reliability.

Warranty Information

Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.

Price Match Guarantee

If you find the 3000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB03000FGD06407G) at a lower price from an authorized distributor within 6 months of purchase, we will match the price and refund the difference.

Contact: info@tanksupplydirect.com
