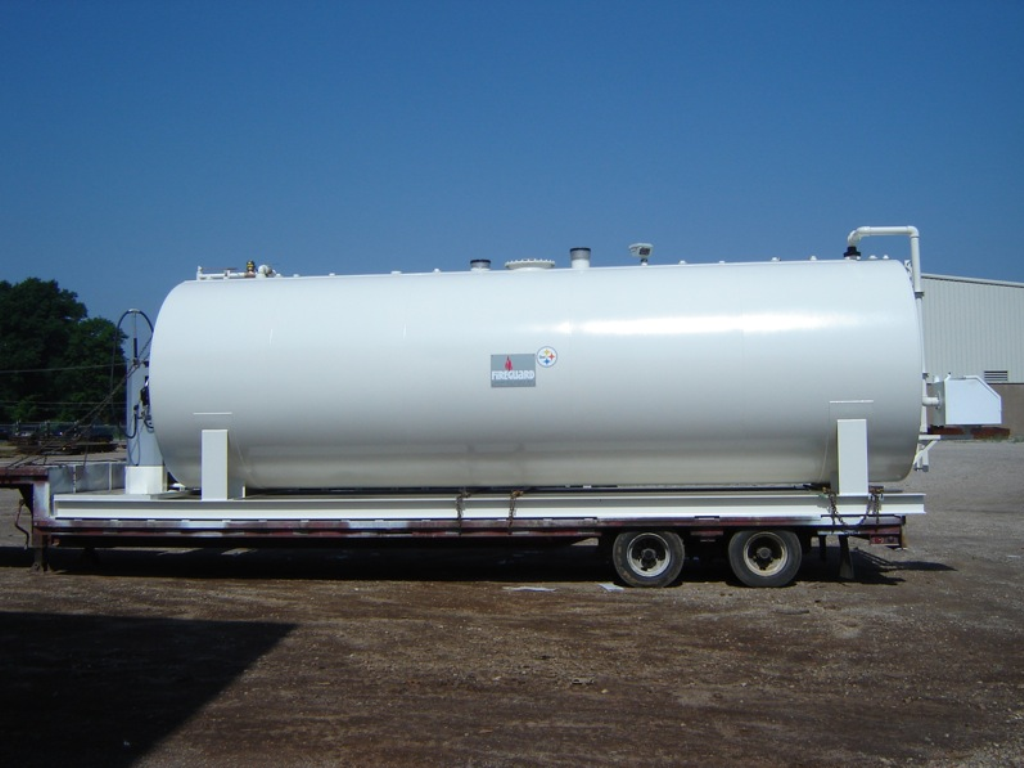

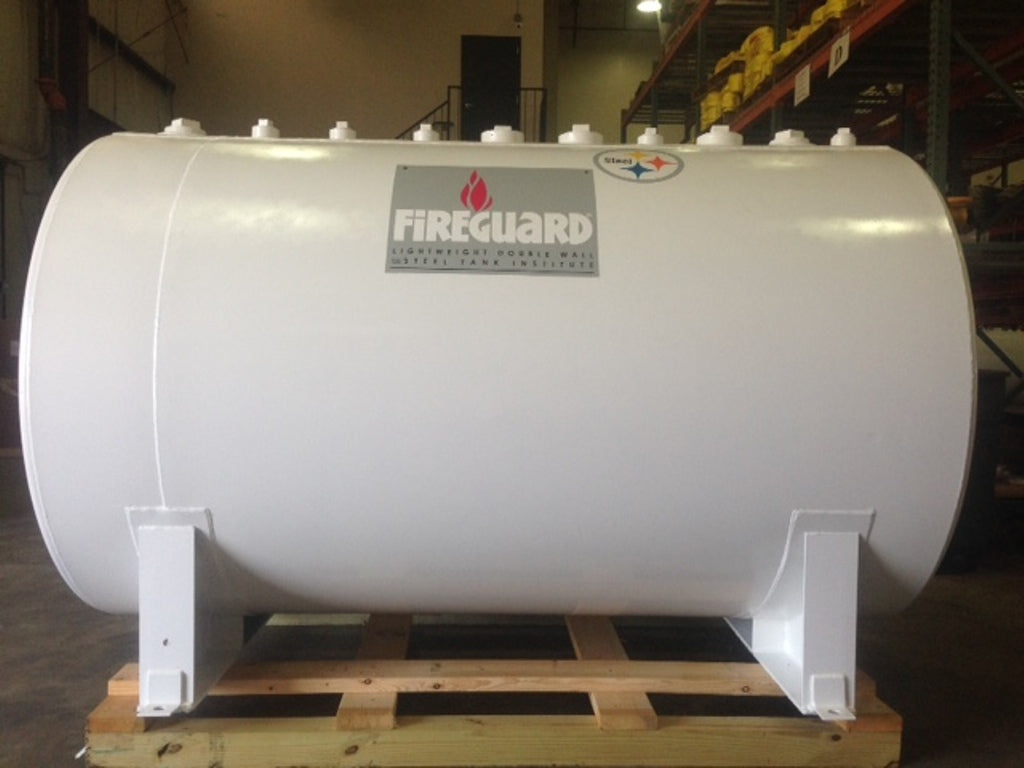

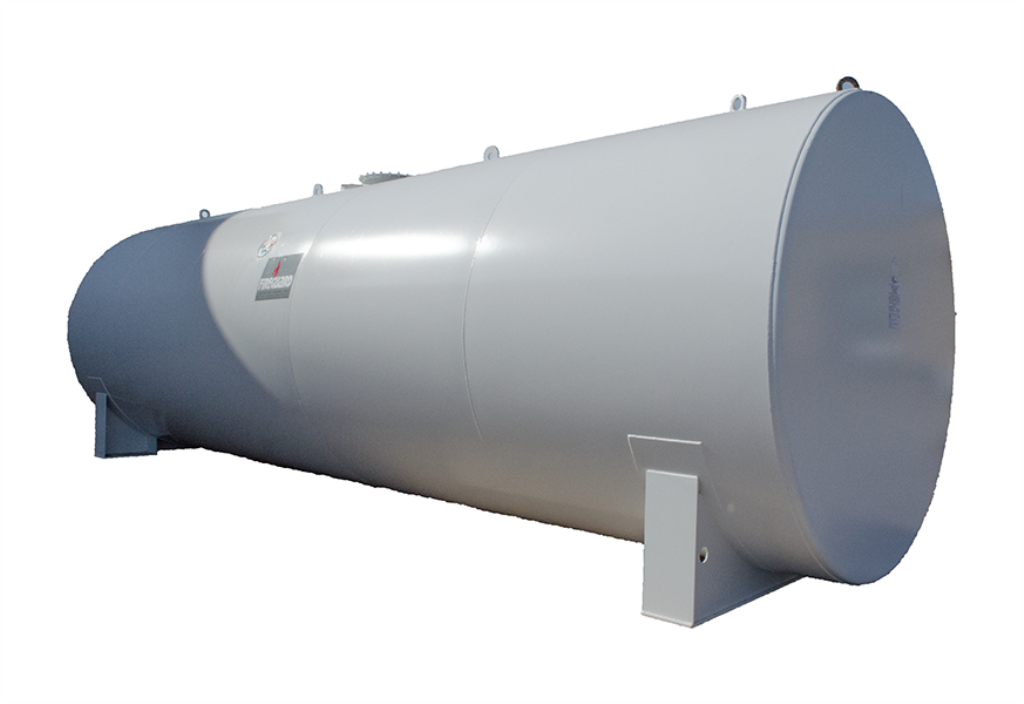

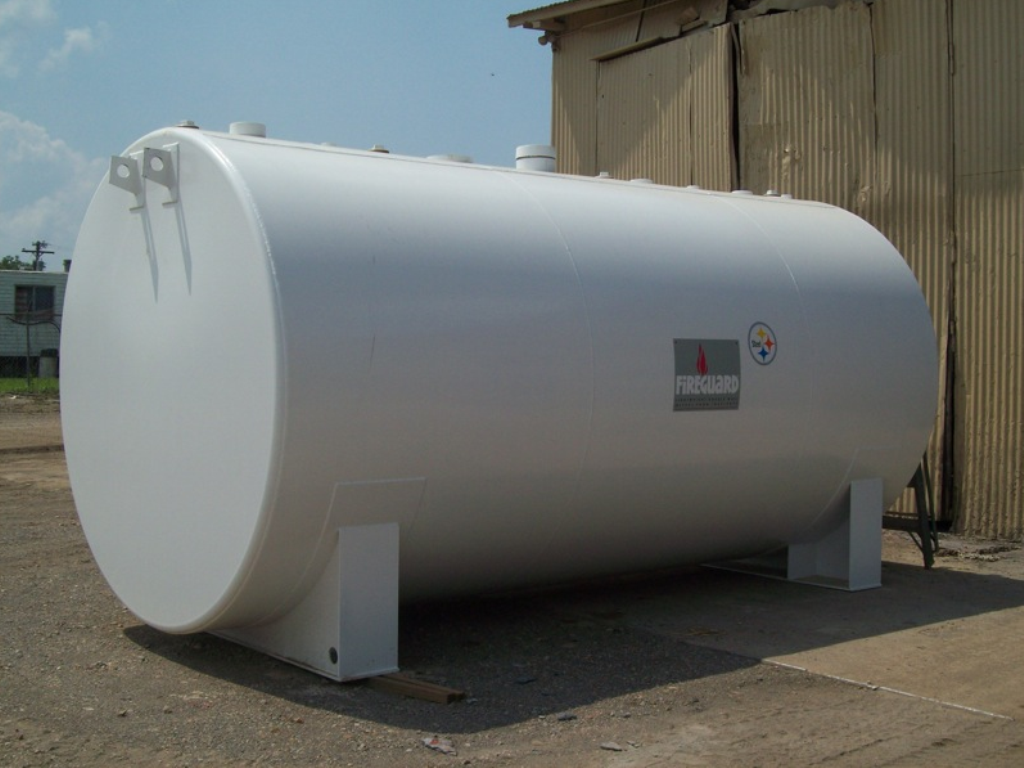

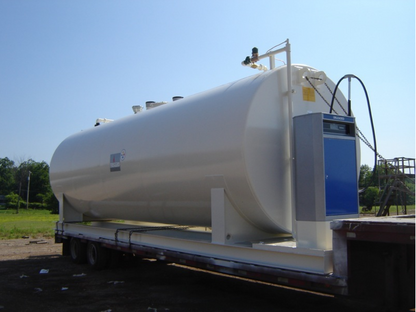

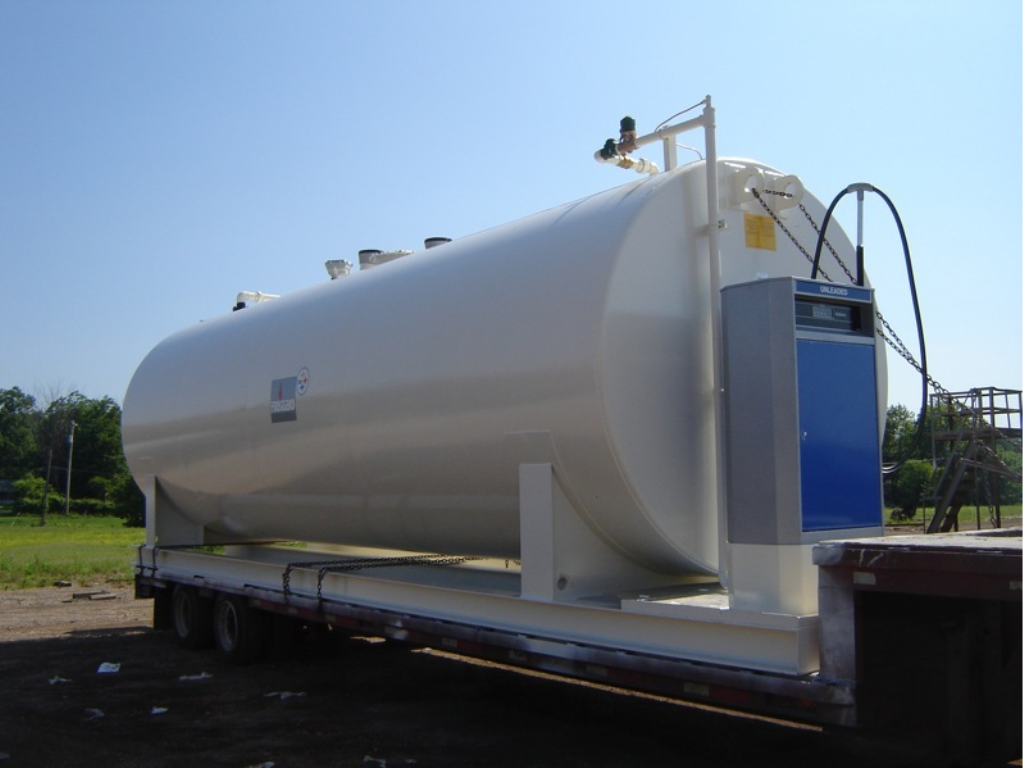

20000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB20000FGD120250)

The 20000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB20000FGD120250) is an ultra-high-capacity, fire-protected aboveground fuel storage solution designed for the most demanding commercial, industrial, and fuel distribution operations. Built and certified to UL 2085 standards, this tank delivers maximum fire resistance, secondary containment, and long-term durability for mission-critical bulk fuel storage applications.

Constructed with a thermally insulated double-wall Fireguard design, this cylindrical saddle tank provides industry-leading safety performance, structural strength, and environmental protection. It is manufactured in compliance with UL 142, NFPA 30, NFPA 30A, and STI SP001/SPFA standards, ensuring full regulatory compliance for aboveground fuel storage infrastructure.

The heavy-duty saddle-mounted cylindrical configuration is engineered for permanent installation at large-scale fuel terminals, distribution hubs, industrial complexes, and high-volume fueling facilities. Its massive capacity supports continuous operations while maintaining safe, efficient, and compliant fuel handling.

The interstitial space between the inner and outer walls allows for continuous leak detection monitoring, adding an additional layer of environmental safety and operational assurance. Finished with a durable industrial-grade protective coating system, the tank is designed for long-term outdoor exposure in extreme operating environments.

Key Features

• UL 2085 Fireguard Certified Construction: Advanced fire resistance and secondary containment
• Dual Wall Thermally Insulated Design: Enhanced safety and environmental protection
• Ultra-High 20,000 Gallon Capacity: Built for large-scale fuel storage and distribution systems
• Cylindrical Saddle Tank Configuration: Stable aboveground installation for permanent infrastructure
• UL 142, NFPA 30 & NFPA 30A Compliant: Meets strict fuel storage safety standards
• Enhanced Ballistic Resistance (UL 752 Level 9): Reinforced structural protection in critical environments
• Interstitial Leak Detection Capability: Continuous monitoring between tank walls
• Compatible with Multiple Fuels: Suitable for diesel, gasoline, biodiesel, ethanol blends, and other approved fuels
• Industrial Grade Construction: Designed for long-term commercial and fleet fueling operations
• 30-Year Limited Warranty: Backed by STI/SPFA-certified manufacturing standards

Specifications

• Part Number: NB20000FGD120250
• Tank Capacity: 20,000 Gallons
• Tank Style: Dual Wall Fireguard Cylindrical Saddle Tank
• Inner Dimensions: 408″ L × 120″ W × 120″ H
• Outer Dimensions: 420″ L × 126″ W × 126″ H
• Approximate Weight: 45,900 lbs
• Construction Material: Heavy-Duty Steel (Dual Wall Insulated)
• Compliance: UL 2085, UL 142, NFPA 30, NFPA 30A, STI SP001/SPFA
• Configuration: Aboveground Fire-Protected Cylindrical Saddle Tank

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: Ships Within 5 business days

• Ships From (State): Delano, MN - 55328

Products are subject to freight shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Each tank is manufactured under strict third-party quality control inspection programs and built in the USA using high-quality materials for long-term industrial reliability.

Warranty Information
