1000 Gallon Texas Precast Concrete Lint Interceptor (MPN 1000LT)

Description

The Texas Precast Model 1000LT is a 1000-gallon precast concrete lint interceptor cast at the Texas Precast plant in Santa Fe, Texas. It intercepts lint, fibre and washing solids from a commercial laundry's waste stream before they reach the sanitary sewer, where accumulated fibre mats and blocks the line. The tank is poured at a minimum 6,000 PSI compressive strength at 28 days and topped with two 24" traffic-duty cast iron manhole rings and lids. The manufacturer drawing lists an approximate working capacity of 1,296 gallons.

Key Features

• 6,000 PSI Precast Concrete: Poured monolithically at a minimum 6,000 PSI compressive strength at 28 days
• Traffic-Duty Access: Two 24" cast iron ASTM A48 Class 30B/35B rings and lids rated 40,000 lb traffic duty
• Polylok PL-625 Effluent Filter: Certified to ANSI/NSF Standard 46 with 1/32" filtration at 10,000 GPD
• Engineered to UPC/IPC: Structurally and hydraulically engineered to adhere to UPC/IPC and recommended regional plumbing standards
• Texas Manufactured: Cast in Santa Fe, Texas and shipped from the plant

Specifications

• Nominal Capacity: 1000 Gallons
• Approximate Capacity (per drawing): 1,296 Gallons
• Dimensions: 123" L x 63" W x 68" H (outside)
• Approximate Weight: 12,820 lbs
• Concrete: 6,000 PSI minimum at 28 days
• Ring and Lid: Cast iron, ASTM A48 Class 30B/35B - 24" traffic-duty manhole ring and lid, two per unit
• Load Rating: 12,000 lb regular duty / 40,000 lb traffic duty
• Effluent Filter: Polylok PL-625, ANSI/NSF Standard 46, 1/32" filtration, 10,000 GPD
• Manufacturer: Texas Precast, L.L.C. - Santa Fe, Texas
• Ships From: Texas (TX)
• Manufacturer Model: 1000LT

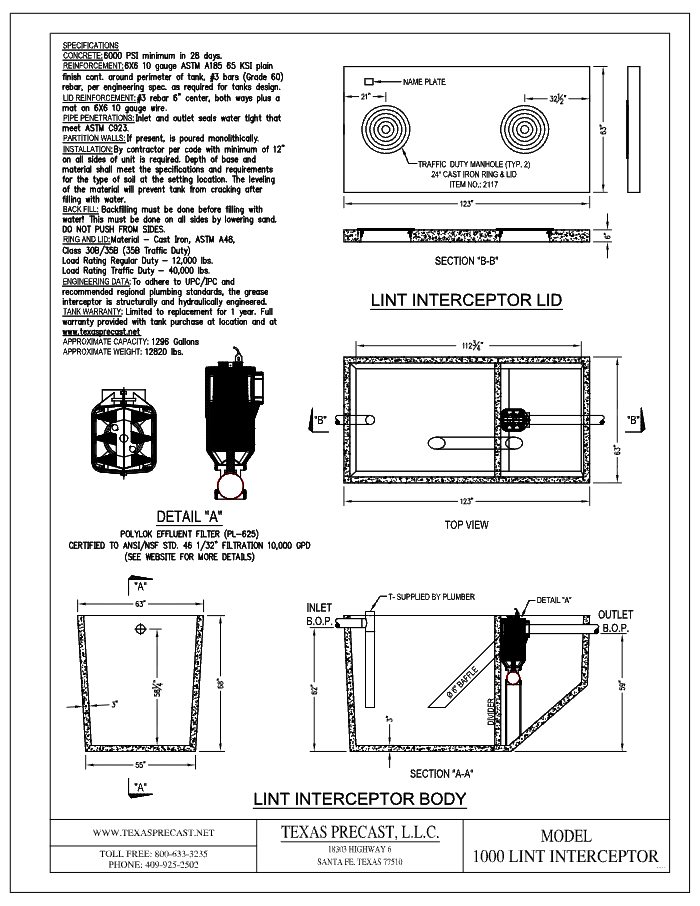

• Dimensional Drawing: 1000 LINT INTERCEPTOR drawing

Applications

• Commercial and industrial laundry discharge
• Hotel, hospital and correctional facility laundries
• Uniform and linen service facilities

Manufacturer Documents

• 1000 LINT INTERCEPTOR drawing (PDF)

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): TX

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Texas Precast warrants the tank against defects and is limited to replacement for 1 year. The full written warranty is provided with the tank at the time of purchase and at texasprecast.net.
