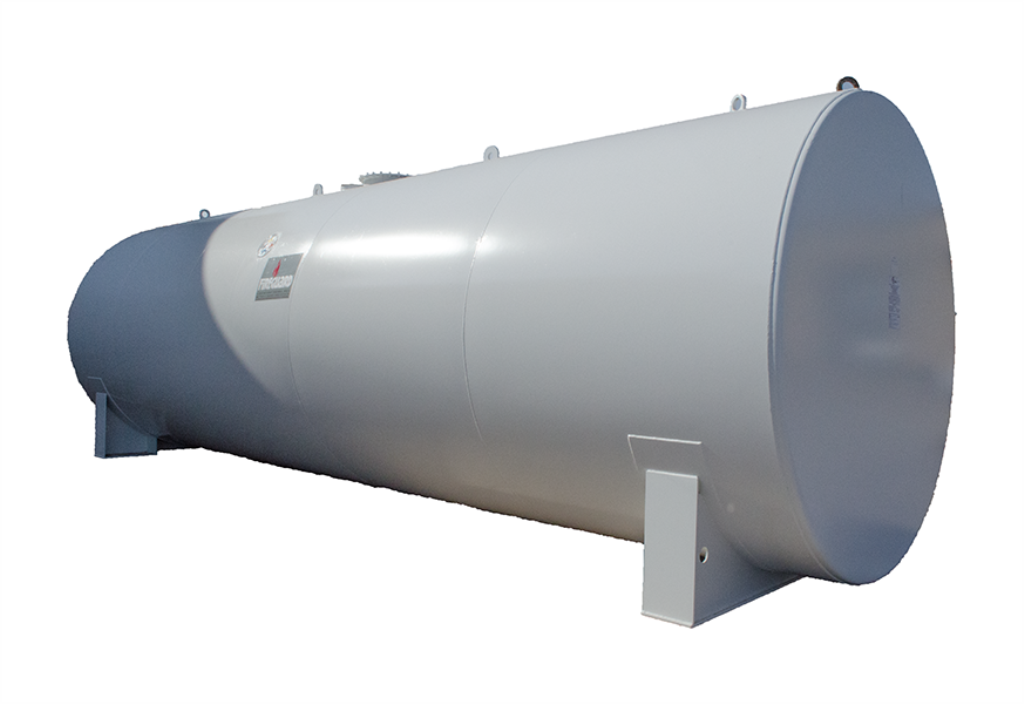

1000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB01000FGD04810G)

The 1000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB01000FGD04810G) is a high-capacity, fire-protected aboveground storage solution designed for demanding commercial, industrial, and fleet fueling applications. Engineered and certified to meet UL 2085 standards, this tank delivers superior fire resistance, secondary containment, and long-term durability for regulated fuel storage environments.

Built with a thermally insulated double-wall Fireguard construction, this cylindrical saddle tank provides enhanced safety and environmental protection while maintaining structural strength for permanent aboveground installations. It is designed in accordance with UL 142, NFPA 30, NFPA 30A, and STI SP001/SPFA standards, ensuring compliance with industry-leading safety and performance requirements.

The saddle-mounted cylindrical design provides excellent stability and support for large-scale fuel storage systems. Its heavy-duty steel construction and precision fabrication allow for reliable long-term operation in commercial fueling stations, industrial yards, and remote fuel distribution sites.

The interstitial space between tank walls allows for continuous leak detection monitoring, adding an additional layer of safety and compliance assurance. Finished with a durable industrial coating system, the tank is built to withstand harsh environmental conditions and extended outdoor exposure.

Key Features

• UL 2085 Fireguard Certified Construction: Provides enhanced fire protection and secondary containment
• Dual Wall Thermally Insulated Design: Improves safety and environmental performance
• Cylindrical Saddle Tank Configuration: Stable aboveground mounting for permanent installations
• UL 142, NFPA 30 & NFPA 30A Compliant: Meets major fuel storage safety standards
• Enhanced Ballistic Resistance (UL 752 Level 9): Increased structural protection in high-risk environments
• Interstitial Leak Detection Capability: Allows continuous monitoring between tank walls
• Compatible with Multiple Fuels: Suitable for gasoline, diesel, biodiesel, ethanol blends, and other approved fuels
• Industrial Grade Construction: Designed for long-term commercial and fleet fueling operations
• 30-Year Limited Warranty: Backed by STI/SPFA-certified manufacturing standards

Specifications

• Part Number: NB01000FGD04810G
• Tank Capacity: 1000 Gallons
• Tank Style: Dual Wall Fireguard Cylindrical Saddle Tank
• Inner Dimensions: 132″ L × 48″ W × 48″ H (10 Gauge)
• Outer Dimensions: 144″ L × 54″ W × 54″ H (10 Gauge)
• Approximate Weight: 4,800 lbs
• Construction Material: Heavy-Duty Steel (Dual Wall Insulated)
• Compliance: UL 2085, UL 142, NFPA 30, NFPA 30A, STI SP001/SPFA
• Configuration: Aboveground Fire-Protected Cylindrical Saddle Tank

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: Ships Within 5 business days

• Ships From (State): Delano, MN - 55328

Products are subject to freight shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Each tank is manufactured under strict third-party quality control inspection programs and built in the USA using high-quality materials for long-term commercial reliability.
