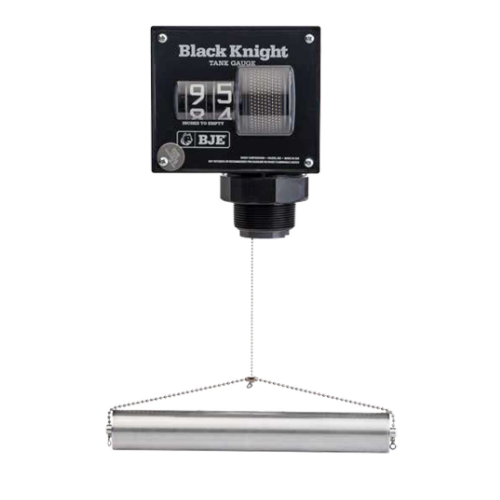

Newberry Fuel Gauge - Tanks Up to 99" Tall (SKU: BLKKG99)

Description

This mechanical direct-drive liquid level gauge serves tanks up to 99 inches tall. An oversized aluminum float hangs on a nickel-plated brass ball chain inside the tank; as the level drops, the direct-drive mechanism turns a large-number display that reads down from 99 inches to 0. The gauge threads into a 2-inch NPT tank opening and includes a swivel so the head can be rotated to face the operator after installation. It is rated for oil, waste oil, diesel fuel, antifreeze and other high flash-point liquids. Newberry supplies this as the Husky BJE Black Knight.

Key Features

• One gauge to 99 inches: A single gauge accommodates tanks up to 99 in and reads from 99 in down to 0.
• Large number display: Large numerals descend as the fluid level drops for easy reading at a distance.
• Direct drive: Direct-drive mechanism - no electronics or power required.
• Anti-tangle float: Oversized aluminum float rotates to prevent chain entanglement.
• Post-install swivel: A swivel allows the gauge to be oriented after installation.
• 2 inch NPT mount: Threads into a standard 2 inch NPT tank fitting.

Specifications

• Tank height capacity: Up to 99 in
• Measuring range: 99 in to 0 in
• Tank connection: 2 in NPT
• Chain: Nickel-plated brass, #2 ball chain
• Float: Oversized aluminum
• Housing: Molded housing
• Approved fluids: Oil, waste oil, diesel fuel, antifreeze and other high flash-point liquids
• Approximate dimensions: 10.7 in H x 7.7 in W x 6 in D
• Shipping weight: 3.5 lb
• Component manufacturer: Husky Corporation (BJE brand)
• Component model: Black Knight 99 in LLG, part 007600
• Supplied by: Newberry Tanks
• Ships From: AR

Applications

• Level monitoring on tall vertical above-ground fuel, lube and waste-oil tanks up to 99 in deep
• Shop and fleet lube-oil tanks where a large, readable dial is needed from the floor
• Antifreeze and high flash-point fluid tanks needing a non-electric gauge

Manufacturer Documents

• Husky BJE Black Knight Gauge Specification Sheet

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): AR

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage on tank accessories is provided by the component manufacturer and varies by product. Newberry's one-year limited warranty is written to cover the tank itself. For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com.
