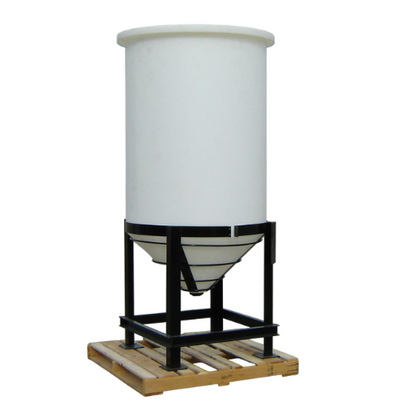

475 Gallon Custom Roto-Mold Open Top Plastic Cone Bottom Tank (MPN 475 OTCB)

Description

The 475 Gallon Open Top Cone Tank (Part No. 475OTCB) is engineered for dependable liquid storage, handling, and efficient drainage. With a 60-inch diameter and 53-inch height, this tank is an excellent choice for applications requiring FDA-compliant food-grade storage, as well as agricultural and industrial use. The open-top design offers convenient access for mixing, inspection, or cleaning tasks, while the 30° cone bottom ensures nearly complete drainage.

Manufactured from UV-stabilized, FDA-approved polyethylene, this tank is built to perform in both indoor and outdoor environments, providing long-term durability and safety for a wide range of liquids.

Key Features

• Efficient Drainage: 30° cone bottom design ensures optimal discharge of contents with minimal residue.
• Heavy-Duty Polyethylene Construction: FDA-approved and ANSI/NSF 61 certified for potable water and consumable liquids.
• UV-Stabilized for Outdoor Use: Built to withstand direct sunlight and harsh environmental conditions.
• Robust Outlet Fitting: Equipped with a 2" polypropylene female NPT bulkhead for secure and easy drainage connections.
• Open-Top Access: Ideal for batch mixing, cleaning, or applications requiring frequent access.
• Specific Gravity Rating of 1.7: Suitable for storing heavier liquids in demanding industrial environments.

Specifications

• Capacity: 475 Gallons

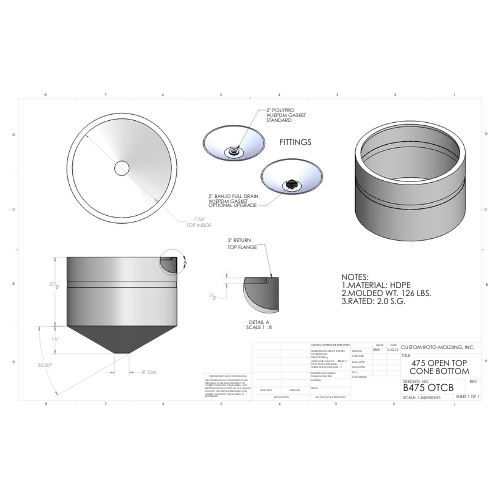

• Dimensions: 60" Diameter x 53" Height
• Weight: 126 lbs (Shipping Weight: 176 lbs)
• Lid Type: Open Top
• Outlet: 2" Polypropylene Female NPT Bulkhead Fitting
• Material: UV-Stabilized Polyethylene (FDA Approved, ANSI/NSF 61 Compliant)
• Maximum Specific Gravity: 1.7
• Maximum Temperature: 120°F (48°C)
• Color: Natural White (Translucent)
• Drainage: 30° Cone Bottom
• Usage: Above-Ground, Stationary
• Stand Requirement: Bands required (sold separately)
• Pressurization: Not intended for use in pressurized systems
• Origin: USA

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: 4-5 Week Lead Time

• Ships From (State): ID


Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Each tank is manufactured and assembled in the USA using high-quality materials and strict quality control standards—built for long-term, dependable use in demanding applications.

Warranty Information

Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.

Price Match Guarantee

At Tank Supply Direct, we’re committed to providing the best value. If you find the same 475 Gallon Open Top Cone Tank at a lower price from an authorized online retailer within six months of purchase, we’ll match the price.

Contact: info@tanksupplydirect.com
