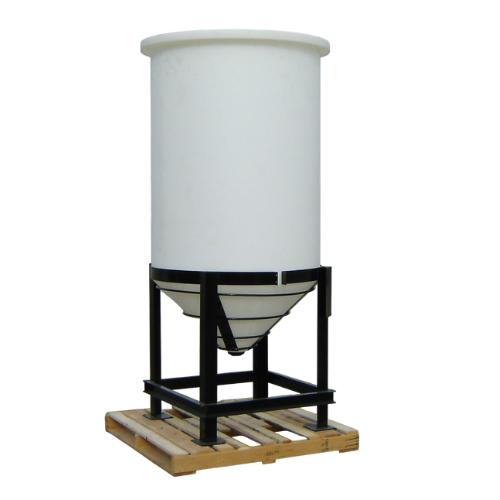

190 Gallon Custom Roto-Mold Open Top Plastic Cone Bottom Tank (MPN 190 OTCB)

Description

The 190 Gallon Open Top Cone Tank (Part No. 190OTCB) is a durable and efficient solution for open-top liquid storage and full-drain applications. With a compact 30-inch diameter and tall 72-inch height, this tank is ideal for industrial, agricultural, and food-grade environments where maximum drainage and easy access are critical. The 30-degree cone bottom ensures up to 99% drainage efficiency, with an optional upgrade available for complete 100% full drain performance.

Manufactured by Custom Roto-Molding, this tank is constructed from FDA-approved, UV-stabilized polyethylene and certified to ANSI/NSF 61 standards—making it suitable for both indoor and outdoor use, as well as potable water handling. Its open-top design allows for direct filling, inspection, and cleaning.

Key Features

• Efficient Drainage: The steep 30-degree cone bottom ensures 99% drainability; optional full-drain outlet upgrade available for complete discharge.
• Durable Construction: Crafted from high-grade polyethylene resin that meets FDA and ANSI/NSF 61 requirements for food-safe and potable liquid storage.
• UV Stabilized: Designed with UV inhibitors to withstand sun exposure and extend outdoor durability.
• Open Top Access: Ideal for processes requiring manual filling, cleaning, or mixing—great for batch operations.
• Translucent Design: Natural white tank body allows for quick visual level checks without disassembly.
• Heavy-Duty Capability: Rated for up to 1.7 specific gravity, making it suitable for storing denser liquids like fertilizers and brine.
• Multi-Use Applications: Excellent for industrial process fluids, agricultural inputs, food and beverage storage, and wastewater treatment systems.

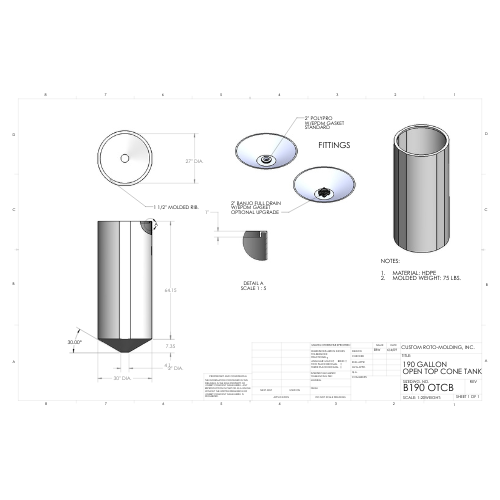

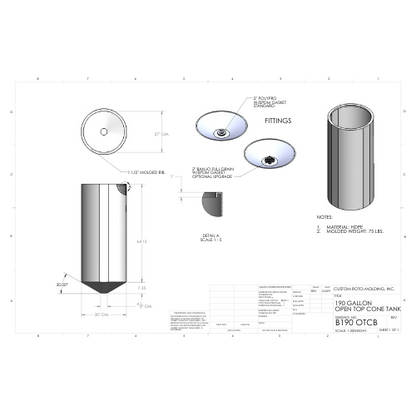

Specifications

• Capacity: 190 Gallons
• Dimensions: 30" Diameter x 72" Height
• Weight: 75 lbs (Shipping Weight: 125 lbs)
• Lid Type: Open Top
• Outlet: 1-1/4" Polypropylene Female NPT Bulkhead Fitting
• Material: UV-Stabilized Polyethylene (FDA Approved, ANSI/NSF 61 Compliant)
• Maximum Specific Gravity: 1.7
• Maximum Temperature: 120°F (48°C)
• Color: Natural White (Translucent)
• Drainage: 30° Cone Bottom
• Usage: Above-Ground, Stationary
• Stand Requirement: Yes (bands sold separately)
• Pressurization: Not for use in pressurized systems
• Origin: USA

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: 4-5 Week Lead Time

• Ships From (State): ID


Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Each tank is manufactured and assembled in the USA using high-quality materials and strict quality control standards—built for long-term, dependable use in demanding applications.

Warranty Information

Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.

Price Match Guarantee

At Tank Supply Direct, we’re committed to providing the best value. If you find the same 190 Gallon Open Top Cone Tank at a lower price from an authorized online retailer within six months of purchase, we’ll match the price.

Contact: info@tanksupplydirect.com
