Rhino Tuff 3:1 Pump Fireball 225 Pneumatic Piston (MPN: RTT-4077)

Description

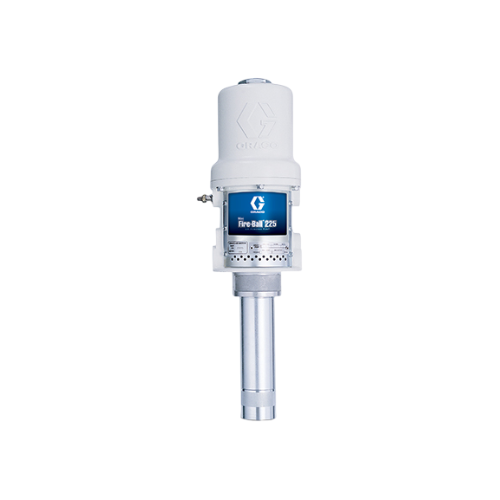

The GRACO 3:1 Mini Fire-Ball 225 Pump (MPN: 246775) is built for durability, efficiency, and long-term service in demanding environments. With a streamlined design featuring fewer moving parts, this air-operated pump reduces maintenance needs, minimizes downtime, and maximizes productivity—making it an excellent investment for busy automotive and industrial operations.

Designed for petroleum- and synthetic-based oils, the Mini Fire-Ball 225 delivers up to 1.84 gallons per minute at 80 cycles per minute, while operating within a wide air pressure range of 40–180 psi. Its rugged build supports line lengths up to 250 feet and servicing 1 to 2 dispense points, making it ideal for both centralized and point-of-use installations.

Built with premium steel, aluminum, Buna-N, polyurethane, and Rulon®C wetted components, this pump is engineered for reliability in automotive dealerships, tire shops, mobile lube trucks, quick lube bays, and industrial plants. Bung adapter not included.

Key Features

• Heavy-Duty Lubrication Pump: Designed for petroleum and synthetic-based oils in high-demand service environments.
• 3:1 Fluid Pressure Ratio: Delivers up to 540 psi for powerful and controlled oil dispensing.
• Efficient Design: Fewer moving parts reduce wear and extend service life.
• Wide Operating Range: Functions between 40–180 psi; compatible with most shop air systems.
• Optimized for Long Lines: Supports line lengths up to 250 feet; consult for proper sizing.
• Supports 1–2 Dispense Points: Suitable for mobile or centralized systems.
• High Volume Output: Up to 1.84 GPM at 80 cycles/min with 43.5 cycles per gallon.
• Durable Wetted Components: Built with steel, aluminum, polyurethane, and Rulon®C for long-lasting performance.


Additional Information

• Pump Ratio: 3:1
• Cycles per Gallon: 43.5 (11.4 liters)
• Fluid Flow Rate: 1.84 GPM @ 80 cycles/min
• Maximum Fluid Pressure: 540 psi (37 bar)
• Air Operating Range: 40–180 psi (2.8–12 bar)
• Air Motor Diameter: 2.25 in (57.2 mm)
• Air Consumption @ 100 psi / 80 cpm: 8.5 scfm (0.242 m³/min @ 7.9 lpm)
• Air Inlet Port: 3/8” NPT (F)
• Fluid Inlet Port: 1-1/2” NPT (F)
• Fluid Outlet Port: 1/2” NPT (F)
• Line Length Capacity: Up to 250 ft (76.2 m); consult for proper sizing
• Dispense Points Supported: 1–2
• Annual Fluid Volume Capacity: Up to 35,500 gal (132,000 l)
• Wetted Materials: Steel, Buna-N, Polyurethane, Aluminum, Rulon®C
• Typical Applications: Automotive dealerships, tire shops, quick lubes, transmission centers, industrial plants, mobile lube trucks
• Fluid Compatibility: Petroleum- and synthetic-based oils
• Manufacturer Part Number: 246775
• Note: Bung adapter not included


Shipping & Warranty

This product ships FOB from Idaho (Zip Code: 83605). Depending on quantity and destination, it may ship via standard ground or LTL freight. For bulk orders or custom configurations, contact our team for assistance.

Covered by a 1-Year Manufacturer’s Warranty from GRACO, protecting against defects in materials and workmanship under standard use conditions.

Price Match Guarantee

If you find the GRACO Mini Fire-Ball 225 Pump (MPN: 246775) listed at a lower price by an authorized dealer within 6 months of purchase, we’ll match that price and refund the difference.

Contact: info@tanksupplydirect.com
