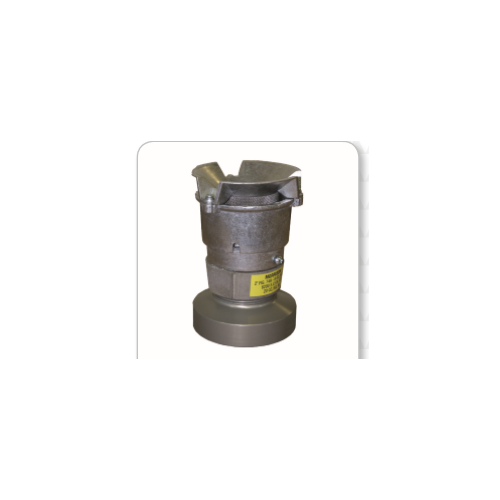

Newberry 2" Vacuum Vent (For Gas) (Less than 4000 gallons) (SKU: VV2749)

Description

This 2-inch pressure-vacuum vent installs on top of the tank's vent pipe and lets the tank breathe during filling and dispensing, then seals when pressure equalizes so vapor is held in the tank. That vapor conservation is why a P/V vent, rather than an open atmospheric vent, is the correct choice for gasoline. Vapors discharge up and outward per NFPA 30, and a 40-mesh stainless steel screen with an internal water drain protects the airway. Newberry supplies this vent as the Morrison Bros. FIG 749, which the manufacturer restricts to motor fueling and low-capacity flow.

Key Features

• Vapor conservation: Poppets seal the tank when pressure equalizes, holding gasoline vapor in.
• NFPA 30 discharge: Vents vapors up and outward per NFPA 30.
• 40-mesh screen: 40-mesh stainless steel screen prevents debris and insects from entering.
• Internal drainage: Integrated internal drain channels water away from the airway.
• CARB and EPA compliance: Carries CARB executive orders and supports EPA 40 CFR Part 63 gasoline dispensing requirements.
• Anodized aluminum: Anodized aluminum body and hood with a brass vacuum poppet.

Specifications

• Size: 2 in
• Vent type: Pressure-vacuum (P/V)
• Connection: NPSM, slip-on or BSP
• Body and hood material: Anodized aluminum
• Pressure poppet: Anodized aluminum
• Vacuum poppet: Brass
• Body seal: Buna-N
• Set screws: Zinc-plated steel
• Pressure setting range: 8.0 - 12.0 oz per sq in
• Vacuum setting range: 0.50 - 8.0 oz per sq in
• Venting capacity: 6,200 - 7,500 SCFH
• Approvals: CARB 95-14, 95-15, 96-19; EPA 40 CFR Part 63
• Use restriction: Restricted by the manufacturer to motor fueling and low-capacity flow
• Recommended for: Gasoline - tanks under 4,000 gallons
• Component manufacturer: Morrison Bros. Co.
• Component model: FIG 749
• Supplied by: Newberry Tanks
• Ships From: AR

Applications

• Normal venting on smaller gasoline above-ground and underground tanks at motor-fueling flow rates
• Gasoline dispensing facilities subject to EPA 40 CFR Part 63 vapor requirements
• California installations requiring a CARB-certified pressure-vacuum vent

Manufacturer Documents

• Morrison FIG 749 Specification Sheet

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): AR

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage on tank accessories is provided by the component manufacturer and varies by product. Newberry's one-year limited warranty is written to cover the tank itself. For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com.
