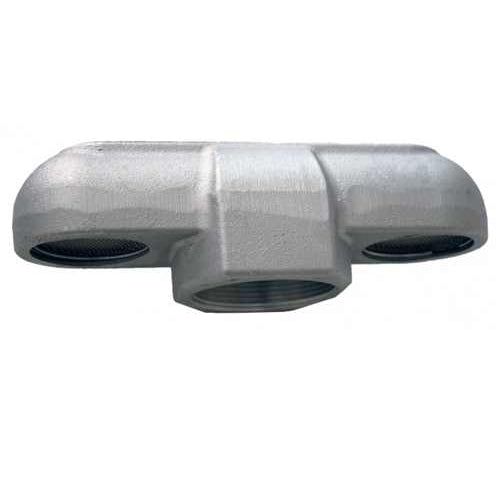

Newberry 3" Updraft Vent (For Diesel) (4,000 Gallon or more) (SKU: TV3)

Description

This 3-inch T-style double-outlet vent provides normal atmospheric venting for above-ground fuel oil and diesel storage tanks. Two outlet ports on either side of a central airway give the maximum venting area for the pipe size, and both openings are directed downward so the vent sheds rain rather than collecting it. A 20-mesh stainless steel screen at each outlet keeps debris and insects out of the vent line. Newberry lists this style as its double-outlet T vent and supplies it as the Morrison Bros. FIG 155.

Key Features

• Double outlet: Outlet ports on either side of the airway give maximum venting area.
• Rain resistant: Both openings are directed downward for a rain-resistant design.
• Screened: 20-mesh stainless steel screen helps keep debris and insects out of the airway.
• Aluminum body: Aluminum construction for outdoor above-ground service.
• Two mounting styles: Offered female NPT threaded (155) or slip-on with set screw (155S).
• Larger riser sizing: 3 inch body suits larger vent risers on higher-capacity tanks.

Specifications

• Size: 3 in
• Vent type: Atmospheric / open double-outlet T vent
• Thread: Female NPT (155); slip-on with set screw (155S)
• Body material: Aluminum
• Screen: 20 mesh stainless steel
• Set screws: Zinc-plated steel
• Weight: 2.50 lb
• Standards referenced: UL 142, NFPA 30, NFPA 30A, API 650
• Recommended for: Diesel and fuel oil - tanks 4,000 gallons and larger
• Component manufacturer: Morrison Bros. Co.
• Component model: FIG 155 / 155S, part 155-0600 AV
• Supplied by: Newberry Tanks
• Ships From: AR

Applications

• Normal atmospheric venting on UL-142 above-ground fuel oil and diesel storage tanks
• Larger-diameter vent risers where a downward-facing, rain-shedding open vent is preferred
• Paired with an emergency vent to meet both normal and emergency venting requirements

Manufacturer Documents

• Morrison FIG 155 Specification Sheet

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): AR

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage on tank accessories is provided by the component manufacturer and varies by product. Newberry's one-year limited warranty is written to cover the tank itself. For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com.
