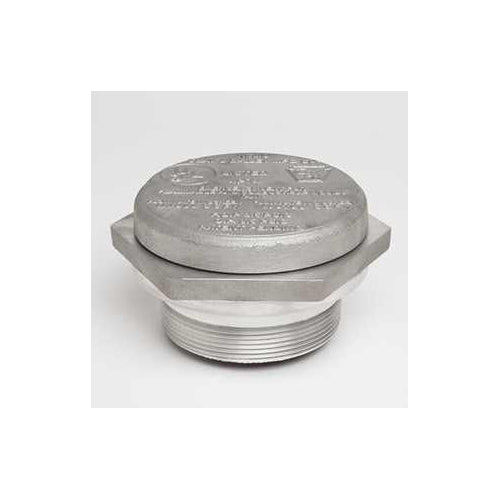

Newberry 6" Emergency Vent, Male Thread (SKU: EMV62448M)

Description

This 6 in emergency pressure relief vent is required safety equipment on a UL-142 above-ground storage tank. It is sized and set to relieve the rapid pressure rise caused by fire exposure so the tank does not over-pressurize and rupture, and it reseals afterwards. The vent threads directly into the tank's emergency vent bung on a male NPT body and is set to open at 8 oz per square inch. An emergency vent is used in addition to - never instead of - the tank's normal atmospheric or pressure-vacuum vent.

Key Features

• Fire-exposure relief: Relieves the rapid pressure rise of fire exposure to prevent tank rupture.
• 8 oz setting: Set to open at 8 oz per sq in (0.5 PSI).
• Reseals after relief: Closes and reseals once the overpressure condition passes.
• Male-thread mounting: Male NPT body threads directly into the tank's emergency vent bung.
• UL listed: UL listed for use on shop-fabricated above-ground storage tanks.
• Weather protection: Cover design protects the seat from weather and dust accumulation.

Specifications

• Size: 6 in
• Thread: Male NPT
• Pressure setting: 8 oz per sq in (0.5 PSI)
• Vent type: Emergency pressure relief - fire exposure
• Listings: UL listed
• Required companion: Must be used with a normal atmospheric or pressure-vacuum vent
• Venting capacity: Confirm with Tank Supply Direct for the exact brand shipped
• Supplied by: Newberry Tanks
• Ships From: AR

Applications

• Required emergency venting on UL-142 shop-fabricated above-ground diesel, gasoline and fuel oil tanks
• Generator base tanks and day tanks needing code-compliant fire-exposure relief
• Retrofit of an existing emergency vent bung where a male-threaded vent is specified

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): AR

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage on tank accessories is provided by the component manufacturer and varies by product. Newberry's one-year limited warranty is written to cover the tank itself. For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com.
