Newberry 2" DROP TUBE EXTENDER (SKU: DTEXTGA2)

Description

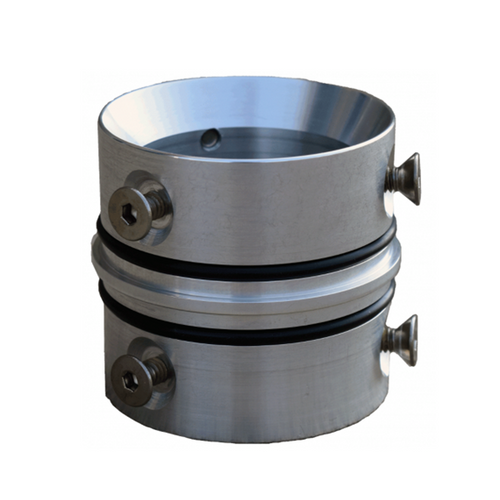

This 2-inch drop tube extender is an aluminum sleeve that joins two sections of drop tube end to end without disrupting the flow of liquid. It lets an installer build a drop tube to the exact depth of a tall tank from stock lengths, or repair a damaged tube, and supports up to 50 feet of combined tube. Newberry supplies this as a Morrison Bros. FIG 419-series extender and pairs it with the 2 inch by 6 foot aluminum drop tube on tanks 96 inches and taller.

Key Features

• Joins two tubes: Connects two sections of the same-diameter drop tube end to end.
• Uninterrupted flow: Joins the sections without disrupting the flow of liquid.
• Long combined runs: Supports up to 50 ft of combined drop tube length.
• Aluminum construction: Machined aluminum sleeve for corrosion-resistant service.
• Builds to exact depth: Lets an installer reach an exact tank depth from stocked tube lengths.
• Repair use: Also used to repair a damaged drop tube in place.

Specifications

• Nominal size: 2 in
• Function: Drop tube extender sleeve
• Material: Aluminum
• Maximum combined tube length: 50 ft
• Pairs with: 2 in x 6 ft aluminum drop tube (Morrison FIG 419)
• Component manufacturer: Morrison Bros. Co.
• Component model: FIG 419 series drop tube extender
• Supplied by: Newberry Tanks
• Ships From: AR

Applications

• Extending a drop tube on tanks 96 in and taller where a single 6 ft tube will not reach
• Building a drop tube to an exact depth from stocked lengths
• Repairing a damaged drop tube without replacing the full assembly

Manufacturer Documents

• Morrison FIG 419E Specification Sheet

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): AR

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage on tank accessories is provided by the component manufacturer and varies by product. Newberry's one-year limited warranty is written to cover the tank itself. For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com.
