180/180 Gallon Rhino Tuff Tanks Gravity Feed System No Valve (MPN: RTT-6880-NV)

Description

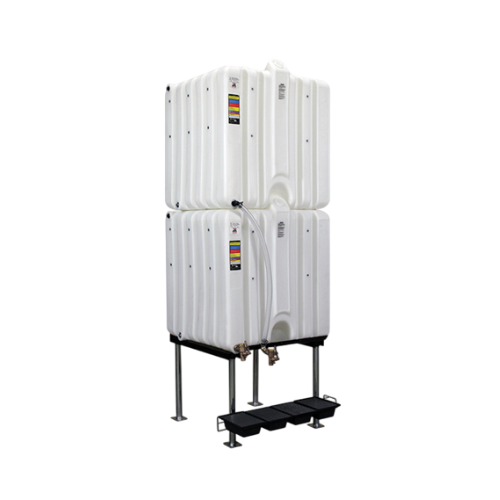

The 360 Gallon Stackable Fluid Storage System provides an efficient, modular solution for fluid storage and dispensing in industrial, agricultural, and commercial settings. This package includes two 180-gallon stackable tanks, a tank stand with 24″ legs, a drip tray kit, and a comprehensive accessory package designed for fast and flexible installation.

Constructed from natural virgin high-density polyethylene, these tanks offer excellent chemical resistance and durability. Featuring interlocking top and bottom ridges for secure stacking, molded-in 304 stainless steel drain fittings, and built-in site gauges, this system supports safe, accessible fluid management of oils, lubricants, DEF, and other compatible fluids.

Perfect for large-scale operations, the stackable design maximizes vertical storage while maintaining fluid visibility and dispensing convenience.

Key Features

• 360-Gallon Total Capacity: Includes two 180-gallon stackable tanks mounted on a tank stand with 24″ legs.
• Stackable Design: Interlocking ridges allow secure stacking without the need for brackets.
• Durable HDPE Construction: Made from natural virgin high-density polyethylene for superior chemical resistance and long service life.
• 304 Stainless Steel Drain Fittings: Industry’s only molded-in 1″ NPT stainless steel bushing at the drain opening, requiring no additional fittings.
• Integrated Site Gauge: Semi-transparent tank walls with molded-in fluid level indicators eliminate the need for external gauges.
• Multiple Port Openings:
  • 2″ top opening for pump or vent applications
  • 1″ opening for desiccant breather or remote fill
  • 2″ center fill opening for easy refilling
• Mounting Ready: Six molded-in metal inserts allow attachment of a side-mount pump plate (sold separately).
• Standard Footprint: Both tanks share a 3′ x 3′ base allowing stacking compatibility with other tanks in the series.
• No Conversion Brackets Needed: Stackable in any combination for maximum flexibility.


Package Includes

• Two (2) 180-Gallon Stackable Tanks
• Tank Stand with 24″ Legs
• Drip Tray Kit
• Accessory Package, including:
  • Braided Poly Tubing
  • Polyethylene Elbow with Barbed End
  • Polyethylene Union with Barbed End
  • 1″ Hose Clamps
  • 2 oz Tube of Thread Sealant
  • Elbow Kit with Nut for Stand


Additional Information

• Shipping Weight: 330 lbs
• Shipping Dimensions: 44″ L x 36″ W x 88″ H
• Assembled Dimensions: 36″ L x 42″ W x 107″ H
• Footprint: Standard 3′ x 3′
• Material: Natural Virgin HDPE
• Drain Fitting: Molded-in 304 Stainless Steel 1″ NPT Bushing
• Number of Tanks: 2
• Application: Oil, DEF, Lubricants, Non-Potable Fluids


Documents

RTT Spec Sheet - 500392

Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions

Shipping & Warranty

Ships FOB from Idaho (Zip Code: 83605), Freight Class 250. Liftgate service available upon request for residential or limited-access delivery locations.

Covered by a 1-Year Limited Warranty against defects in materials and workmanship under normal use conditions.
