120 Gallon Rhino Tuff Tanks Gravity Feed System No Valve (MPN: RTT-6200-NV)

Description

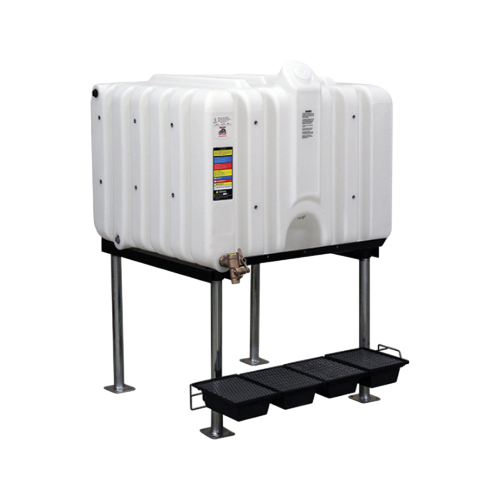

The 120 Gallon Stackable Fluid Storage System offers a versatile and space-efficient solution for fluid storage and dispensing in industrial, agricultural, and commercial environments. This system includes one 120-gallon stackable tank, a tank stand with 24″ legs, and a drip tray kit, providing all the essentials for easy installation and operation.

Manufactured from natural virgin high-density polyethylene, the tank ensures outstanding chemical resistance and durability. Its design features such as interlocking top and bottom ridges, molded-in 304 stainless steel drain fitting, built-in site gauge, and integrated mounting inserts make it ideal for managing oils, lubricants, DEF, and other compatible fluids safely and efficiently.

Perfect for single-tank applications or to be stacked with other sizes, this system helps maximize vertical space while maintaining fluid level visibility and safe dispensing.

Key Features

• 120-Gallon Capacity: One large, stackable tank mounted on a 24″ leg tank stand.
• Stackable Design: Interlocking ridges on top and bottom provide secure stacking with other tanks—no brackets required.
• High-Quality HDPE Construction: Made from natural virgin high-density polyethylene for chemical resistance and long-lasting use.
• 304 Stainless Steel Drain Fitting: Features the industry’s only molded-in 1″ NPT stainless steel bushing at the drain opening.
• Built-In Site Gauge: Semi-transparent tank body and molded-in level gauge eliminate the need for external fluid level indicators.
• Multiple Port Openings:
  • 2″ top opening for pump or vent applications
  • 1″ opening for desiccant breather or remote fill
  • 2″ center fill opening for easy access
• Mounting Ready: Six molded-in metal inserts enable installation of a side-mount pump plate (sold separately).
• Standard Footprint: The tank shares a 3′ x 3′ base with other sizes in the stackable series for easy integration.


Package Includes

• One (1) 120-Gallon Stackable Tank
• Tank Stand with 24″ Legs
• Drip Tray Kit


Additional Information

• Weight: 190 lbs
• Shipping Weight: 190 lbs
• Shipping Dimensions: 44″ L x 36″ W x 38″ H
• Assembled Dimensions: 36″ L x 42″ W x 56″ H
• Footprint: Standard 3′ x 3′
• Material: Natural Virgin HDPE
• Drain Fitting: Molded-in 304 Stainless Steel 1″ NPT Bushing
• Number of Tanks: 1
• Application: Oil, DEF, Lubricants, Non-Potable Fluids


Documents

RTT Spec Sheet - 500399

Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions

Shipping & Warranty

Ships FOB from Idaho (Zip Code: 83605), Freight Class 250. Liftgate service is available upon request for residential or limited-access delivery locations.

Covered by a 1-Year Limited Warranty against defects in materials and workmanship under normal use conditions.
