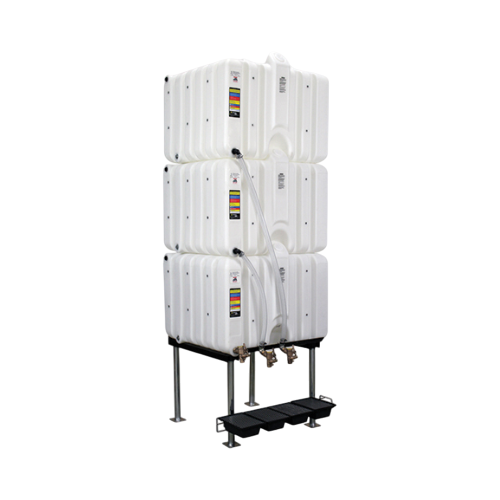

120/120/120 Gallon Rhino Tuff Tanks Gravity Feed System No Valve (MPN: RTT-6222-NV)

Description

The 360 Gallon Stackable Fluid Storage System provides a powerful and space-efficient solution for fluid storage and dispensing in industrial, agricultural, and commercial settings. This system includes three 120-gallon stackable tanks, a tank stand with 24″ legs, a drip tray kit, and a comprehensive accessory package, offering a complete setup for fast, reliable fluid management.

Built from natural virgin high-density polyethylene, each tank delivers exceptional chemical resistance and long-lasting durability. Key features like molded-in 304 stainless steel drain bushings, secure interlocking ridges, and built-in site gauges make it ideal for handling oils, lubricants, DEF, and other compatible fluids safely and efficiently.

Whether equipping a large workshop, fleet facility, or mobile service unit, this modular stackable system maximizes vertical storage space while ensuring easy fluid level monitoring and secure dispensing.

Key Features

• 360-Gallon Total Capacity: Includes three 120-gallon stackable tanks mounted on a heavy-duty tank stand with 24″ legs.
• Secure Stackable Design: Interlocking top and bottom ridges allow bracket-free, stable stacking.
• High-Quality HDPE Construction: Made from natural virgin high-density polyethylene for outstanding chemical resistance and durability.
• Molded Stainless Steel Drain Fittings: Features the industry’s only molded-in 304 stainless steel 1″ NPT bushing at the drain opening, eliminating the need for aftermarket fittings.
• Built-In Site Gauge: Semi-transparent tank material and molded-in fluid level indicators remove the need for external gauges.
• Multiple Access Ports:
  • 2″ top opening for pump or vent applications
  • 1″ opening for desiccant breather or remote fill
  • 2″ center fill opening for convenient refilling
• Mounting Flexibility: Six molded-in metal inserts facilitate attachment of a side-mount pump plate (sold separately).
• Standard Footprint: All tanks feature a 3′ x 3′ base, enabling stacking compatibility with other sizes.
• No Converting Brackets Needed: Stackable in any combination for maximum system flexibility.


Package Includes

• Three (3) 120-Gallon Stackable Tanks
• Tank Stand with 24″ Legs
• Drip Tray Kit
• Accessory Package, including:
  • Braided Poly Tubing
  • Polyethylene Elbow with Barbed End
  • Polyethylene Union with Barbed End
  • 1″ Hose Clamps
  • 2 oz Tube of Thread Sealant
  • Elbow Kit with Nut for Stand


Additional Information

• Shipping Weight: 330 lbs
• Shipping Dimensions: 44″ L x 36″ W x 90″ H
• Assembled Dimensions: 36″ L x 42″ W x 110″ H
• Footprint: Standard 3′ x 3′
• Material: Natural Virgin HDPE
• Drain Fitting: Molded-in 304 Stainless Steel 1″ NPT Bushing
• Number of Tanks: 3
• Application: Oil, DEF, Lubricants, Non-Potable Fluids


Documents

RTT Spec Sheet - 500388

Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions

Shipping & Warranty

Ships FOB from Idaho (Zip Code: 83605), Freight Class 250. Liftgate service available upon request for residential or limited-access delivery locations.

Covered by a 1-Year Limited Warranty against defects in materials and workmanship under normal use conditions.

Price Match Guarantee

If you find this 360 Gallon Stackable Fluid Storage System offered at a lower price from any authorized competitor within 6 months of purchase, we’ll match the price and refund the difference.
