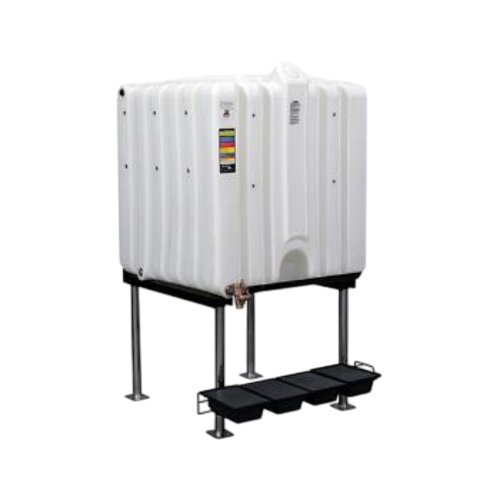

180 Gallon Rhino Tuff Tanks Complete Gravity Feed Tank System (MPN: RTT-6800)

Description

The Rhino 180 Gallon Gravity Feed Tank System offers a robust and reliable fluid storage solution designed for heavy-duty dispensing applications. With a single 180-gallon tank, this system provides ample capacity while maintaining a compact 3' x 3' footprint ideal for service shops, agricultural operations, and fleet maintenance.

Constructed from natural virgin high-density polyethylene (HDPE), this tank is built to withstand chemical exposure, impact, and the rigors of daily use. Featuring molded-in brass inserts for pump mounting, an integrated site gauge, and industry-exclusive molded-in brass 1" NPT bushing at the drain, the system delivers superior functionality and durability.

Key Features

• 180-Gallon Capacity: Single large tank for versatile fluid storage.
• Stackable Design: Interlocking ridges for secure stacking with other Rhino tanks.
• Included Accessories: Tank stand with 24" legs, drip tray kit, brass spring valves, and accessory package.
• Multiple Ports: 2" top opening for pump or vent, 1" port for desiccant breather or remote fill, and 2" center fill opening.
• Pump Mount Compatibility: Six molded-in brass inserts for easy pump plate installation.
• Exclusive Drain: Molded-in 1" NPT brass bushing for reliable drainage.
• Site Gauge: Molded-in, semi-transparent material allows visual fluid level monitoring.
• Durable Construction: Made from natural virgin HDPE for long-lasting chemical resistance.
• Standard Footprint: 3' x 3' footprint compatible with other Rhino Tuff Tanks.


Specifications

• Model: RTT-6800
• Manufacturer: Rhino Tuff Tanks
• Capacity: 180 Gallons
• Assembled Dimensions: 36" L x 42" W x 68" H
• Material: Natural virgin HDPE
• Top Openings: 2" for pump or vent
• Additional Openings: 1" for desiccant breather or remote fill, 2" center fill
• Drain Port: Molded-in 1" NPT brass bushing
• Pump Mounting: Six molded-in brass inserts
• Site Gauge: Molded-in, semi-transparent
• Footprint: Standard 3' x 3'
• Stackable: Yes, in combination with other Rhino tanks


Documents

Gravity Feed System Assembly Instructions

Gravity Feed System Assembly Video

Shipping & Warranty

Ships via LTL freight and is carefully packaged for safe delivery. Liftgate service is available upon request during checkout for locations without a loading dock or forklift.

This product is covered by a 1-Year Limited Warranty, protecting against defects in materials and workmanship under normal use.
