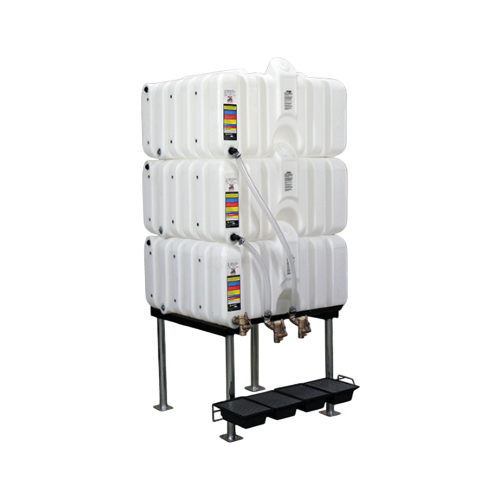

80/80/80 Gallon Rhino Tuff Tanks Gravity Feed System No Valve (MPN: RTT-6333-NV)

Description

The 240 Gallon Stackable Fluid Storage System is a robust, space-optimized solution built for effective fluid storage and dispensing in industrial, agricultural, and commercial operations. This complete system includes three interlocking 80-gallon stackable tanks, a durable tank stand with 24″ legs, a drip tray kit, and a comprehensive accessory package—everything needed for a fast, flexible setup.

Each tank is constructed from natural virgin high-density polyethylene, offering exceptional resistance to chemicals and long-term durability. With features like molded-in 304 stainless steel drain fittings, stackable interlocking ridges, built-in site gauges, and integrated mounting inserts, this system is purpose-built for handling oils, DEF, lubricants, and other compatible fluids safely and efficiently.

Whether you’re outfitting a maintenance shop, equipment yard, or mobile service trailer, this modular stackable system helps you maximize vertical space while ensuring secure and accessible fluid dispensing.

Key Features

• 240-Gallon Total Capacity: Includes three 80-gallon stackable tanks mounted on a reinforced tank stand.
• Space-Saving Vertical Design: Interlocking top and bottom ridges provide stable, bracket-free stacking.
• High-Performance HDPE Construction: Made from natural virgin high-density polyethylene for maximum chemical resistance and longevity.
• Molded-In Stainless Steel Drain Fitting: Features the industry’s only molded-in 304 stainless steel 1″ NPT bushing at the drain—no additional fittings required.
• Integrated Fluid Level Gauge: Semi-transparent material and molded-in site gauge eliminate the need for external level indicators.
• Multiple Access Ports:
  • 2″ top opening for pump or vent application
  • 1″ opening for desiccant breather or remote fill
  • 2″ center fill opening for fast, convenient refills
• Mounting Flexibility: Six molded-in metal inserts accommodate an optional side-mount pump plate (sold separately).
• Standardized Footprint: All tanks share a 3′ x 3′ base, allowing interchangeable stacking with other sizes in the series.


Package Includes

• Three (3) 80-Gallon Stackable Tanks
• Tank Stand with 24″ Legs
• Drip Tray Kit
• Accessory Package, which includes:
  • Braided Poly Tubing
  • Polyethylene Elbow with Barbed End
  • Polyethylene Union with Barbed End
  • 1″ Hose Clamps
  • 2 oz Tube of Thread Sealant
  • Elbow Kit with Nut for Stand


Additional Information

• Shipping Weight: 280 lbs
• Shipping Dimensions: 44″ L x 36″ W x 36″ H
• Assembled Dimensions: 36″ L x 42″ W x 83″ H
• Footprint: Standard 3′ x 3′
• Material: Natural Virgin HDPE
• Drain Fitting: Molded-in 304 Stainless Steel 1″ NPT Bushing
• Number of Tanks: 3
• Application: Oil, DEF, Lubricants, Non-Potable Fluids


Documents

RTT Spec Sheet - 500385

Rhino Tuff Tanks Gravity Feed System Installation & Assembly Instructions

Shipping & Warranty

Ships FOB from Idaho (Zip Code: 83605), Freight Class 250. Liftgate service available upon request for residential or limited-access delivery locations.

Protected by a 1-Year Limited Warranty covering defects in materials and workmanship under normal use conditions.
