80 Gallon Water/Holding Tank - 2080-1

Description

The Trionic 80 Gallon Water/Holding Tank (mold 2080-1) is a rotationally molded, seamless, one-piece, non-corrosive tank for potable water, freshwater and wastewater (grey water and black water). It measures 61″ L x 19″ W x 16″ H and has a 3/8″ average wall thickness.

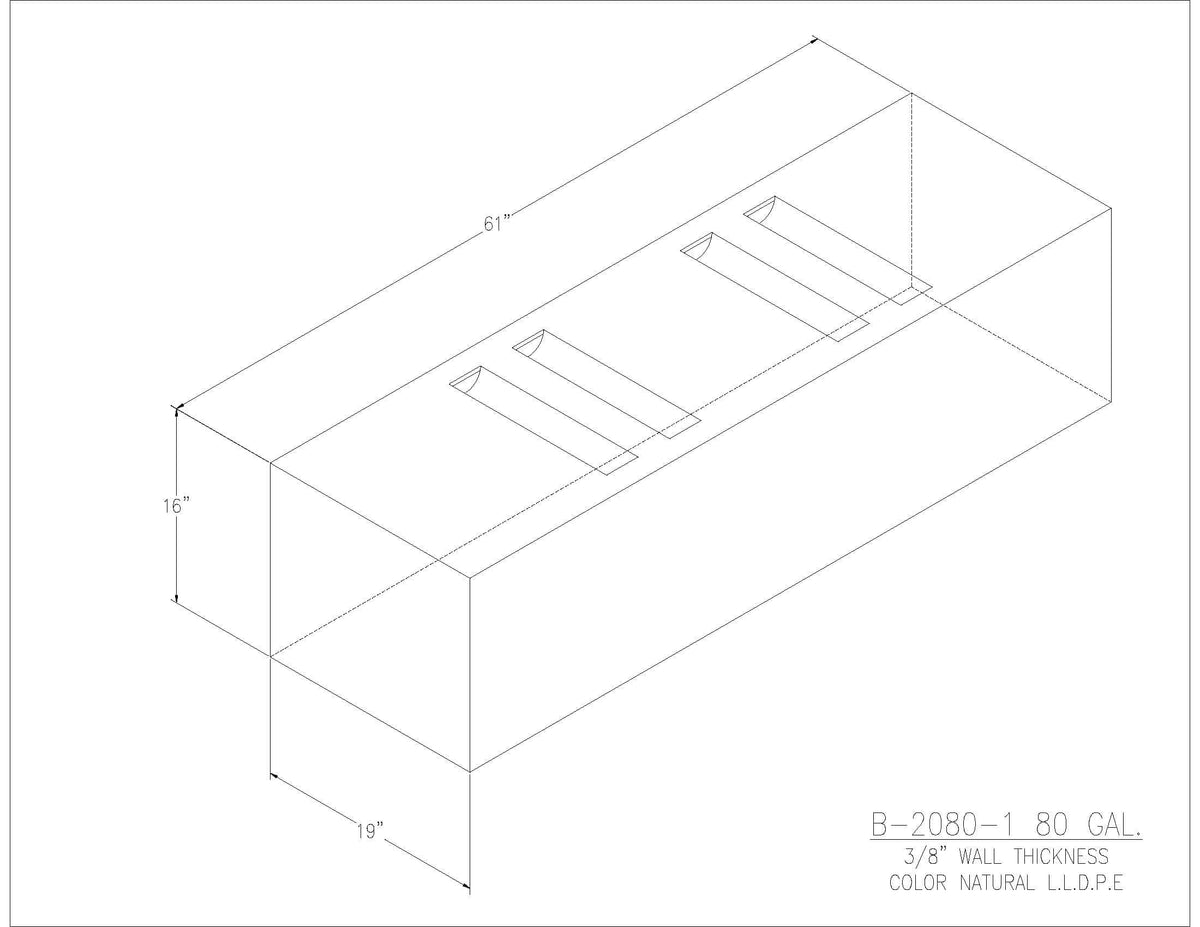

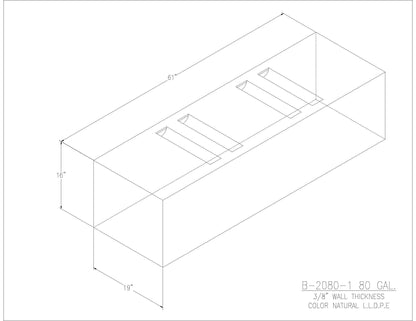

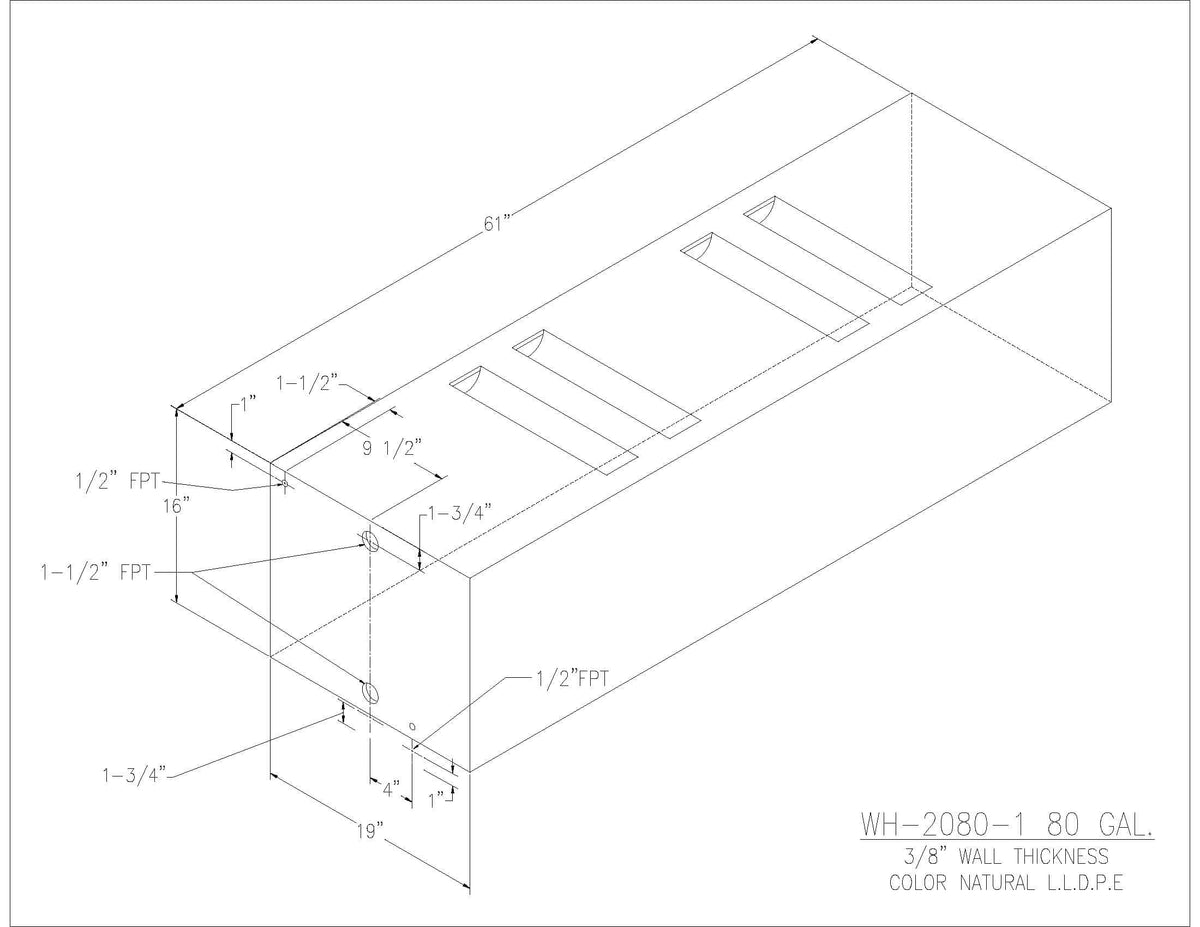

It comes in two versions. B-2080-1 is a blank tank with no fittings, so you can place fittings exactly where your installation needs them; Trionic’s CF-60 Custom Fitting Location Kit makes that quick and easy. WH-2080-1 comes with (2) 1-1/2″ FPT and (2) 1/2″ FPT threaded openings (female National Pipe Thread), all located on one end of the tank. Unused openings can be capped.

Trionic water and holding tanks fully comply with FDA regulation 21 CFR 177.1520 and meet U.S. Coast Guard regulations.

Key Features

• Seamless one-piece tank: Rotationally molded, non-corrosive linear low-density polyethylene
• Potable or waste: Suitable for potable water, freshwater, grey water and black water
• Regulation compliant: Complies with FDA 21 CFR 177.1520 and meets U.S. Coast Guard regulations
• Wall thickness: 3/8″ average
• Two versions: Blank (B-2080-1) or with four threaded openings (WH-2080-1)
• Fitting flexibility: Blank tanks accept Trionic’s CF-60 Custom Fitting Location Kit; custom fitting locations are available from Trionic on orders of at least 5 of the same tank

Specifications

• Manufacturer: Trionic Corp
• Part numbers: WH-2080-1 (with fittings), B-2080-1 (blank, no fittings)
• Capacity: 80 gallons
• Dimensions (L x W x H): 61″ L x 19″ W x 16″ H
• Shape: Rectangular
• Average wall thickness: 3/8″
• Material: Rotationally molded linear low-density polyethylene (LLDPE)
• Color: Natural
• Openings (WH-2080-1): (2) 1-1/2″ FPT and (2) 1/2″ FPT, female NPT, located on one end of the tank
• Openings (B-2080-1): None (blank tank)
• Compliance: FDA 21 CFR 177.1520; meets U.S. Coast Guard regulations
• Shipping weight: 62 lb (Trionic shipping sheet)
• Ships From: Wisconsin

Applications

• Boat and marine water and holding tanks
• RV, camper and conversion van tanks
• Food truck tanks
• Mobile clinic and medical truck tanks

Frequently Asked Questions

What is the difference between B-2080-1 and WH-2080-1?
B-2080-1 is a blank tank with no openings, so you choose where the fittings go. WH-2080-1 comes with (2) 1-1/2″ FPT and (2) 1/2″ FPT threaded openings on one end of the tank. Both are the same 80 gallon, 61″ L x 19″ W x 16″ H tank.

What is the tank made of?
Rotationally molded linear low-density polyethylene. Trionic says metal fittings are not compatible with its polyethylene tanks, and using them voids the Trionic warranty.

How close to the bottom can I add a fitting to a blank tank?
Trionic recommends drilling a 1/2″ fitting no closer than 3/4″ from the bottom of the tank and a 1-1/2″ fitting no closer than 1-1/8″, and leaving at least 1/2″ of clearance on the sides and top. Trionic does not recommend fittings on the very bottom of the tank.

How should the tank be installed?
The bottom of the tank should be fully supported. Trionic also says to use a 12″ minimum length of flexible hose to hose barb fittings.

Should I use sealant or Teflon tape on the hose adapters?
Trionic recommends 3M 4200 or 5200 on the threads of straight fittings, and Teflon tape on 90-degree fittings so the fitting can be oriented. Hand tighten first, then use a wrench, and do not overtighten.

Can Trionic put the fittings in custom locations?
Yes, on orders of five or more of the same tank, at an extra charge. Contact Tank Supply Direct for a quote.

How long does it take to ship?
The manufacturer lead time is 1-2 weeks, and it ships from Wisconsin. Shipping is calculated at checkout.

What warranty does it come with?
Trionic Corp warrants its products to be free from manufacturing defects in material and workmanship for one year after the date of purchase.

Manufacturer Documents

• Trionic product page: WH-2080-1
• Trionic product page: B-2080-1
• Trionic water/holding tank size table
• Trionic CF-60 Custom Fitting Location Kit installation instructions (PDF)
• Trionic water & holding tank flyer (PDF)
• Trionic maintenance instructions
• Trionic Corp limited warranty (PDF)

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): WI

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Trionic Corp warrants its products to be free from manufacturing defects in material and workmanship for one year after the date of purchase. Trionic will replace, or at its option repair, product returned transportation prepaid that it determines on inspection to be defective. The warranty is void if the product has been altered, abused, neglected, improperly installed or damaged in transit, and Trionic states that using metal fittings on its polyethylene tanks voids the warranty. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
