Texas Precast C Box Precast Concrete Livestock Water Trough (MPN C-BOX)

Description

The Texas Precast C Box is a large precast concrete box measuring 89 1/2" long x 33 1/2" wide x 28" tall on the outside, with an 85 1/2" x 30 1/2" x 26" inside cavity and a 2" floor. It is poured at a minimum 6,000 PSI compressive strength at 28 days and reinforced with 2x4 12-gauge ASTM A185 65 KSI wire continuous around the perimeter plus #3 Grade 60 rebar. Supplied with or without the matching reinforced cover; without the cover the open box is commonly used as a livestock or horse water trough.

Key Features

• 6,000 PSI Precast Concrete: Poured at a minimum 6,000 PSI compressive strength at 28 days
• Engineered Reinforcement: 2x4 12-gauge ASTM A185 65 KSI wire continuous around the perimeter, plus #3 Grade 60 rebar per engineering specification
• Reinforced Cover Available: The matching 3" cover is reinforced with #3 rebar at 6" on center both ways over a 2x4 12-gauge wire mat - select with or without the cover

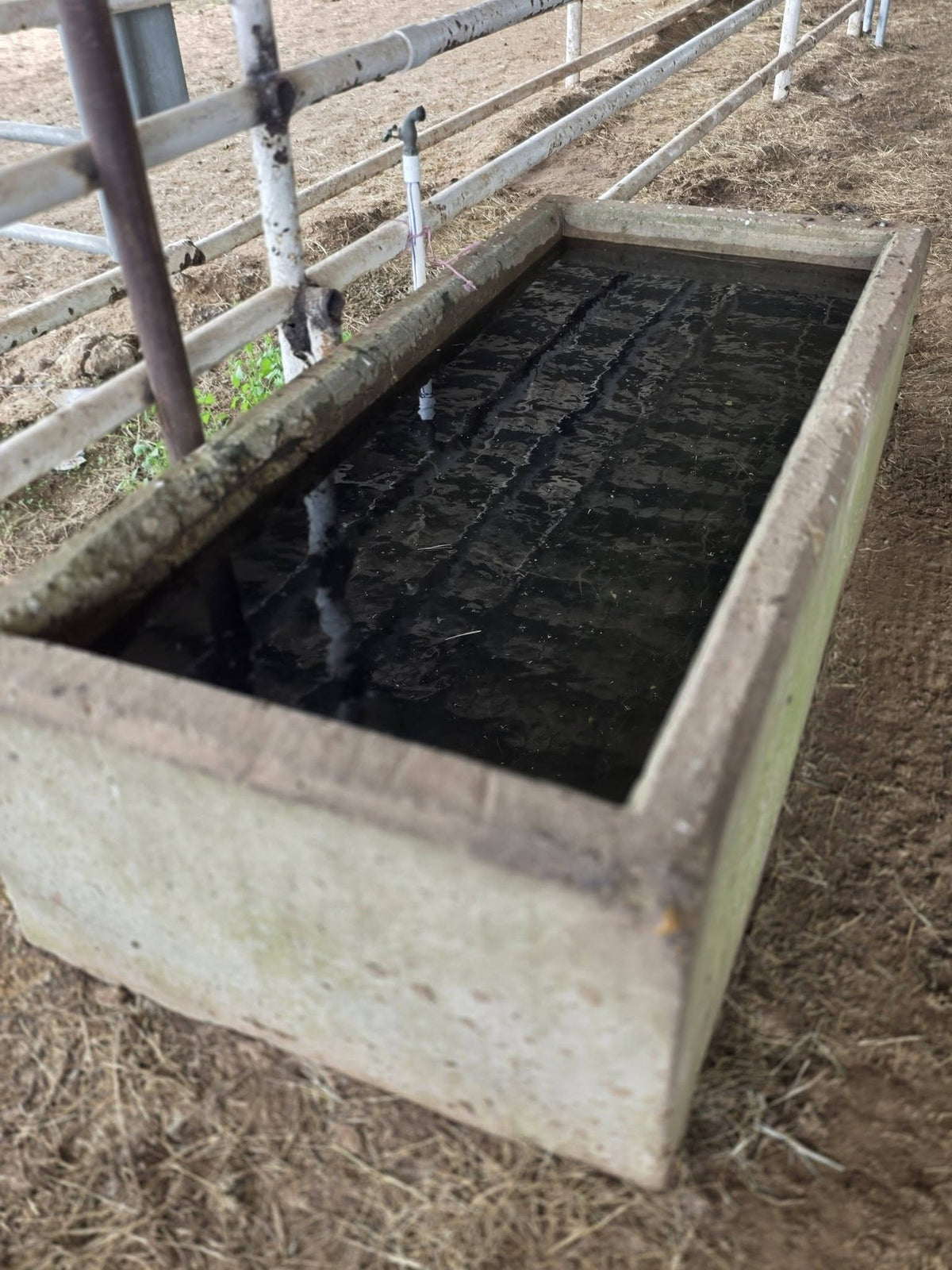

• Livestock and Horse Water Trough: Without the cover, the open box serves as a durable freeze-resistant livestock or horse water trough
• Texas Manufactured: Cast in Santa Fe, Texas and shipped from the plant

Specifications

• Outside Dimensions: 89 1/2" L x 33 1/2" W x 28" H
• Inside Dimensions: 85 1/2" L x 30 1/2" W x 26" D
• Floor Thickness: 2"
• Cover: 89 1/2" x 33 1/2", 3" section
• Concrete: 6,000 PSI minimum in 28 days
• Reinforcement: 2x4 12-gauge ASTM A185 65 KSI, plus #3 Grade 60 rebar
• Cover Reinforcement: #3 rebar at 6" on center both ways plus a 2x4 12-gauge wire mat
• Manufacturer: Texas Precast, L.L.C. - Santa Fe, Texas
• Ships From: Texas (TX)
• Manufacturer Model: C-BOX

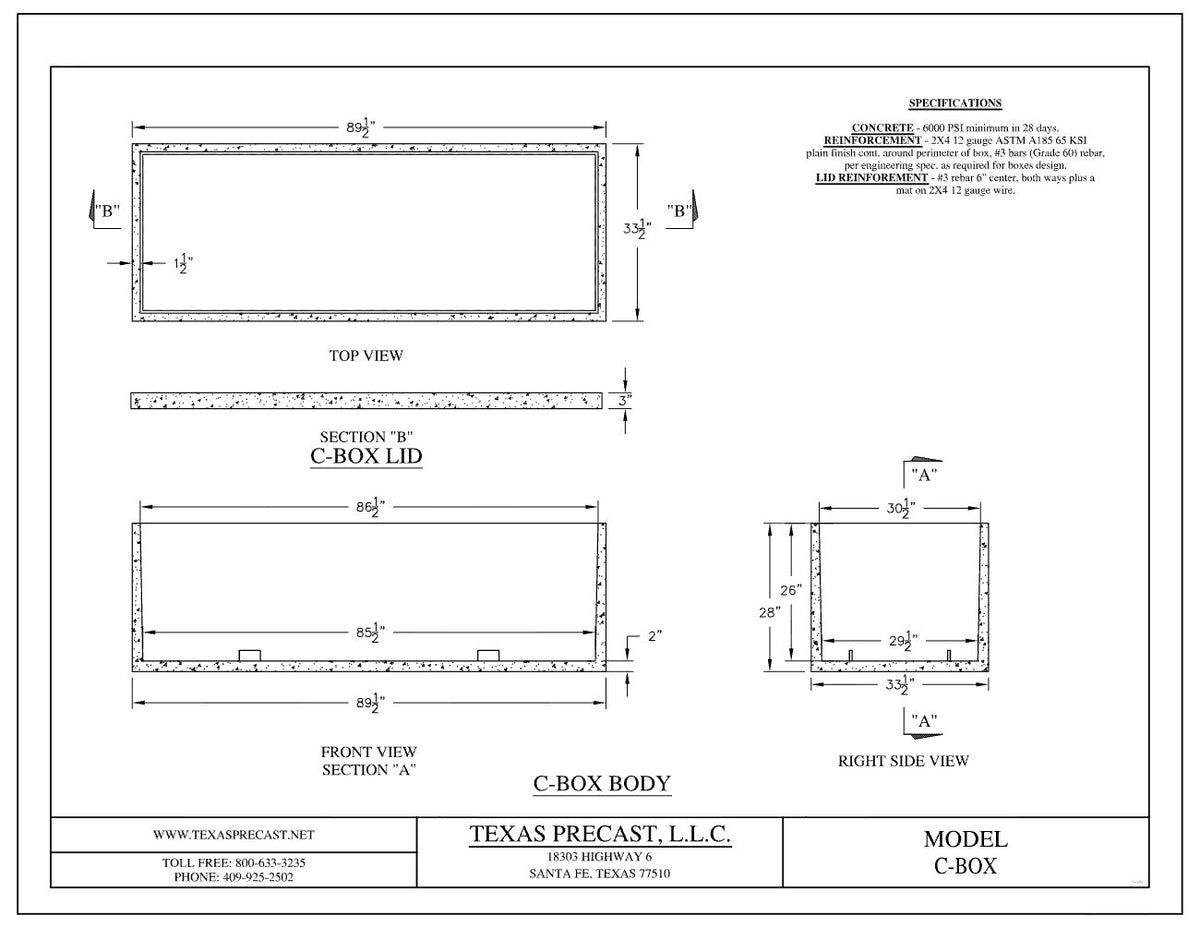

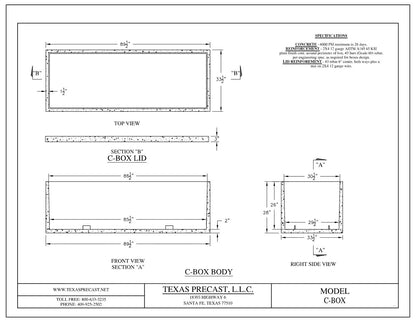

• Dimensional Drawing: C Box dimensional drawing

Applications

• Livestock and horse water trough (supplied without the cover)
• Covered precast concrete box for at-grade or below-ground use (supplied with the cover)

Manufacturer Documents

• C Box dimensional drawing (PDF)

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): TX

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Texas Precast warrants the product against defects and is limited to replacement for 1 year. The full written warranty is provided at the time of purchase and at texasprecast.net.
