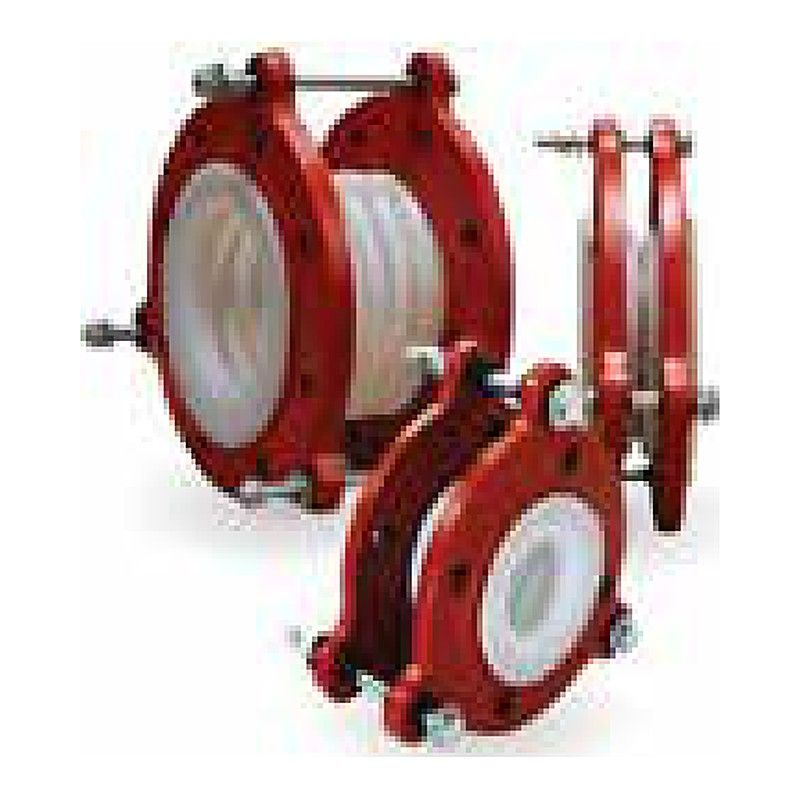

Peabody Engineering PTFE Expansion Joints (1" to 8")

Description

Peabody Engineering PTFE expansion joints from 1" to 8", with 2, 3 or 5 bellows. Movement range depends on size and number of bellows, from 1/4" to 1-1/4".

Choose the size with the movement range and number of bellows you need.

Key Features

• PTFE Bellows: 2, 3 or 5 bellows
• Movement Range: 1/4" to 1-1/4" depending on size and bellows
• 1" to 8": Eight sizes

Specifications

• Sizes: 1", 1-1/4", 1-1/2", 2", 3", 4", 6", 8"
• Bellows: 2, 3, 5
• Movement Range: 1/4" to 1-1/4"
• Manufacturer Part Numbers: 02-35423 (1" - 1/4" Movement - 2 Bellows); 02-35424 (1" - 1/2" Movement - 3 Bellows); 02-35986 (1" - 1/2" Movement - 5 Bellows); 02-35425 (1-1/4" - 1/4" Movement - 2 Bellows); 02-35426 (1-1/4" - 1/2" Movement - 3 Bellows); 02-35987 (1-1/4" - 1/2" Movement - 5 Bellows); 02-35427 (1-1/2" - 1/4" Movement - 2 Bellows); 02-28430 (1-1/2" - 1/2" Movement - 3 Bellows); 02-35988 (1-1/2" - 3/4" Movement - 5 Bellows); 02-35428 (2" - 1/4" Movement - 2 Bellows); 02-28431 (2" - 3/4" Movement - 3 Bellows); 02-35989 (2" - 1" Movement - 5 Bellows); 02-35429 (3" - 3/8" Movement - 2 Bellows); 02-28432 (3" - 1" Movement - 3 Bellows); 02-35990 (3" - 1" Movement - 5 Bellows); 02-35430 (4" - 1/2" Movement - 2 Bellows); 02-28433 (4" - 1" Movement - 3 Bellows); 02-35991 (4" - 1-1/4" Movement - 5 Bellows); 02-35431 (6" - 1/2" Movement - 2 Bellows); 02-28434 (6" - 1-1/8" Movement - 3 Bellows); 02-35992 (6" - 1-1/4" Movement - 5 Bellows); 02-35432 (8" - 1/2" Movement - 2 Bellows); 02-28435 (8" - 1-1/8" Movement - 3 Bellows); 02-35993 (8" - 1-1/4" Movement - 5 Bellows)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Taking up movement and vibration between a tank and its piping

Frequently Asked Questions

How do I choose the number of bellows?
More bellows give a larger movement range at each size. The movement range is shown in each option.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Peabody Product Catalog

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
