Peabody Engineering ProChem Flexible Heating Blanket Systems for Gemini and ProChem Tanks

Description

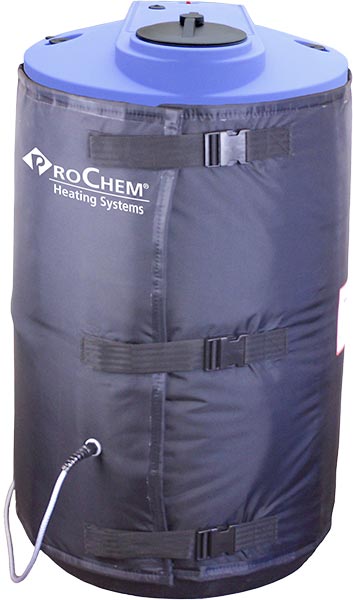

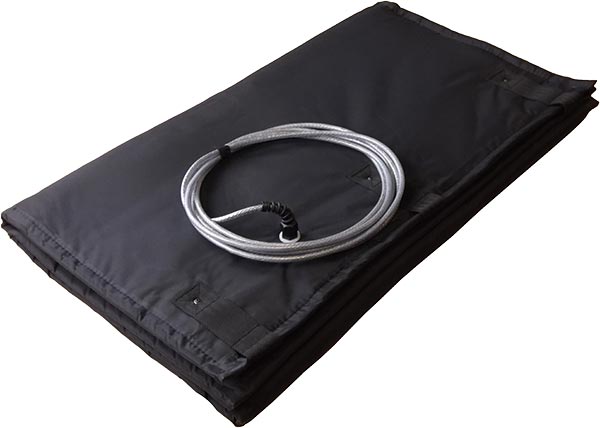

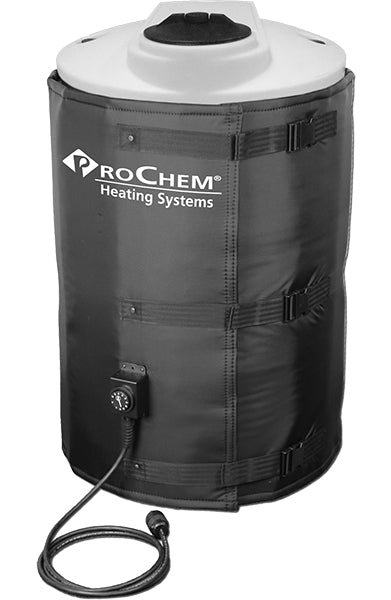

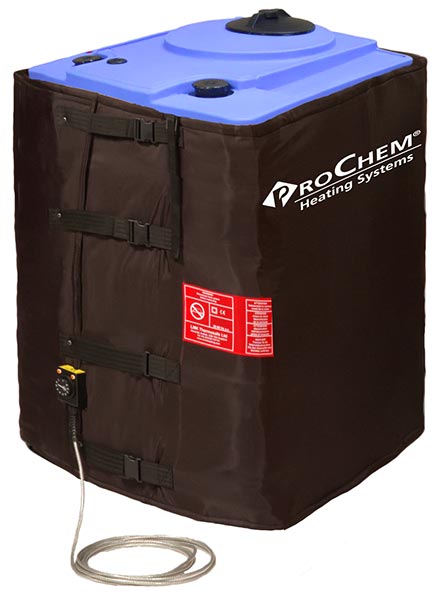

Peabody Engineering flexible heating blankets wrap around a Gemini or ProChem tank to keep its contents from freezing or to hold them at temperature. Jackets A through J cover tank diameters from 12" to 62.5", in single or dual circuit versions, with or without an outdoor weather jacket.

Choose the jacket whose diameter range fits your tank, then single or dual circuit, and add the weather jacket for outdoor installations. Controllers are sold separately.

Key Features

• Sized by Tank Diameter: Jackets A through J fit tank diameters from 12" to 62.5"
• Single or Dual Circuit: Dual circuit versions on the larger jackets
• Weather Jacket Option: Blanket with weather jacket for outdoor use
• 120 V: All jackets are 120 V

Specifications

• Jacket A - Single Circuit: tank dia 12 - 18", heated height 10.5", 2.6 sq ft heated, 200 W, 1 circuit, 120 V
• Jacket B - Single Circuit: tank dia 18.75 - 25", heated height 20.0", 7.5 sq ft heated, 550 W, 1 circuit, 120 V
• Jacket C - Single Circuit: tank dia 25.5 - 31.5", heated height 27.5", 15 sq ft heated, 1000 W, 1 circuit, 120 V
• Jacket D - Single Circuit: tank dia 33.75 - 40", heated height 37.5", 27 sq ft heated, 1350 W, 1 circuit, 120 V
• Jacket D - Dual Circuit: tank dia 33.75 - 40", heated height 37.5", 27 sq ft heated, 2 x 850 W, 2 circuit, 120 V
• Jacket E - Single Circuit: tank dia 47.75 - 54", heated height 37.5", 38 sq ft heated, 1350 W, 1 circuit, 120 V
• Jacket E - Dual Circuit: tank dia 47.75 - 54", heated height 37.5", 38 sq ft heated, 2 x 1100 W, 2 circuit, 120 V
• Jacket F - Single Circuit: tank dia 60-62.5", heated height 37.5", 48 sq ft heated, 1350 W, 1 circuit, 120 V
• Jacket F - Dual Circuit: tank dia 60-62.5", heated height 37.5", 48 sq ft heated, 2 x 1350 W, 2 circuit, 120 V
• Jacket G - Dual Circuit: tank dia 54-60", heated height 37.5", 44 sq ft heated, 2 x 1230 W, 2 circuit, 120 V
• Jacket H - Single Circuit: tank dia 31-33.5", heated height 37.5", 24 sq ft heated, 1320 W, 1 circuit, 120 V
• Jacket J - Single Circuit: tank dia 40-46.5", heated height 37.5", 31 sq ft heated, 1200 W, 1 circuit, 120 V
• Jacket J - Dual Circuit: tank dia 40-46.5", heated height 37.5", 31 sq ft heated, 2 x 1200 W, 2 circuit, 120 V
• Manufacturer Part Numbers: 02-32277 (Jacket A, Single Circuit); 02-32286 (Jacket A, Single Circuit + Weather Jacket); 02-32278 (Jacket B, Single Circuit); 02-32287 (Jacket B, Single Circuit + Weather Jacket); 02-32279 (Jacket C, Single Circuit); 02-32288 (Jacket C, Single Circuit + Weather Jacket); 02-32280 (Jacket D, Single Circuit); 02-36431 (Jacket D, Single Circuit + Weather Jacket); 02-32281 (Jacket D, Dual Circuit); 02-32289 (Jacket D, Dual Circuit + Weather Jacket); 02-33282 (Jacket E, Single Circuit); 02-36432 (Jacket E, Single Circuit + Weather Jacket); 02-32283 (Jacket E, Dual Circuit); 02-32290 (Jacket E, Dual Circuit + Weather Jacket); 02-32284 (Jacket F, Single Circuit); 02-36433 (Jacket F, Single Circuit + Weather Jacket); 02-32285 (Jacket F, Dual Circuit); 02-32291 (Jacket F, Dual Circuit + Weather Jacket); 02-36434 (Jacket G, Dual Circuit); 02-36435 (Jacket G, Dual Circuit + Weather Jacket); 02-36436 (Jacket H, Single Circuit); 02-36437 (Jacket H, Single Circuit + Weather Jacket); 02-36438 (Jacket J, Single Circuit); 02-36439 (Jacket J, Single Circuit + Weather Jacket); 02-36440 (Jacket J, Dual Circuit); 02-36441 (Jacket J, Dual Circuit + Weather Jacket)
• Controllers: Sold separately: single control 02-32357, dual controls 02-32358
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Freeze protection for outdoor chemical tanks
• Keeping tank contents at working temperature

Frequently Asked Questions

Which jacket fits my tank?
Match your tank diameter to the jacket diameter ranges listed in the specifications.

When do I need the weather jacket?
Peabody prices the weather jacket version for outdoor use.

Is a controller included?
No. Peabody sells single and dual controllers separately.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Flexible Heating Blanket Systems
