Peabody Engineering Gemini Square MCU #1 Multi-Chemical Containment Unit - (2) 12 Gallon Tanks

Description

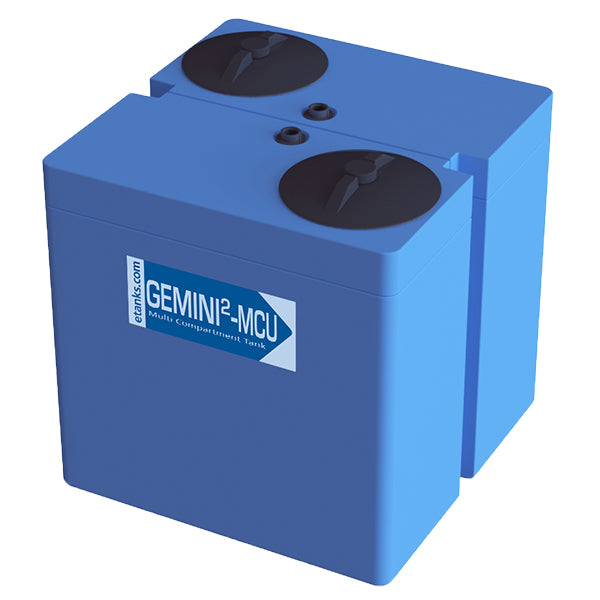

The Peabody Engineering Gemini Square MCU #1 is a multi-chemical containment unit that holds two 12 gallon inner tanks (24 gallons total) inside one outer containment tank. The assembled unit measures 25" x 25" x 25" (length x width x height). Choose Blue or Natural and choose the unit with or without the PumpDeck.

The Gemini² MCU is a multi-chemical containment unit: several small Gemini square tanks housed in one outer containment tank, for feeding multiple chemicals from one footprint.

Key Features

• Total Capacity: 24 gallons
• Inner Tanks: (2) 12 gallon primary tanks (12.5" x 6.25" x 24" each)
• Multiple Chemicals: Up to two different chemicals from a single footprint
• Secondary Containment: Outer containment tank around all inner tanks
• PumpDeck Option: Available with or without the PumpDeck
• Made in the USA: Built by Peabody Engineering and shipped from Liberty, South Carolina

Specifications

• Manufacturer Part Numbers: 01-31895 (Blue, without PumpDeck), 01-35385 (Natural, without PumpDeck), 01-35388 (Blue, with PumpDeck), 01-35391 (Natural, with PumpDeck)
• Assembled Unit L x W x H: 25" x 25" x 25"
• Outer Containment Tank L x W x H: 25" x 25" x 22"
• Inner Tanks: (2) 12 gallon primary tanks (12.5" x 6.25" x 24" each)
• Total Capacity: 24 gallons
• Colors: Blue, Natural
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Feeding several chemicals from one contained footprint
• Chemical feed rooms and skids that need secondary containment

Frequently Asked Questions

What is the Peabody Gemini Square MCU #1?
It is a multi-chemical containment unit with two 12 gallon inner tanks inside one outer containment tank, so several chemicals can be stored and fed from one footprint.

What are the dimensions?
The assembled unit measures 25" x 25" x 25". The outer containment tank is 25" x 25" x 22".

What is the PumpDeck option?
Peabody prices each MCU with or without its PumpDeck; choose the version you need in the options above.

What specific gravity is it rated for?
Peabody does not publish a specific gravity rating for the MCU. Contact Tank Supply Direct before ordering it for liquids heavier than water.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Freight is calculated at checkout.

Who makes it?
Peabody Engineering. Manufacturer part numbers: 01-31895, 01-35385, 01-35388, 01-35391.

Manufacturer Documents

• Peabody catalog page: Gemini Square MCU

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Peabody Engineering standard-duty tanks carry a full 3-year manufacturer warranty. This standard warranty does not apply to special applications such as sodium hypochlorite or biodiesel; application-specific warranty coverage must be confirmed with Peabody Engineering for those uses. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
