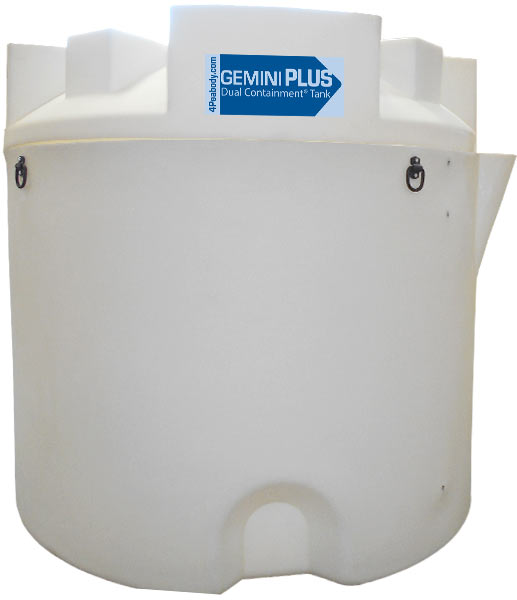

Peabody Engineering Gemini PLUS Tank Accessories (Ladder, Level, Fill Line, Leak Detection and More)

Description

Peabody Engineering Gemini PLUS accessories are the factory options for the Gemini PLUS dual containment tank: an FRP ladder with landing, a mini-inverse level, a 2" PVC fill line, drain outlets and valves, a top suction line with dip tube, an interstitial leak detection system, extra vent and auxiliary outlet, document protectors and CAD submittal drawings. Choose the accessory from the options above.

Most of these accessories are installed on the Gemini PLUS tank by Peabody, so order them with your Gemini PLUS tank. A 16" ID (18" OD) vented twist lid and (4) lifting D-rings come standard on the Gemini PLUS. The 2" double wall bulkhead primary drain outlet (02-28853) is sold in our Gemini double wall interconnect fittings listing.

Key Features

• FRP Ladder: FRP ladder with 18" x 24" landing and attachment kit
• Level Indication: Mini-inverse level with 4" wide calibration board
• Fill Line: 2" PVC fill line with Hayward true union PVC/EPDM ball valve, 45 degree ell, PPL male QC adapter and dust cap with lanyard
• Leak Detection: Battery-powered float-style interstitial sensor with audible and visual alarm, epoxy-coated enclosure, PPL float, PVC-coated cable
• Drains and Vents: Secondary space drain outlet and valve kit, 2" drain ball valve, 2" top extra vent and 2" top auxiliary outlet

Specifications

• Manufacturer Part Numbers: 27-32867 (FRP ladder), 02-32868 (mini-inverse level), 02-32869 (2" fill line), 10-32870 (2" PPL full port compact ball valve, MPT x FPT, for the double wall drain outlet), 02-54 (3/4" Hayward PVC/EPDM secondary space drain outlet), 02-32871 (3/4" PPL ball valve and poly street ell drain kit), 02-32872 (2" top suction line: PVC union, PVC dip tube, PVC spring check valve, PE suction screen), 24-32262 (interstitial leak detection), 02-32873 (2" PPL/EPDM bulkhead with PPL mushroom vent and poly screen), 02-34568 ((2) 3P document protectors, installed by customer), 02-32874 (2" PVC/EPDM bulkhead auxiliary outlet on top tank pedestal), 272-28691 (CAD submittal drawings)
• Standard on Gemini PLUS: 16" ID (18" OD) vented twist lid (02-133) and (4) lifting D-rings (02-32866)
• Fits: Peabody Gemini PLUS dual containment tanks
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Outfitting a Gemini PLUS bulk chemical storage tank
• Submittal packages for engineered chemical storage projects

Frequently Asked Questions

Do these accessories come installed?
Most are installed on the Gemini PLUS tank by Peabody, so order them with your tank. The document protectors are installed by the customer in locations of their choice.

What comes standard on the Gemini PLUS?
A 16" ID (18" OD) vented twist lid and (4) lifting D-rings are included with the tank.

What are the CAD submittal drawings?
Drawings that show all of the selected accessories on the tank, for project submittals.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Gemini PLUS Tanks

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
