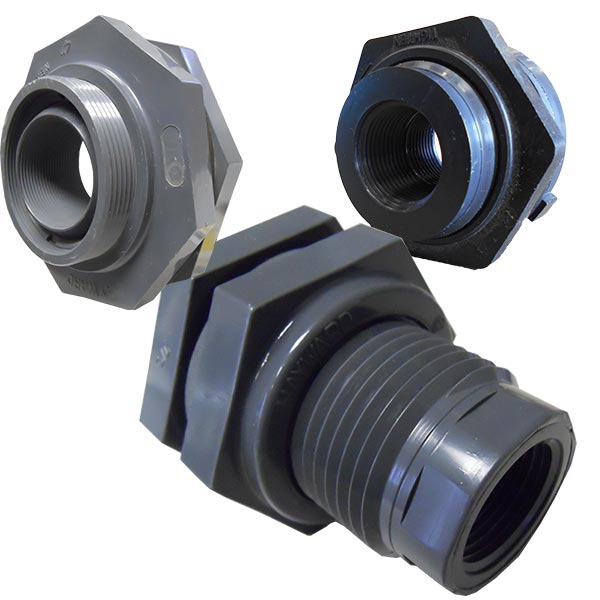

Peabody Engineering Economy Bulkhead Adapters and Fittings, PPL, HD PPL and 316 SST (3/8" to 4")

Description

Peabody Engineering economy bulkhead adapters and fittings with thread x thread connections in PPL, HD PPL and 316 stainless steel, sizes 3/8" through 4", each with an EPDM or Viton gasket. Not every material is offered in every size.

Choose the size and gasket, then the material. Only the combinations Peabody offers are listed.

Key Features

• Three Materials: PPL, HD PPL or 316 SST
• Thread x Thread: T x T connection
• Gasket Choice: EPDM or Viton
• 3/8" to 4": Wide size range

Specifications

• PPL Sizes: 1/2" to 4" with EPDM; 3/4" to 4" with Viton
• HD PPL Sizes: 3/4" and 2"
• 316 SST Sizes: 3/8" to 3"
• Connection: T x T (thread x thread)
• Gaskets: EPDM, Viton
• Manufacturer Part Numbers: 02-25955 (3/8" EPDM, 316 SST T x T); 02-28871 (3/8" Viton, 316 SST T x T); 02-24 (1/2" EPDM, PPL T x T); 02-25956 (1/2" EPDM, 316 SST T x T); 02-28873 (1/2" Viton, 316 SST T x T); 02-85 (3/4" EPDM, PPL T x T); 02-23 (3/4" EPDM, HD PPL T x T); 02-14952 (3/4" EPDM, 316 SST T x T); 02-28285 (3/4" Viton, PPL T x T); 02-28286 (3/4" Viton, HD PPL T x T); 02-28875 (3/4" Viton, 316 SST T x T); 02-12 (1" EPDM, PPL T x T); 02-14951 (1" EPDM, 316 SST T x T); 02-28287 (1" Viton, PPL T x T); 02-28876 (1" Viton, 316 SST T x T); 02-10 (1-1/4" EPDM, PPL T x T); 02-14950 (1-1/4" EPDM, 316 SST T x T); 02-28288 (1-1/4" Viton, PPL T x T); 02-28877 (1-1/4" Viton, 316 SST T x T); 02-4 (1-1/2" EPDM, PPL T x T); 02-14949 (1-1/2" EPDM, 316 SST T x T); 02-28289 (1-1/2" Viton, PPL T x T); 02-28878 (1-1/2" Viton, 316 SST T x T); 02-11 (2" EPDM, PPL T x T); 02-28775 (2" EPDM, HD PPL T x T); 02-14948 (2" EPDM, 316 SST T x T); 02-28290 (2" Viton, PPL T x T); 02-28291 (2" Viton, HD PPL T x T); 02-28874 (2" Viton, 316 SST T x T); 02-20 (3" EPDM, PPL T x T); 02-14946 (3" EPDM, 316 SST T x T); 02-28292 (3" Viton, PPL T x T); 02-28880 (3" Viton, 316 SST T x T); 02-19 (4" EPDM, PPL T x T); 02-28293 (4" Viton, PPL T x T)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Adding inlet, outlet and drain connections to polyethylene tanks
• Replacing worn or damaged tank fittings

Frequently Asked Questions

Which sizes come in 316 stainless steel?
Peabody offers the 316 SST bulkhead from 3/8" through 3". The 4" size is PPL only.

Which gasket should I choose?
Choose the gasket material that is compatible with the chemical you are storing. If you are unsure, check the chemical resistance chart for your product or ask Tank Supply Direct.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Bulkhead and Bolted Fittings

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
