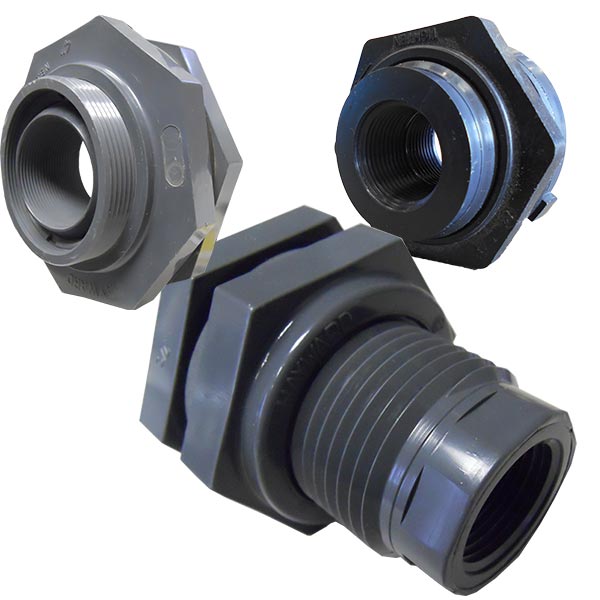

Peabody Engineering Standard Flange Bulkhead Fittings, PVC, CPVC and PPL (1/2" to 4")

Description

Peabody Engineering standard flange bulkhead fittings in PVC and CPVC (socket x thread) and PPL (thread x thread), sizes 1/2" through 4", each with an EPDM or Viton gasket.

Choose the size and gasket, then the body material and connection.

Key Features

• Three Materials: PVC, CPVC or PPL body
• Standard Flange: Standard flange bulkhead pattern
• Gasket Choice: EPDM or Viton
• 1/2" to 4": Eight sizes

Specifications

• Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3", 4"
• Materials and Connections: PVC S x T, CPVC S x T, PPL T x T
• Connection Codes: S x T = socket x thread; T x T = thread x thread
• Gaskets: EPDM, Viton
• Manufacturer Part Numbers: 10-3666 (1/2" EPDM, PVC S x T); 10-3584 (1/2" EPDM, CPVC S x T); 10-3587 (1/2" EPDM, PPL T x T); 10-3602 (1/2" Viton, PVC S x T); 10-3541 (1/2" Viton, CPVC S x T); 10-3617 (1/2" Viton, PPL T x T); 10-3632 (3/4" EPDM, PVC S x T); 10-3581 (3/4" EPDM, CPVC S x T); 10-3588 (3/4" EPDM, PPL T x T); 10-3605 (3/4" Viton, PVC S x T); 10-3658 (3/4" Viton, CPVC S x T); 10-3595 (3/4" Viton, PPL T x T); 10-3622 (1" EPDM, PVC S x T); 10-3578 (1" EPDM, CPVC S x T); 10-3589 (1" EPDM, PPL T x T); 10-3609 (1" Viton, PVC S x T); 10-3655 (1" Viton, CPVC S x T); 10-3597 (1" Viton, PPL T x T); 10-3625 (1-1/4" EPDM, PVC S x T); 10-3575 (1-1/4" EPDM, CPVC S x T); 10-3591 (1-1/4" EPDM, PPL T x T); 10-3613 (1-1/4" Viton, PVC S x T); 10-3651 (1-1/4" Viton, CPVC S x T); 10-3598 (1-1/4" Viton, PPL T x T); 10-3628 (1-1/2" EPDM, PVC S x T); 10-3566 (1-1/2" EPDM, CPVC S x T); 10-3743 (1-1/2" EPDM, PPL T x T); 10-3636 (1-1/2" Viton, PVC S x T); 10-3592 (1-1/2" Viton, CPVC S x T); 10-3599 (1-1/2" Viton, PPL T x T); 10-3631 (2" EPDM, PVC S x T); 10-3884 (2" EPDM, CPVC S x T); 10-3593 (2" EPDM, PPL T x T); 10-3645 (2" Viton, PVC S x T); 10-3868 (2" Viton, CPVC S x T); 10-3608 (2" Viton, PPL T x T); 10-3634 (3" EPDM, PVC S x T); 10-3881 (3" EPDM, CPVC S x T); 10-3664 (3" EPDM, PPL T x T); 10-3649 (3" Viton, PVC S x T); 10-3640 (3" Viton, CPVC S x T); 10-3611 (3" Viton, PPL T x T); 10-3870 (4" EPDM, PVC S x T); 10-3576 (4" EPDM, CPVC S x T); 10-3596 (4" EPDM, PPL T x T); 10-3659 (4" Viton, PVC S x T); 10-3876 (4" Viton, CPVC S x T); 10-3614 (4" Viton, PPL T x T)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Adding inlet, outlet and drain connections to polyethylene tanks
• Replacing worn or damaged tank fittings

Frequently Asked Questions

Which gasket should I choose?
Choose the gasket material that is compatible with the chemical you are storing. If you are unsure, check the chemical resistance chart for your product or ask Tank Supply Direct.

Can Peabody install the fitting in my tank?
Yes. Peabody lists a per-fitting bulkhead installation charge (272-27297 for 1/4" to 2", 272-27298 for 3" to 6"). Ask Tank Supply Direct to add installation when you order a Peabody tank.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Bulkhead and Bolted Fittings

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
