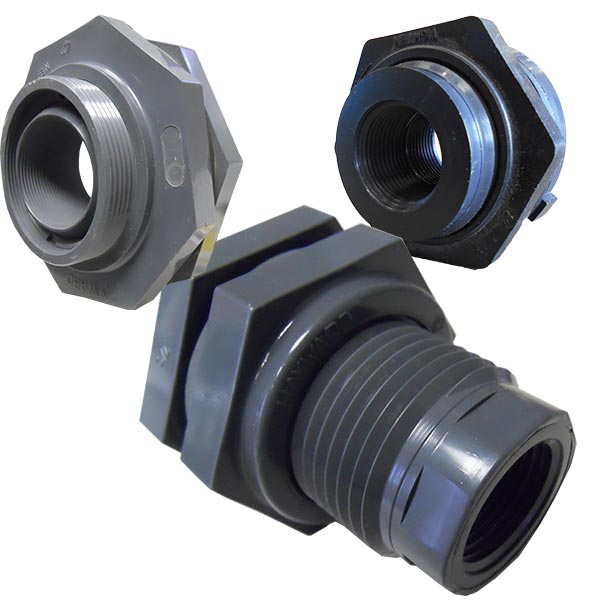

Peabody Engineering Short Pattern Bulkhead Fittings, GFPP (1/2" to 4")

Description

Peabody Engineering short pattern bulkhead fittings in GFPP with thread x thread connections and an EPDM gasket, sizes 1/2" through 4".

Choose your size from the options above. Peabody lists the GFPP version with an EPDM gasket only.

Key Features

• GFPP Body: Short pattern bulkhead in GFPP
• Thread x Thread: T x T connection
• EPDM Gasket: EPDM gasket
• 1/2" to 4": Eight sizes

Specifications

• Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3", 4"
• Connection: T x T (thread x thread)
• Gasket: EPDM
• Manufacturer Part Numbers: 10-34228 (1/2" EPDM, GFPP T x T); 10-34229 (3/4" EPDM, GFPP T x T); 10-32367 (1" EPDM, GFPP T x T); 10-34230 (1-1/4" EPDM, GFPP T x T); 10-34231 (1-1/2" EPDM, GFPP T x T); 10-34232 (2" EPDM, GFPP T x T); 10-34233 (3" EPDM, GFPP T x T); 10-34234 (4" EPDM, GFPP T x T)
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Adding inlet, outlet and drain connections to polyethylene tanks
• Replacing worn or damaged tank fittings

Frequently Asked Questions

Is a Viton gasket available?
Peabody lists the GFPP short pattern fitting with an EPDM gasket only.

Can Peabody install the fitting in my tank?
Yes. Peabody lists a per-fitting bulkhead installation charge (272-27297 for 1/4" to 2", 272-27298 for 3" to 6"). Ask Tank Supply Direct to add installation when you order a Peabody tank.

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Shipping is calculated at checkout.

Who makes it?
Peabody Engineering.

Manufacturer Documents

• Peabody catalog page: Bulkhead and Bolted Fittings

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
