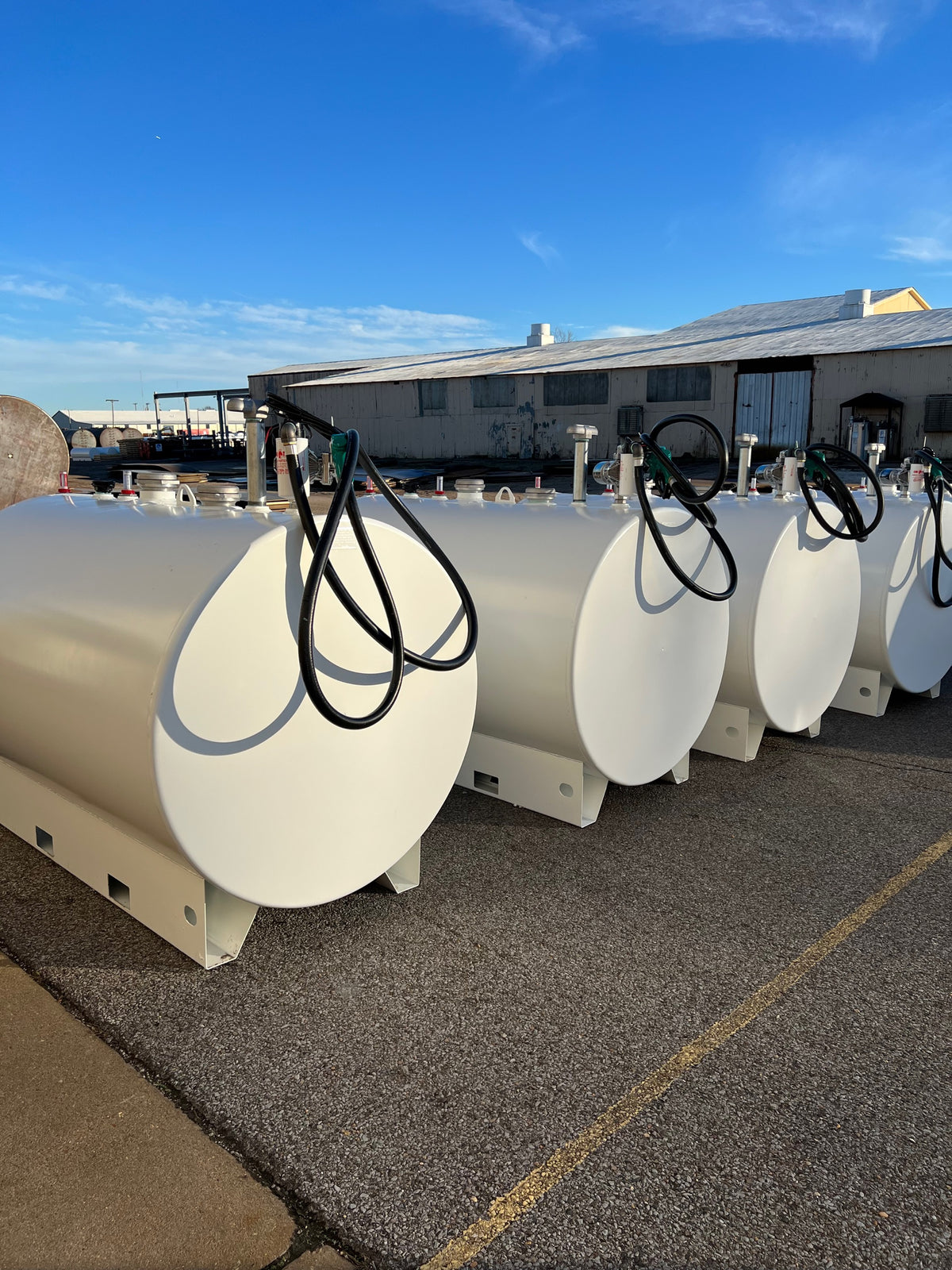

Newberry 550 Gallon UL-142 Single Wall Skid Tank Package with 115V GPI Pump (SKU: NB00550SWSPACKAGE115V)

Description

The Newberry 550 Gallon UL-142 Single Wall Skid Tank Package with 115V GPI Pump (Newberry part number NB00550SWSPACKAGE115V) is a 550-gallon single wall steel tank from Newberry's Skid Tanks line.

Newberry skid tanks meet the UL-142 specification for aboveground storage of flammable and combustible liquids and are commonly used for fuel and lubricant oil storage. Double-wall skid tanks are considered heavy-duty aboveground storage and are convenient for secondary containment requirements.

Newberry's cylindrical tank packages ship assembled and ready for use. The package comes standard with a liquid level gauge, leak detection gauge, emergency vents, atmospheric vent, fill cap, pump, hose, and nozzle.

Key Features

• Meets UL-142 specification for aboveground storage of flammable and combustible liquids
• Commonly used for fuel storage and lubricant oil storage
• Double-wall skid tanks are heavy-duty aboveground storage, convenient for secondary containment requirements
• Standard with one coat of gray primer
• Optional colors and coatings are available

Specifications

• Manufacturer: Newberry Tanks
• Part Number: NB00550SWSPACKAGE115V
• Package base tank (Newberry drawing): NB00550SWS04812G
• Capacity: 550 gallons
• Construction: Single wall
• Standard: UL-142
• Inner tank dimensions (diameter x length, in.): 48 x 72
• Finish: One coat of gray primer (optional colors and coatings available)
• Material: Steel

Applications

• Fuel storage
• Lubricant oil storage
• Sites with secondary containment requirements (double wall models)
• Aboveground storage of flammable and combustible liquids

Frequently Asked Questions

What are the dimensions of this tank?
Newberry lists inner tank dimensions of 48 x 72 inches.

Is a drawing available?
Yes. Newberry's drawing for part NB00550SWS04812G is linked under Manufacturer Documents.

What is the lead time?
The manufacture lead time for this listing is 3-5 Weeks, shipping from West Memphis, AR or Memphis, TN. Shipping is calculated at checkout.

What warranty does Newberry provide?
Newberry Tanks are guaranteed to be free from defective workmanship and material for one (1) year, limited to repair or replacement. See Shipping and Warranty for the full terms.

Manufacturer Documents

• Newberry drawing - NB00550SWS04812G (base tank) (PDF)
• Newberry Skid Tanks product page

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): West Memphis, AR or Memphis, TN

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information

Newberry Tanks are guaranteed to be free from defective workmanship and material for a period of one (1) year. Newberry's obligation under this warranty is limited to repair or replacement, subject to its terms and cost limitations. Any modification or alteration of the product without Newberry's prior written consent voids the applicable warranties. Newberry tanks are not guaranteed against corrosion. Newberry excludes incidental, special, indirect, and consequential damages, and Newberry's total liability for all damages is limited to the original purchase price of the tank. For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com.
