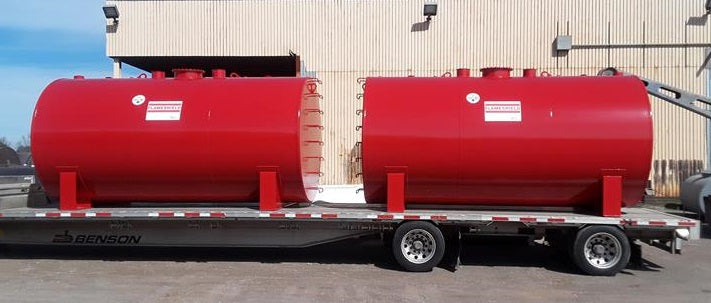

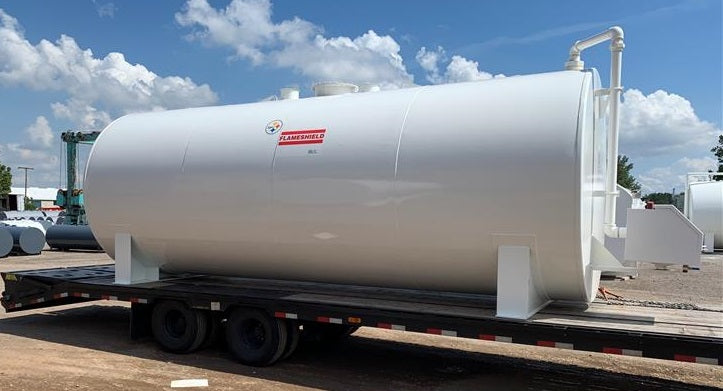

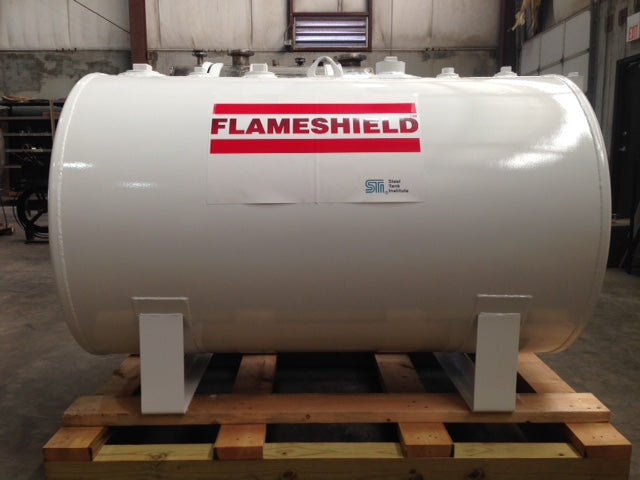

Newberry 4,000 Gallon UL-142 Double Wall Flameshield Tank (SKU: NB04000FSD06407G)

Description

The Newberry 4,000 Gallon UL-142 Double Wall Flameshield Tank (SKU: NB04000FSD06407G) is a high-capacity aboveground storage solution designed for the safe containment of flammable and combustible liquids. Featuring Newberry’s proven STI FlameShield™ technology, this tank is certified to Steel Tank Institute (STI/SPFA) specifications and meets UL-142 standards for aboveground storage applications.

Manufactured with a tight-wrap double-wall design, this Flameshield tank provides built-in secondary containment and delivers 2-hour fire-tested performance in accordance with Southwest Research Institute (SwRI 97-04) requirements. Newberry’s time-tested bracket construction ensures exceptional stability, durability, and long service life for demanding fuel, diesel, and lubricant storage applications.

Built from heavy-duty steel and finished with a protective gray primer coating, the tank provides excellent corrosion resistance and reliable performance in commercial, industrial, agricultural, and fueling environments. Optional accessories including emergency vents, flip-top fill caps, vacuum or updraft vents, fuel pumps, and protective paint coatings are available to enhance functionality and meet specific operational requirements.

Key Features

• UL-142 Compliant Construction: Meets standards for aboveground storage of flammable and combustible liquids
• STI FlameShield™ Certified Design: Manufactured to Steel Tank Institute specifications for proven quality and safety
• 2-Hour Fire-Tested Performance: Provides enhanced protection during fire exposure conditions
• Double Wall Construction: Integrated secondary containment helps reduce environmental risks
• Heavy-Duty Steel Construction: Designed for maximum durability and long-term reliability
• 4,000-Gallon Capacity: Ideal for bulk fuel, diesel, oil, and lubricant storage needs
• Bracket-Mounted Configuration: Provides stable installation and dependable support
• Optional Accessories Available: Compatible with vents, fill caps, fuel pumps, and protective coatings

Specifications

• Part Number / SKU: NB04000FSD06407G
• Tank Capacity: 4,000 Gallons
• Tank Type: Double Wall Flameshield Tank
• Dimensions: 288″ L × 64″ W × 64″ H
• Approximate Weight: 6,574 lbs
• Construction Material: Steel (Double Wall)
• Finish: Gray Primer Coating
• Compliance: UL-142, STI/SPFA Flameshield, SwRI 97-04 Tested
• Configuration: Aboveground Horizontal Bracket-Mounted Tank

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: Ships Within 5 business days

• Ships From (State): Delano, MN - 55328

Shipping charges are calculated at checkout based on delivery location, size, weight, and carrier requirements. Each tank is manufactured in the USA under strict quality control standards to ensure reliable long-term performance.

Warranty Information

Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
