Newberry 15000 Gallon UL-142 Double Wall Flameshield Tank (SKU: NB15000FSD120250)

Description

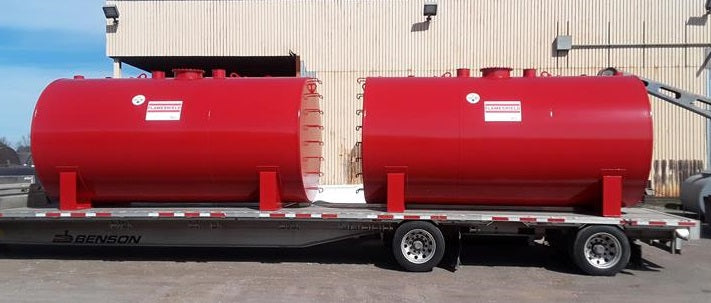

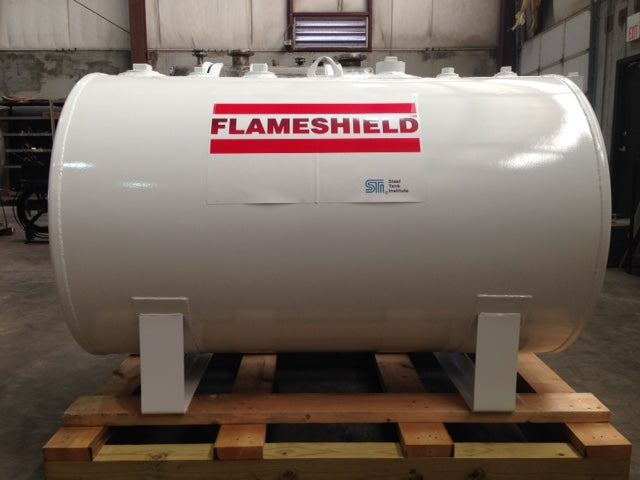

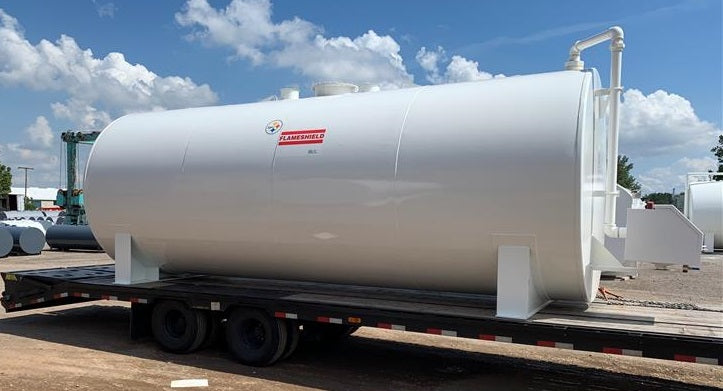

The Newberry 15000 Gallon UL-142 Double Wall Flameshield Tank (Newberry part number NB15000FSD120250) is a 15,000-gallon double wall steel tank from Newberry's STI-Flameshield & STI-F921 Double-Wall Tanks line.

Newberry's STI Flameshield and STI-F921 tanks are certified to the Steel Tank Institute (STI/SPFA) specifications, so production is subject to independent quality control inspections and the tank is eligible for an extended warranty. Flameshield is manufactured with a tight-wrap double-wall design with 2-hour fire-tested performance and built-in secondary containment.

Key Features

• All steel construction
• Meets UL-142 label for aboveground storage of flammable and combustible liquids
• Dual-wall tanks provide a solution for secondary containment requirements
• Flameshield: tight-wrap double-wall design with 2-hour fire-tested performance and built-in secondary containment
• STI Flameshield and Southwest Research Institute identification labels
• Certified to Steel Tank Institute (STI/SPFA) specifications
• Standard with one coat of gray primer

Specifications

• Manufacturer: Newberry Tanks
• Part Number: NB15000FSD120250
• Capacity: 15,000 gallons
• Construction: Double wall
• Standard: UL-142 / STI
• Inner tank dimensions (diameter x length, in.): 120 x 312
• Approximate tank weight: 22000 lbs
• Finish: One coat of gray primer
• Material: Steel

Applications

• Petroleum fuel storage
• Lubricant oil storage
• Sites with secondary containment requirements
• Sites needing fire-tested aboveground storage

Frequently Asked Questions

What are the dimensions of this tank?
Newberry lists inner tank dimensions of 120 x 312 inches and an approximate weight of 22000 lbs.

Is a drawing available?
Yes. Newberry's drawing for part NB15000FSD120250 is linked under Manufacturer Documents.

What is the lead time?
The manufacture lead time for this listing is 24-26 Weeks, shipping from West Memphis, AR. Shipping is calculated at checkout.

What warranty does Newberry provide?
Newberry Tanks are guaranteed to be free from defective workmanship and material for one (1) year, limited to repair or replacement. See Shipping and Warranty for the full terms.

Manufacturer Documents

• Newberry drawing - NB15000FSD120250 (PDF)
• Newberry STI-Flameshield & STI-F921 Double-Wall Tanks product page

Shipping and Warranty

• Manufacture Lead Time: 24-26 Weeks
• Ships From (State): West Memphis, AR
• Lead time with piping package: 26-28 Weeks

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information

Newberry Tanks are guaranteed to be free from defective workmanship and material for a period of one (1) year. Newberry's obligation under this warranty is limited to repair or replacement, subject to its terms and cost limitations. Any modification or alteration of the product without Newberry's prior written consent voids the applicable warranties. Newberry tanks are not guaranteed against corrosion. Newberry excludes incidental, special, indirect, and consequential damages, and Newberry's total liability for all damages is limited to the original purchase price of the tank. For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com.
