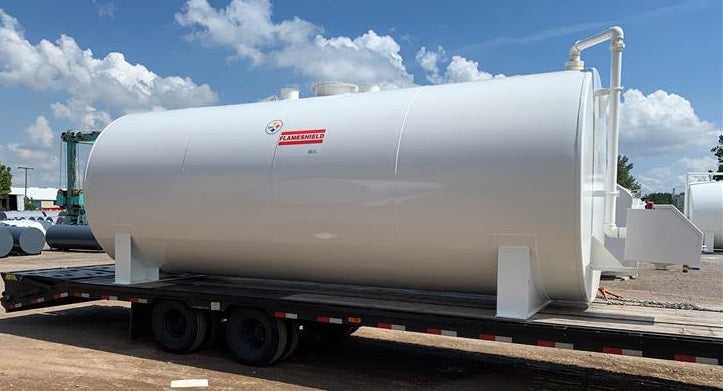

Newberry 10,000 Gallon UL-142 Double Wall Flameshield Tank (SKU: NB10000FSD096250)

Description

The Newberry 10,000 Gallon UL-142 Double Wall Flameshield Tank (SKU: NB10000FSD096250) is a high-capacity aboveground storage solution engineered for the safe containment of flammable and combustible liquids. Featuring Newberry’s proven STI FlameShield™ technology, this tank is certified to Steel Tank Institute (STI/SPFA) specifications and meets UL-142 standards for aboveground storage of regulated liquids.

Manufactured with a tight-wrap double-wall design, this Flameshield tank provides integrated secondary containment and delivers 2-hour fire-tested performance in accordance with Southwest Research Institute (SwRI 97-04) requirements. Newberry’s time-tested bracket construction ensures exceptional durability, stability, and long service life for large-scale fuel, diesel, and lubricant storage applications.

Constructed from heavy-duty steel and finished with a protective gray primer coating, the tank offers excellent corrosion resistance and reliable performance in demanding commercial, industrial, agricultural, and fueling environments. Optional accessories including emergency vents, vacuum or updraft vents, fuel pumps, and protective paint coatings are available to enhance safety and customize the tank for specific operational needs.

Key Features

• UL-142 Compliant Construction: Meets standards for aboveground storage of flammable and combustible liquids
• STI FlameShield™ Certified Design: Manufactured to Steel Tank Institute specifications for proven safety and reliability
• 2-Hour Fire-Tested Performance: Provides enhanced protection during fire exposure conditions
• Double Wall Construction: Integrated secondary containment helps prevent leaks and environmental concerns
• Heavy-Duty Steel Construction: Built for maximum strength, durability, and long-term performance
• 10,000-Gallon Capacity: Ideal for bulk fuel, diesel, oil, and lubricant storage applications
• Bracket-Mounted Configuration: Provides secure placement and dependable structural support
• Optional Accessories Available: Supports vents, fuel pumps, and protective coating upgrades

Specifications

• Part Number / SKU: NB10000FSD096250
• Tank Capacity: 10,000 Gallons
• Tank Type: Double Wall Flameshield Tank
• Dimensions: 324″ L × 96″ W × 96″ H
• Approximate Weight: 14,500 lbs
• Construction Material: Steel (Double Wall)
• Finish: Gray Primer Coating
• Compliance: UL-142, STI/SPFA Flameshield, SwRI 97-04 Tested
• Configuration: Aboveground Horizontal Bracket-Mounted Tank

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: Ships Within 5 business days

• Ships From (State): Delano, MN - 55328

Shipping charges are calculated at checkout based on delivery location, size, weight, and carrier requirements. Each tank is manufactured in the USA under strict quality control standards to ensure reliable long-term performance.

Warranty Information

Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.

Price Match Guarantee

If you find the Newberry 10,000 Gallon UL-142 Double Wall Flameshield Tank (SKU: NB10000FSD096250) at a lower price from an authorized distributor within 6 months of purchase, we will match the price and refund the difference.
