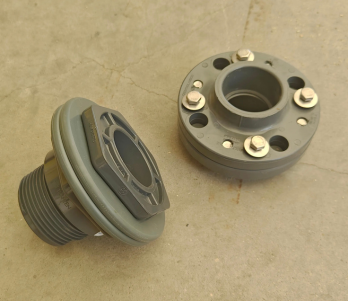

CorGal Sch. 80 PVC Atmospheric Wall Penetration Flange Set

Description

A Schedule 80 PVC bolted wall penetration flange set from Water Storage Tanks, Inc. for connecting inlet, outlet, overflow and makeup piping through the wall of a CorGal corrugated galvanized steel water tank.

The set includes the inner flange, tapped outer flange, gasket, 18-8 stainless steel hex head cap screws and stainless steel neoprene washers. The inner flange bolts through the tank liner into the outer flange to make the connection watertight.

Key Features

• Schedule 80 PVC
• Bolted wall penetration through the tank liner
• Atmospheric service: not rated for pressures above 10 psi
• 18-8 stainless steel cap screws with stainless neoprene washers
• Made for CorGal® tanks by Water Storage Tanks, Inc.

Specifications

• Manufacturer: Water Storage Tanks, Inc. (CorGal®)

Size options

• 2 in: Part number PF-PVC-ATM-WM-2.0, 3 lb
• 3 in: Part number PF-PVC-ATM-WM-3.0, 5 lb
• 4 in: Part number PF-PVC-ATM-WM-4.0, 7 lb
• 6 in: Part number PF-PVC-ATM-WM-6.0, 10 lb
• 8 in: Part number PF-PVC-ATM-WM-8.0, 20 lb

Applications

• Tank inlet and outlet connections
• Overflow connections
• Makeup water lines

Frequently Asked Questions

Will it fit my tank?
These accessories are made by Water Storage Tanks, Inc. for its CorGal corrugated galvanized steel tanks. Contact Tank Supply Direct with your tank model and we will confirm fit and placement.

How does it ship?
Accessories ship from Austin, Texas with the tank materials, FOB origin, with a manufacture lead time of about 6 weeks.

Manufacturer Documents

• CorGal tank accessories (Water Storage Tanks, Inc.)
• CorGal warranty information
• WST claims handling policy (PDF)

Shipping and Warranty

Shipping Information

• Manufacture Lead Time: 6 Weeks
• Ships From (State): TX

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Materials sold by Water Storage Tanks, Inc. are subject to WST's standard warranty terms and claims handling policy. Claims for missing or damaged materials must be reported promptly, and hidden shipping damage within 5 calendar days of receipt. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
