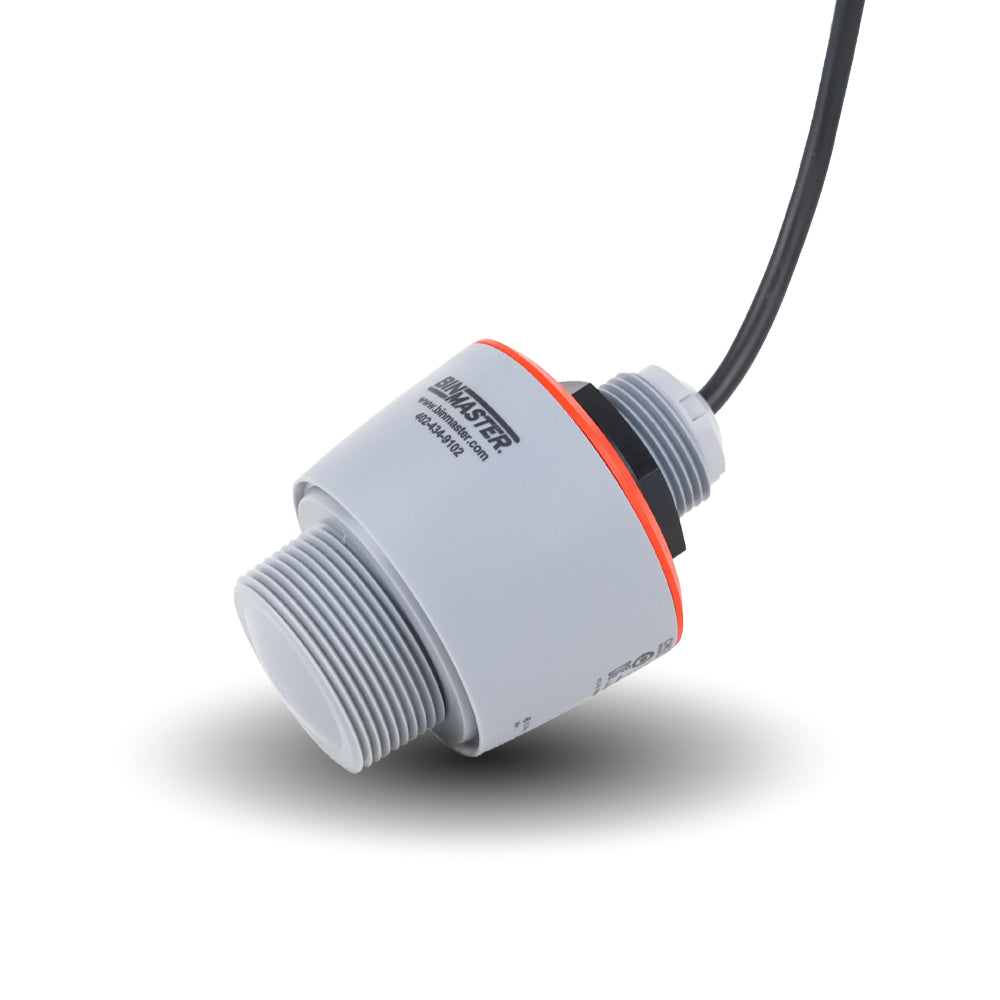

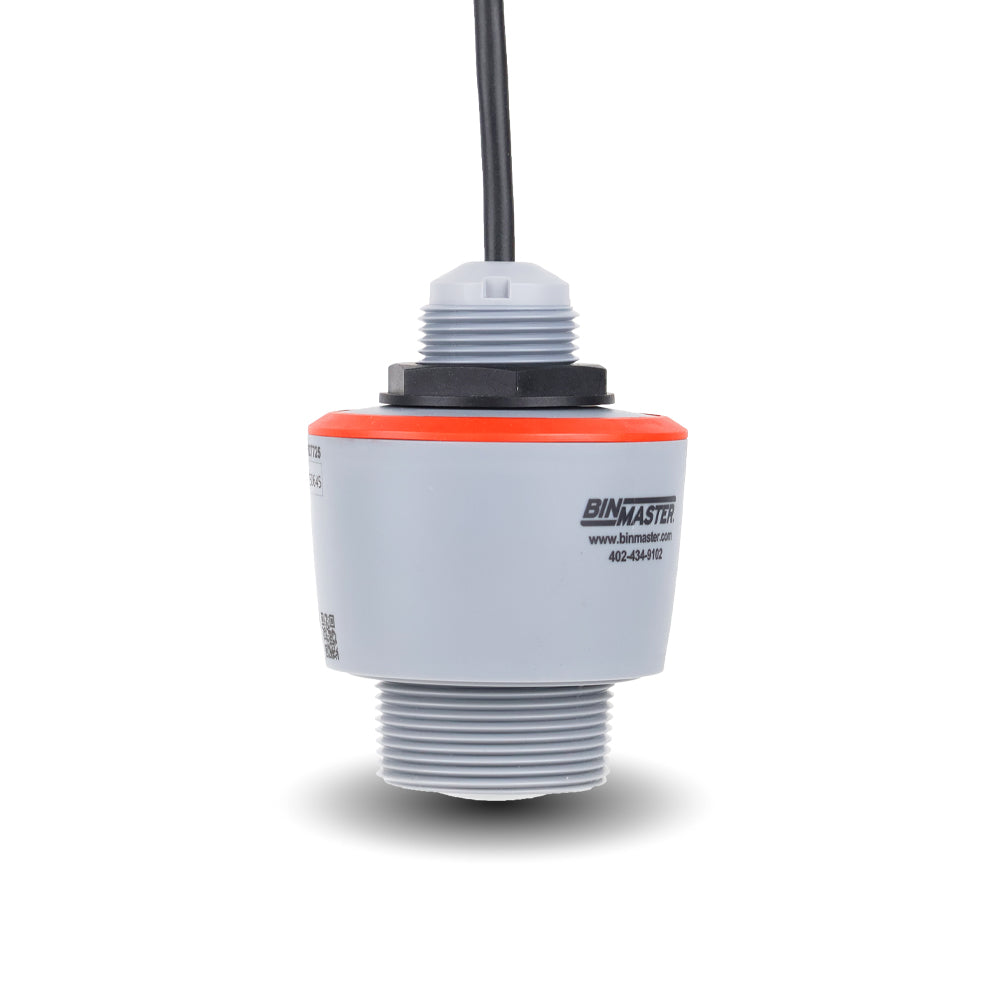

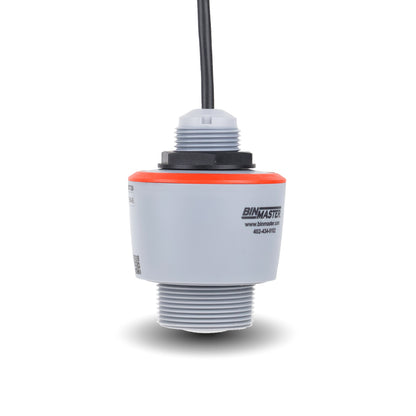

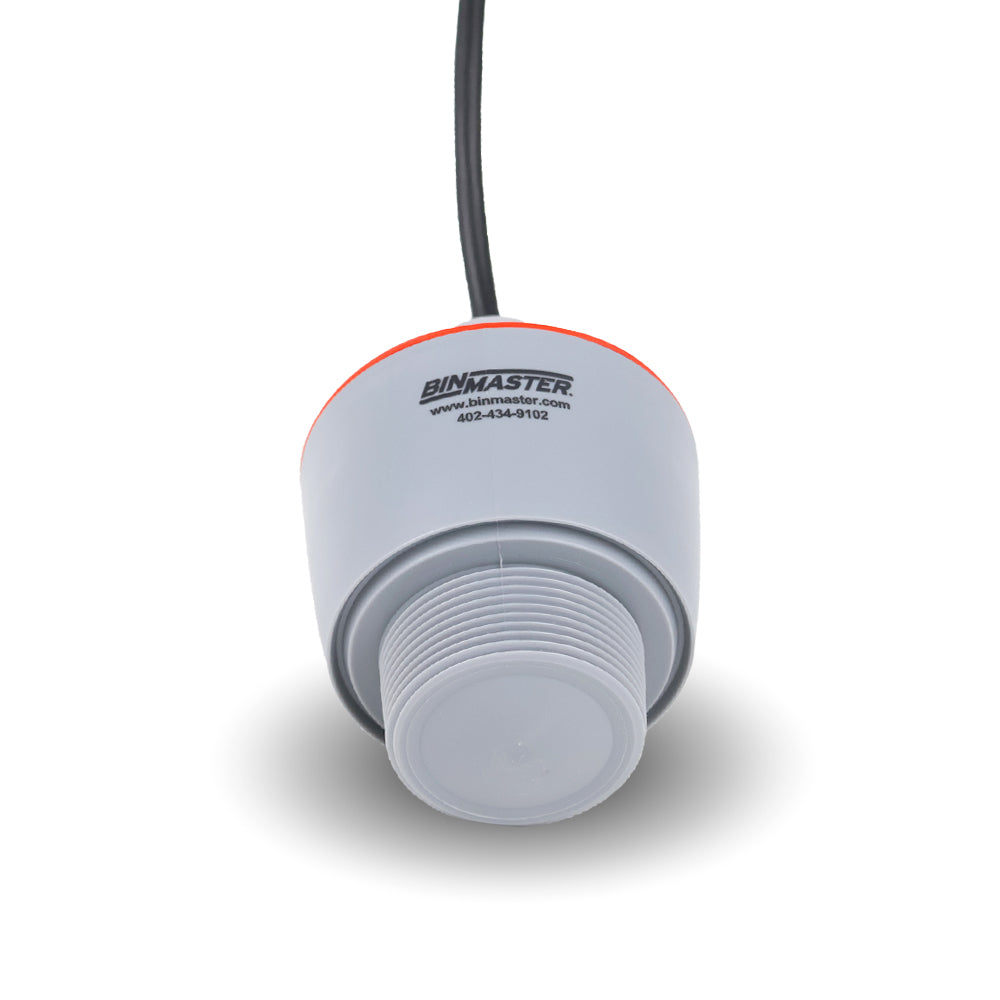

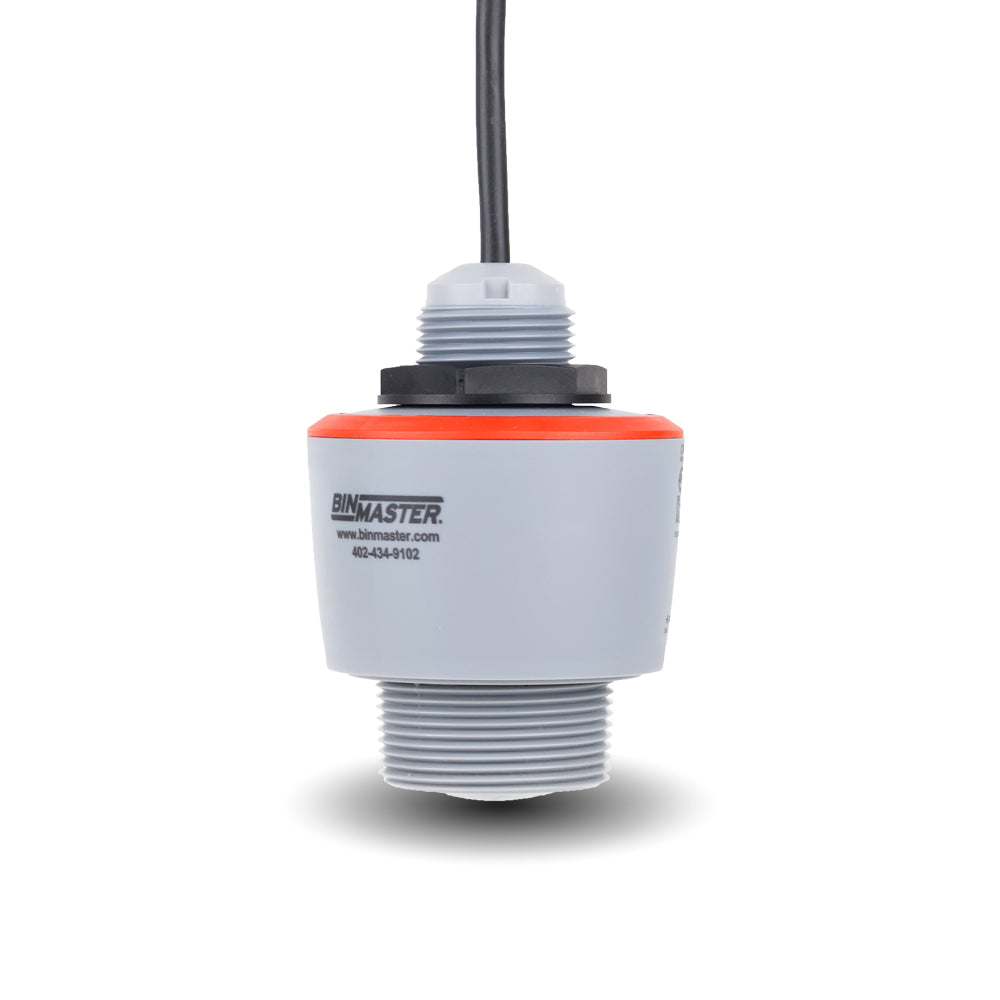

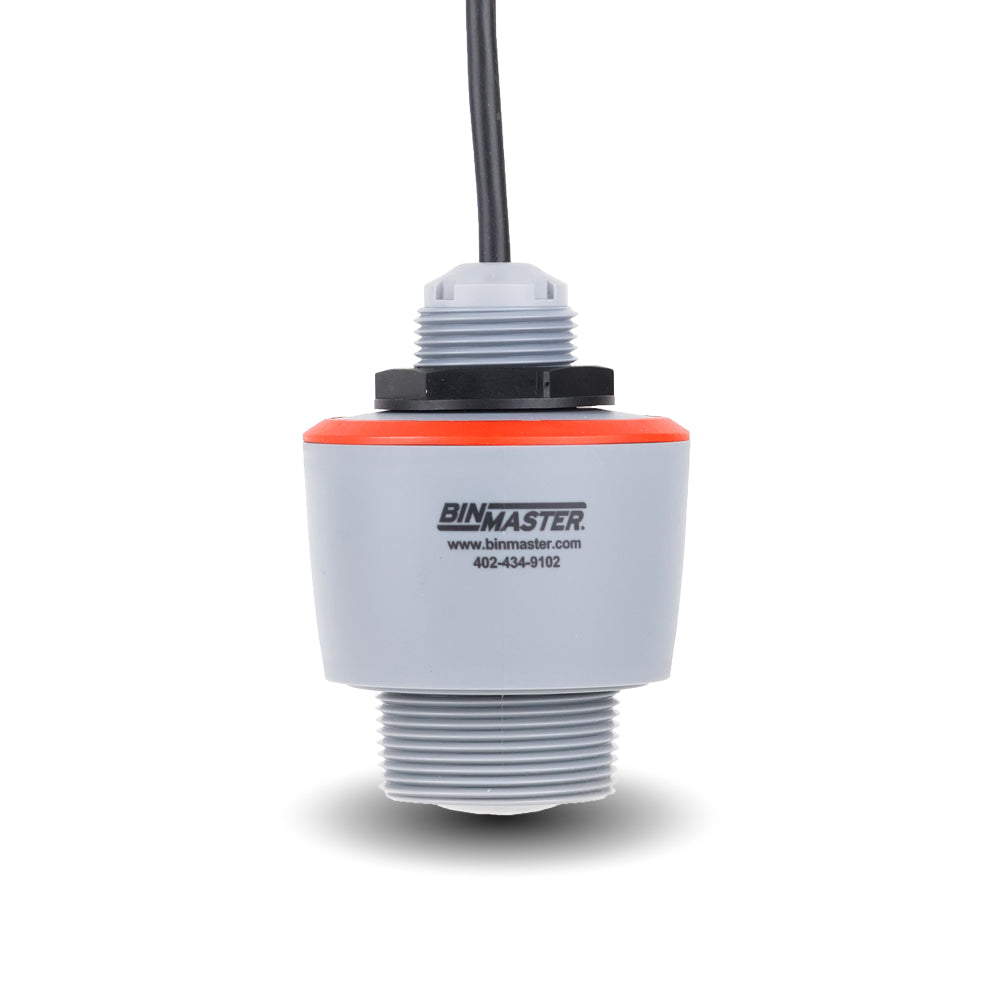

BinMaster CNCR-120 80 GHz Compact Radar Level Sensor, 49 ft, 1.5" NPT (MPN: CNCR-120.XXXXXNBHB)

Description

The BinMaster CNCR-120 (MPN: CNCR-120.XXXXXNBHB) is a compact 80 GHz non-contact radar sensor for continuous level measurement of liquids or bulk solids, with a measuring range of 49 ft (15 m) in liquids and an accuracy of +/- 0.08 in (2 mm). It mounts in a 1.5" threaded NPT opening, has a top pigtail connection with a 32 ft (10 m) polyurethane pigtail, and provides a two-wire 4-20 mA/HART® output on 12-35 VDC. It is approved for unclassified areas (non-EX environments). The sensor body measures 2.99" in diameter and 4.28" tall. The CNCR-110 (MPN: CNCR-110.XXXXXNBHB) uses the same housing with a 26 ft (8 m) range and 4-20 mA output.

The CNCR series focuses its 80 GHz signal into a narrow 8° beam that BinMaster describes as reliable in dust, condensation, turbulence and foam, with no dead zone in front of the antenna. The sensor is set up over Bluetooth from a phone or tablet app, and level data can go to BinCloud® software, a local display or a PLC.

Key Features

• 80 GHz radar: Narrow 8° beam angle, no dead zone
• Range: 49 ft (15 m) in liquids
• Accuracy: +/- 0.08 in (2 mm)
• Output: Two-wire 4-20 mA/HART®, 12-35 VDC
• Bluetooth setup: Configure and view levels from a phone or tablet
• Chemical-resistant housing: PVDF antenna, process fitting and housing with FKM seal, IP66/IP68 (3 bar)
• Compact: 1.5" NPT process connection fits existing vessel openings

Specifications

• MPN: CNCR-120.XXXXXNBHB
• Measuring Principle: 80 GHz non-contact radar (FMCW)
• Measuring Range: 49 ft (15 m) liquids
• Recommended Range: up to 32.81 ft (10 m)
• Accuracy: +/- 0.08 in (2 mm)
• Beam Angle: 8°
• Output: Two-wire 4-20 mA/HART®
• Supply Voltage: 12-35 VDC
• Mounting: 1.5" threaded NPT
• Connection: 32 ft (10 m) polyurethane pigtail, top cable outlet
• Materials: PVDF antenna, process fitting and housing; FKM process seal
• Enclosure Rating: IP66/IP68 (3 bar)
• Process Pressure: -14.5 to +43.51 psi (-1 to +3 bar)
• Process Temperature: -40° to +176°F (-40° to +80°C)
• Approvals: Unclassified area, non-EX environment
• Dimensions: 2.99" diameter x 4.28" tall
• Weight: 1.5 lb (0.7 kg) instrument plus 0.1 kg/m of cable
• Manufacturer: BinMaster
• Ships From: Lincoln, NE

Applications

• Continuous level of liquids or bulk solids in tanks, bins and silos
• Indoor and outdoor vessels with dust, humidity, steam, vapor or condensation
• Open-air level measurement

Frequently Asked Questions

What is it made of?
The antenna, process fitting and housing are PVDF with an FKM process seal, rated IP66/IP68 (3 bar).

How far can it measure?
Up to 49 ft (15 m) in liquids, with an accuracy of +/- 0.08 in (2 mm). BinMaster recommends up to 32.81 ft (10 m).

What output does it have?
A two-wire 4-20 mA/HART® output powered by 12-35 VDC.

What can I use it for?
BinMaster rates the CNCR series for continuous, non-contact level measurement of liquids and bulk solids in tanks, bins and silos, including open-air applications.

What other versions are there?
The CNCR-110 (MPN: CNCR-110.XXXXXNBHB) uses the same housing with a 26 ft (8 m) range and 4-20 mA output.

Can I order a different configuration?
Yes. BinMaster offers other mounting, cable, output and approval options for this sensor. Contact Tank Supply Direct at info@tanksupplydirect.com with your application and we will quote the exact model.

How long does it take to ship, and where does it ship from?
BinMaster builds it to order with a manufacture lead time of about 1 week, and it ships from Lincoln, NE. Freight or parcel shipping is calculated at checkout.

Who makes it?
BinMaster of Lincoln, Nebraska makes the CNCR-120, MPN CNCR-120.XXXXXNBHB.
