800 Gallon Texas Precast Round Concrete Pump Tank (MPN 800R PUMP TANK)

Description

The Texas Precast Model 800R PUMP TANK is a 800-gallon precast concrete pump tank cast at the Texas Precast plant in Santa Fe, Texas. It is poured at a minimum 6,000 PSI compressive strength at 28 days and reinforced with 6x6 10-gauge ASTM A185 welded wire and #3 Grade 60 rebar. Inlet and outlet penetrations use watertight seals meeting ASTM C923. The manufacturer drawing lists an approximate working capacity of 836 gallons.

Key Features

• 6,000 PSI Precast Concrete: Poured monolithically and rated at a minimum 6,000 PSI compressive strength at 28 days
• ASTM C923 Watertight Seals: Inlet and outlet penetrations are sealed watertight to ASTM C923
• Engineered Reinforcement: 6x6 10-gauge ASTM A185 65 KSI welded wire plus #3 Grade 60 rebar per engineering specification
• Texas Manufactured: Cast in Santa Fe, Texas and shipped from the plant
• Round Monolithic Form: Cast in a round form with a separate reinforced lid

Specifications

• Nominal Capacity: 800 Gallons
• Approximate Capacity (per drawing): 836 Gallons
• Dimensions: 68" L x 68" W x 67 1/4" H (outside)
• Approximate Weight: 4,860 lbs
• Shape: Round
• Material: Precast concrete, 6,000 PSI minimum compressive strength at 28 days
• Reinforcement: 6x6 10-gauge ASTM A185 65 KSI welded wire continuous around the tank perimeter, plus #3 Grade 60 rebar per engineering specification
• Lid Reinforcement: #3 rebar at 6" on center both ways, plus a mat of 6x6 10-gauge wire
• Pipe Penetrations: Inlet and outlet seals are watertight and meet ASTM C923
• Partition Walls: Where present, poured monolithically
• Manufacturer: Texas Precast, L.L.C. - Santa Fe, Texas
• Ships From: Texas (TX)
• Manufacturer Model: 800R PUMP TANK

Applications

• Effluent pump / dosing tank in an on-site wastewater treatment system
• Below-ground installation with a minimum 12" of compacted base material on all sides

Manufacturer Documents

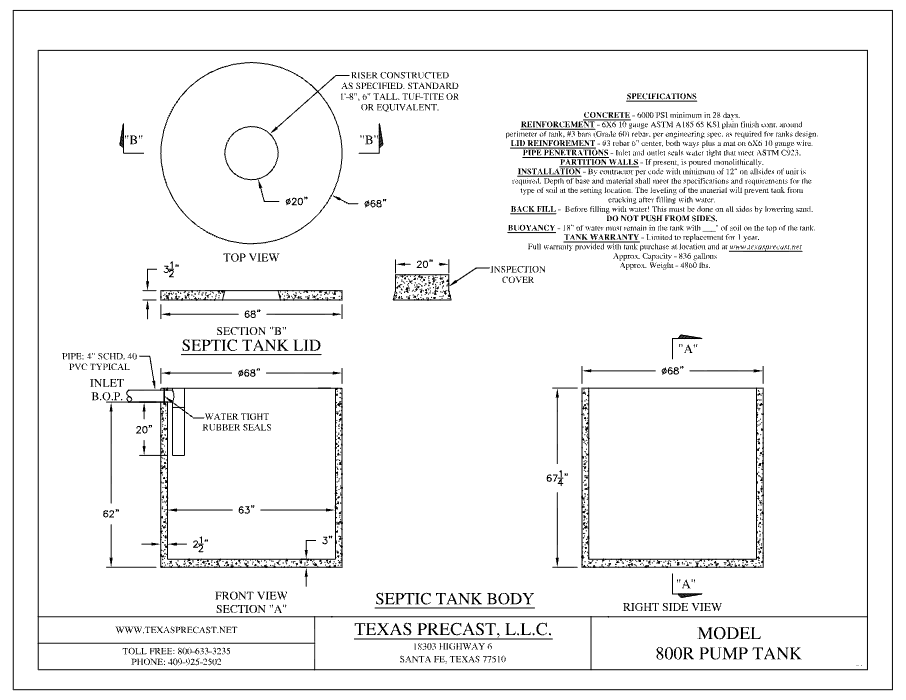

• Model 800R PUMP TANK dimensional drawing (PDF)

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): TX

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Texas Precast warrants the tank against defects and is limited to replacement for 1 year. The full written warranty is provided with the tank at the time of purchase and at texasprecast.net.
