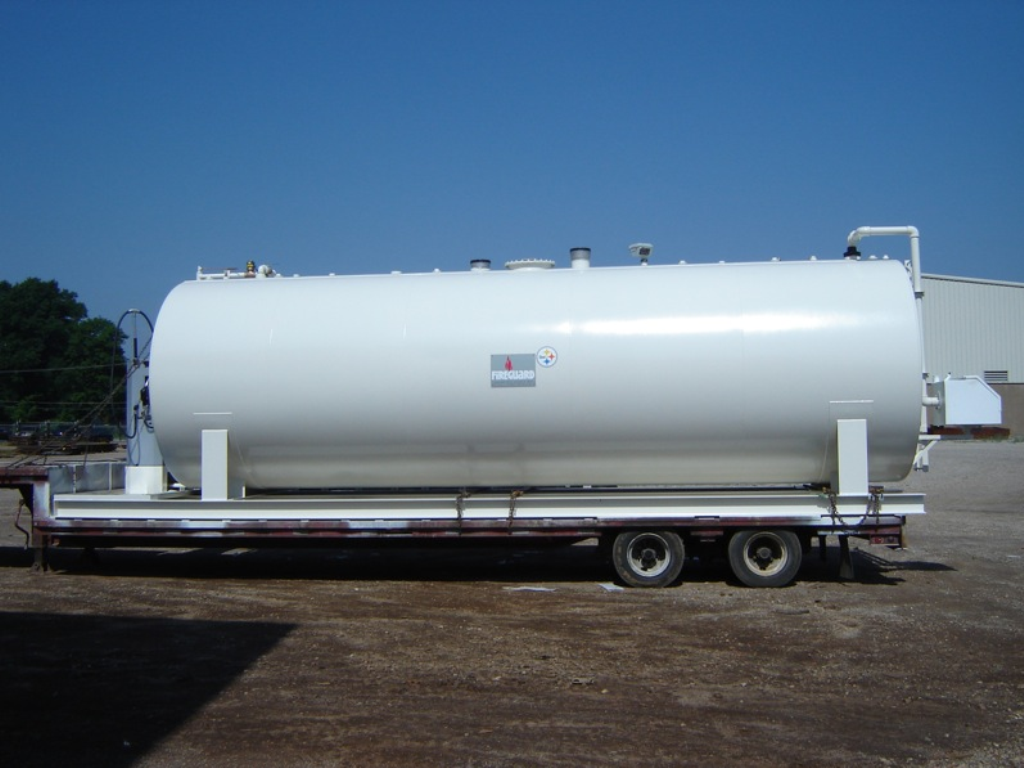

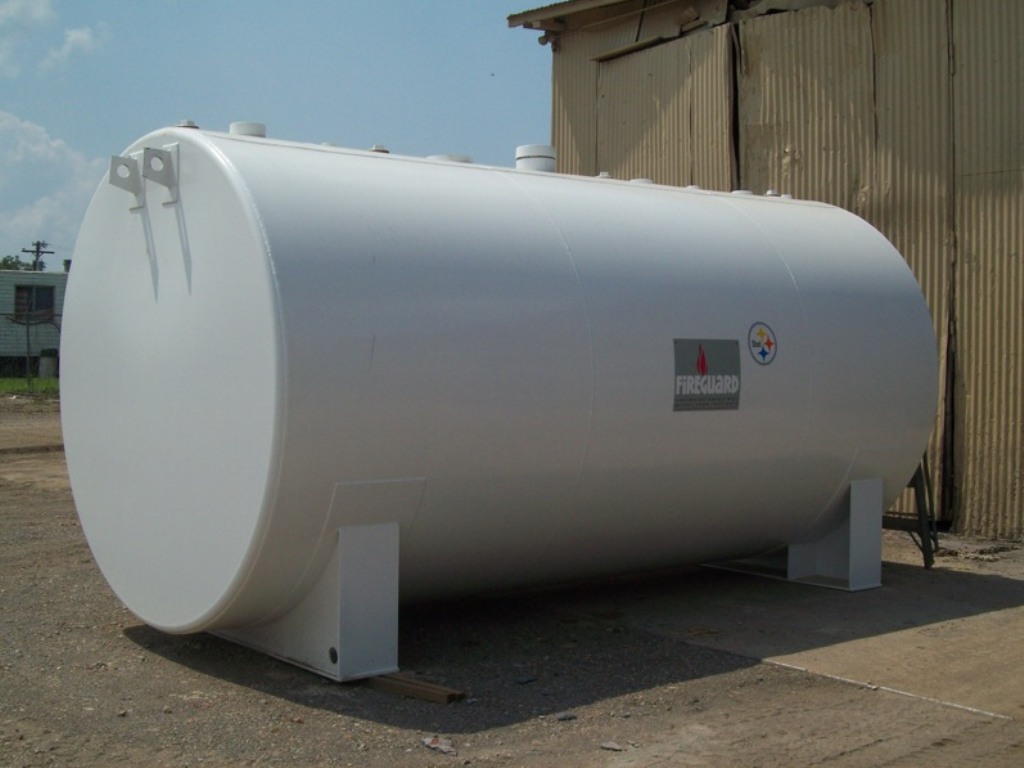

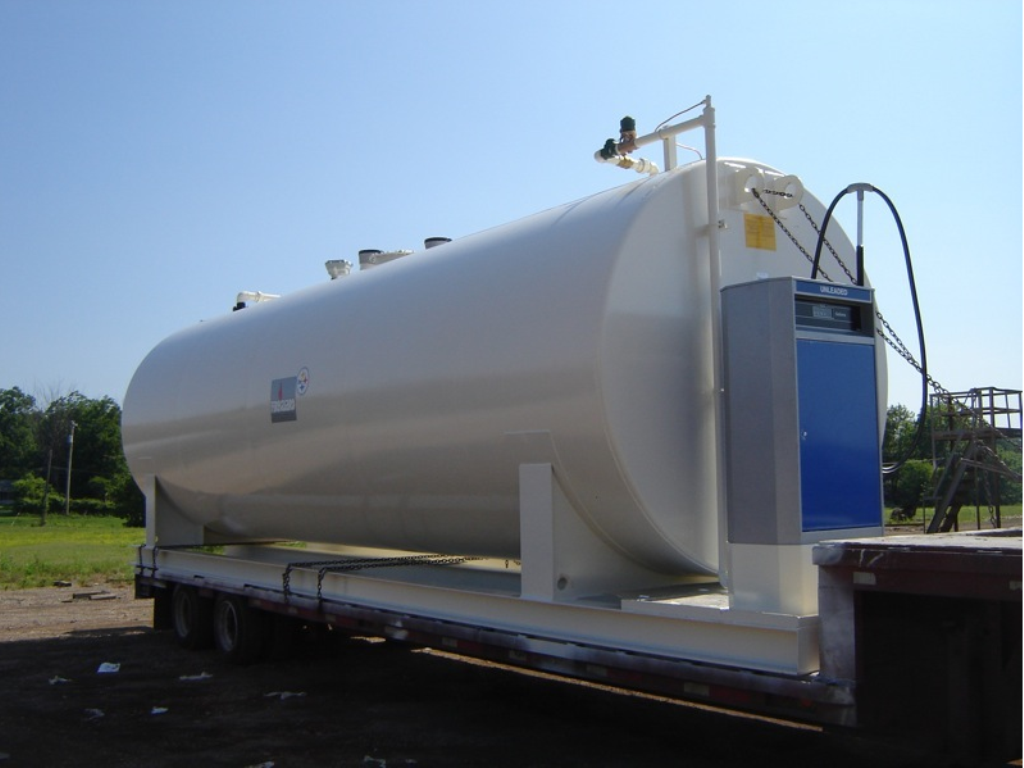

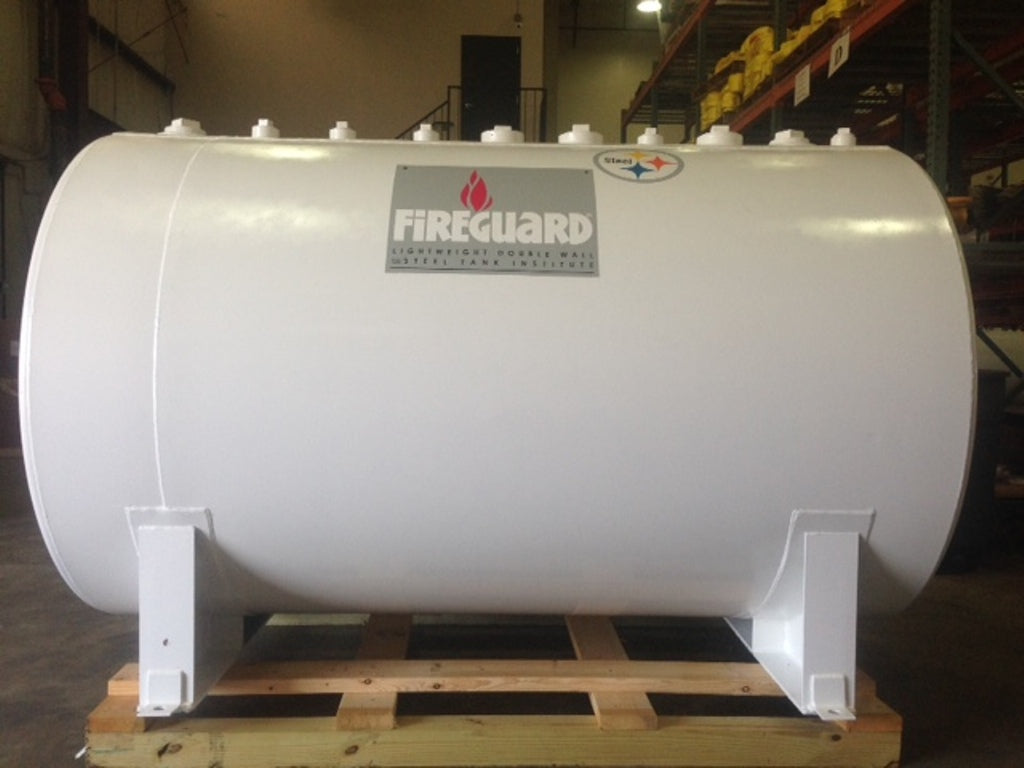

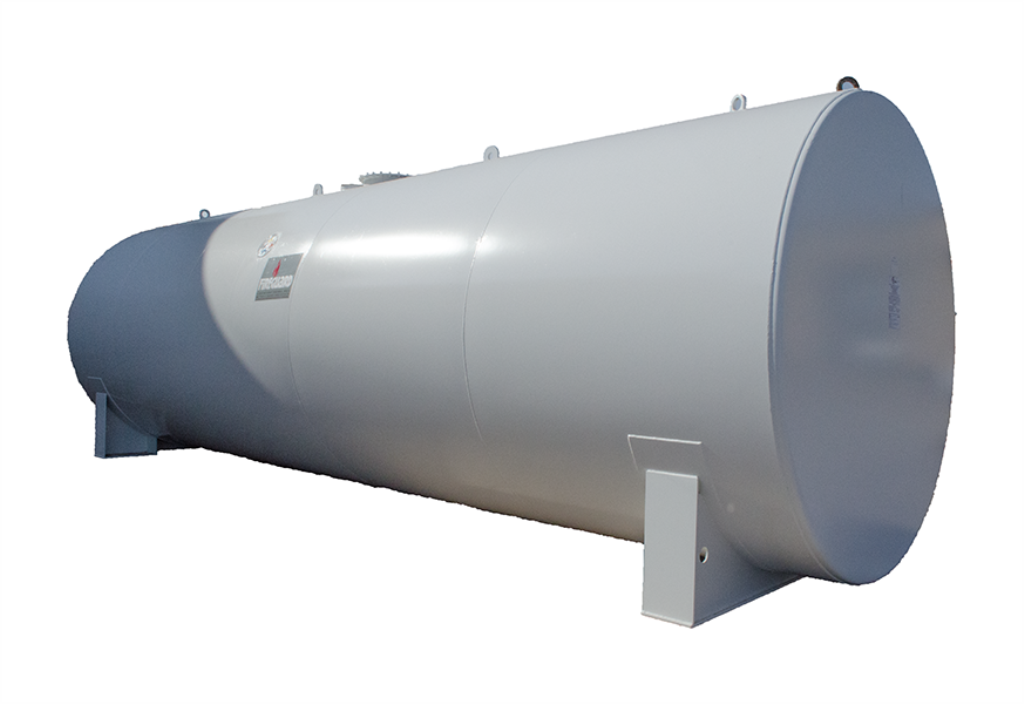

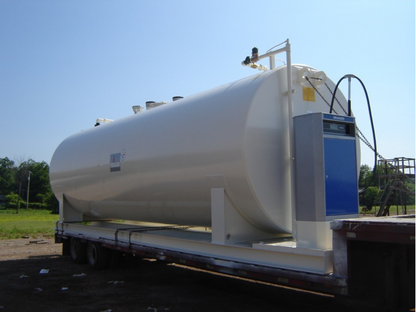

6000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB06000FGD096250)

The 6000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB06000FGD096250) is an ultra-high-capacity, fire-protected aboveground fuel storage solution engineered for large-scale commercial, industrial, and fuel distribution operations. Built and certified to UL 2085 standards, this tank delivers advanced fire resistance, secondary containment, and long-term structural durability for critical high-volume fuel storage applications.

Constructed with a thermally insulated double-wall Fireguard design, this cylindrical saddle tank provides superior safety performance and environmental protection while meeting strict industry compliance standards. It is manufactured in accordance with UL 142, NFPA 30, NFPA 30A, and STI SP001/SPFA requirements, ensuring dependable performance in regulated fuel storage environments.

The heavy-duty saddle-mounted cylindrical configuration is designed for permanent aboveground installation in fuel terminals, industrial sites, transportation hubs, and large-scale distribution facilities. Its extreme capacity supports continuous fueling operations while maintaining safe, efficient, and compliant storage conditions.

The interstitial space between the inner and outer walls allows for continuous leak detection monitoring, adding an additional layer of safety and environmental assurance. Finished with a durable industrial-grade protective coating system, the tank is engineered to withstand harsh weather conditions and long-term outdoor exposure.

Key Features

• UL 2085 Fireguard Certified Construction: Provides advanced fire resistance and secondary containment
• Dual Wall Thermally Insulated Design: Enhances safety and environmental protection
• Ultra-Large 6000 Gallon Capacity: Designed for industrial-scale fuel storage and distribution
• Cylindrical Saddle Tank Configuration: Stable aboveground installation for permanent infrastructure
• UL 142, NFPA 30 & NFPA 30A Compliant: Meets strict fuel storage safety regulations
• Enhanced Ballistic Resistance (UL 752 Level 9): Increased structural protection in high-security environments
• Interstitial Leak Detection Capability: Continuous monitoring between tank walls
• Compatible with Multiple Fuels: Suitable for diesel, gasoline, biodiesel, ethanol blends, and other approved fuels
• Industrial Grade Construction: Built for long-term commercial and fleet fueling operations
• 30-Year Limited Warranty: Backed by STI/SPFA-certified manufacturing standards

Specifications

• Part Number: NB06000FGD096250
• Tank Capacity: 6000 Gallons
• Tank Style: Dual Wall Fireguard Cylindrical Saddle Tank
• Inner Dimensions: 192″ L × 96″ W × 96″ H
• Outer Dimensions: 204″ L × 102″ W × 102″ H
• Approximate Weight: 19,700 lbs
• Construction Material: Heavy-Duty Steel (Dual Wall Insulated)
• Compliance: UL 2085, UL 142, NFPA 30, NFPA 30A, STI SP001/SPFA
• Configuration: Aboveground Fire-Protected Cylindrical Saddle Tank

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: Ships Within 5 business days

• Ships From (State): Delano, MN - 55328

Products are subject to freight shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Each tank is manufactured under strict third-party quality control inspection programs and built in the USA using high-quality materials for long-term industrial reliability.
