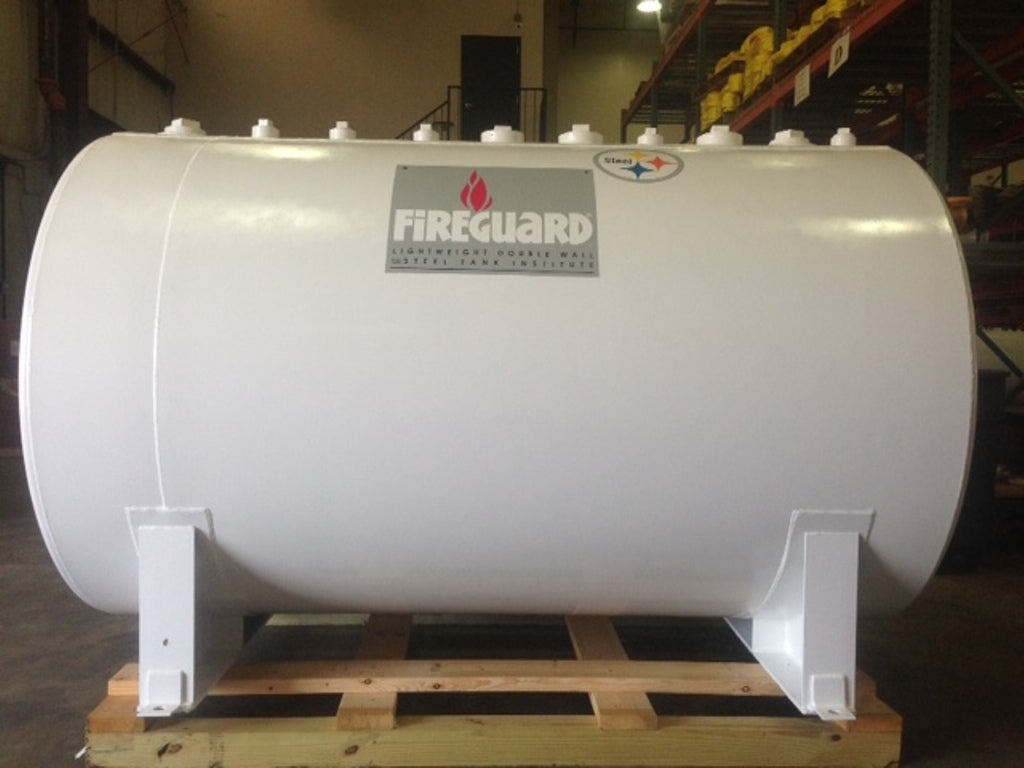

550 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB00550FGD048)

The 550 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB00550FGD048) is a premium aboveground fuel storage solution designed for high-performance commercial, industrial, and fleet fueling applications. Engineered and certified to meet UL 2085 standards, this fire-protected tank provides enhanced safety, durability, and environmental protection for regulated fuel storage environments.

Built with a double-wall insulated Fireguard construction, this cylindrical saddle tank delivers superior fire resistance, secondary containment, and structural integrity. It is designed to comply with UL 142, NFPA 30, NFPA 30A, and STI SP001/SPFA standards, ensuring reliable performance and compliance across demanding fuel storage operations.

The saddle-style support design provides stability during installation and operation, making it suitable for permanent aboveground fuel storage systems. Its cylindrical shape and reinforced steel construction maximize strength while maintaining efficient use of space in commercial fueling areas, industrial yards, and remote fueling stations.

Finished with a durable industrial-grade protective coating, the tank is built for long-term outdoor use and resistance against environmental exposure. The interstitial space allows for leak detection monitoring, adding an additional layer of safety and compliance assurance.

Key Features

• UL 2085 Fireguard Certified Construction: Provides enhanced fire resistance and secondary containment
• Dual Wall Insulated Design: Improves safety and environmental protection
• Cylindrical Saddle Tank Configuration: Stable aboveground mounting for permanent installations
• UL 142, NFPA 30 & NFPA 30A Compliant: Meets major fuel storage safety standards
• Interstitial Leak Detection Capability: Allows monitoring between inner and outer tank walls
• Enhanced Ballistic Resistance (UL 752 Level 9): Added structural protection in high-risk environments
• Compatible with Multiple Fuels: Supports gasoline, diesel, biodiesel, ethanol blends, and other approved fuels
• Industrial Grade Construction: Designed for long-term commercial and fleet fueling use
• Extended Warranty Eligible: Backed by STI/SPFA-certified manufacturing standards

Specifications

• Part Number: NB00550FGD048
• Tank Capacity: 550 Gallons
• Tank Style: Dual Wall Fireguard Cylindrical Saddle Tank
• Inner Dimensions: 72″ L × 48″ W × 48″ H (10 Gauge)
• Outer Dimensions: 84″ L × 54″ W × 54″ H (10 Gauge)
• Approximate Weight: 3,350 lbs
• Construction Material: Heavy-Duty Steel (Dual Wall Insulated)
• Compliance: UL 2085, UL 142, NFPA 30, NFPA 30A, STI SP001/SPFA
• Configuration: Aboveground Fire-Protected Cylindrical Saddle Tank

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: Ships Within 5 business days

• Ships From (State): Delano, MN - 55328

Products are subject to freight shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Each tank is manufactured under strict third-party quality control inspections and built in the USA using high-quality materials for long-term commercial reliability.

Warranty Information

Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.

Price Match Guarantee

If you find the 550 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB00550FGD048) at a lower price from an authorized distributor within 6 months of purchase, we will match the price and refund the difference.

Contact: info@tanksupplydirect.com
