550 Gallon DW Skid Package - 12v pump (SKU: NB00550DWSPACKAGE)

Description

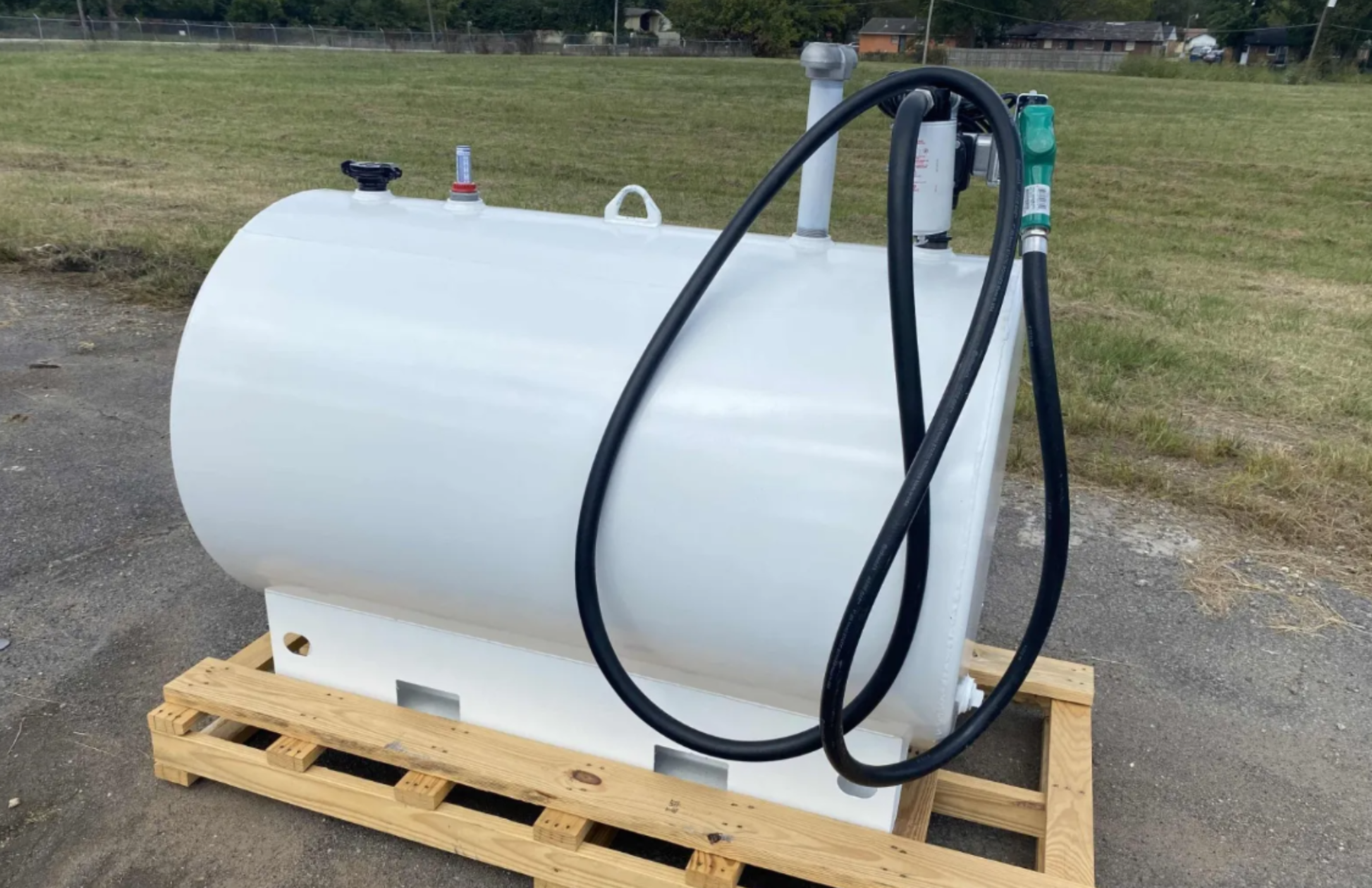

The 550 Gallon Newberry UL 142 Double Wall Skid Tank Package with 12V GPI Pump (SKU: NB00550DWSPACKAGE) is a complete aboveground fuel storage and dispensing solution designed for farms, construction sites, fleet operations, equipment yards, commercial facilities, and remote fueling applications. Engineered to meet UL 142 standards, this turnkey package combines a heavy-duty double-wall steel skid tank with the essential equipment required for convenient on-site fuel storage and transfer.

The double-wall steel construction provides built-in secondary containment, offering an additional layer of protection against leaks while eliminating the need for a separate containment basin in many installations. The 550-gallon capacity provides substantial fuel storage while the skid-mounted configuration offers a stable platform for commercial and industrial use.

Equipped with a 12V GPI fuel transfer pump capable of delivering up to 20 GPM, the system provides fast and efficient dispensing without requiring a 115V electrical connection. An 18-foot dispensing hose, automatic shutoff nozzle, 30-micron fuel filter, locking fill cap, Krueger liquid level gauge, and required venting components are included to create a convenient turnkey fueling package.

Key Features

• UL 142 Compliant Construction: Designed for aboveground storage of compatible flammable and combustible liquids
• Double Wall Steel Design: Provides integrated secondary containment for enhanced leak protection
• 550 Gallon Capacity: Provides substantial on-site fuel storage for commercial, agricultural, and industrial operations
• 12V GPI Fuel Pump: Delivers up to 20 gallons per minute for efficient fuel dispensing
• 18-Foot Dispensing Hose: Provides extended reach for fueling vehicles and equipment
• Automatic Shutoff Nozzle: Helps provide controlled and convenient fuel dispensing
• 30-Micron Fuel Filter: Helps remove contaminants before fuel reaches equipment or vehicles
• Krueger Liquid Level Gauge: Provides convenient monitoring of remaining tank contents
• Locking Fill Cap: Helps protect the fill point and reduce unauthorized access
• Integrated Venting System: Includes atmospheric and emergency venting components
• White Industrial Enamel Finish: Provides corrosion protection and a clean professional appearance
• Turnkey Fueling Package: Tank, pump, hose, nozzle, filtration, gauge, and venting components supplied as one coordinated system

Specifications

• Part Number: NB00550DWSPACKAGE
• Tank Capacity: 550 Gallons
• Tank Style: Double Wall Skid Tank Package
• Tank Dimensions: Approximately 48″ Diameter × 72″ Long
• Overall Package Dimensions: Approximately 72″ L × 68″ W × 48″ H
• Construction Material: Double-Wall Steel
• Secondary Containment: Integral Double-Wall Construction
• Pump: GPI Fuel Transfer Pump
• Pump Voltage: 12V DC
• Pump Flow Rate: Up to 20 GPM
• Dispensing Hose: 18 Feet
• Nozzle: Automatic Shutoff
• Fuel Filter: 30-Micron
• Fill Cap: Locking
• Level Gauge: Krueger Liquid Level Gauge
• Venting: Atmospheric and Emergency Venting
• Finish: White Industrial Enamel
• Compliance: UL 142
• Configuration: Turnkey Aboveground Fuel Storage and Dispensing Package

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: 5-7 weeks
• Shipping Method: LTL Freight
• Ships From: Manufacturer Facility

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Each tank is manufactured in the USA using high-quality materials and strict quality control standards—built for long-term, dependable use in demanding commercial, agricultural, and industrial applications.

Warranty Information

Warranty coverage varies by manufacturer and product type. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
