500 Gallon XLPE Peabody Engineering ProChem Solid Top Process Chemical Tank (MPN: 01-36303)

Description

The Peabody Engineering 500 Gallon XLPE ProChem Solid Top Process Chemical Tank (MPN 01-36303) is a polyethylene tank molded from crosslinked polyethylene (XLPE), with a solid top and access lid for covered chemical storage and process feed. The tank measures 48" in shell diameter and 75.183" overall height and has a 16" access lid. Also available in this size: 1.5 SG (MPN 01-36301); 1.9 SG (MPN 01-36302); Polypropylene (MPN 01-36451); PVDF (MPN 01-36453).

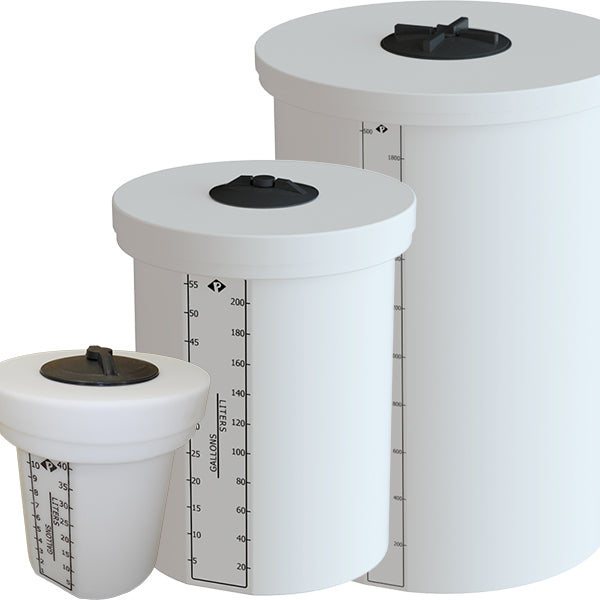

ProChem solid top process chemical tanks are compact closed-top tanks for chemical storage and process feed, offered in LPE, XLPE, polypropylene and PVDF.

Key Features

• Capacity: 500 gallons
• Material: Crosslinked polyethylene (XLPE)
• Solid Top: Closed top with access lid at the size listed
• Made in the USA: Built by Peabody Engineering and shipped from Liberty, South Carolina

Specifications

• Manufacturer Part Number: 01-36303
• Capacity: 500 gallons
• Material: Crosslinked polyethylene (XLPE)
• Lid Size: 16"
• Top Diameter: 52.625"
• Shell Diameter: 48"
• Overall Height: 75.183"
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Chemical storage
• Process chemical feed

Frequently Asked Questions

What is the Peabody 500-gallon closed top process chemical tank made of?
It is a polyethylene tank molded from crosslinked polyethylene (XLPE).

What specific gravity is it rated for?
Peabody does not publish a specific gravity rating for this tank. Contact Tank Supply Direct before ordering it for liquids heavier than water.

What are the dimensions?
The tank measures 48" in shell diameter and 75.183" overall height and has a 16" access lid.

What can I use it for?
Chemical storage; Process chemical feed.

Is it NSF/ANSI/CAN 61 certified?
Yes. Peabody lists this resin and size as NSF/ANSI/CAN 61 certified.

What other versions come in this size?
1.5 SG (MPN 01-36301); 1.9 SG (MPN 01-36302); Polypropylene (MPN 01-36451); PVDF (MPN 01-36453).

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Freight is calculated at checkout.

Who makes it?
Peabody Engineering. Manufacturer part number: 01-36303.

Manufacturer Documents

• Peabody catalog page: ProChem Solid Top Process Chemical Tank

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Peabody Engineering standard-duty tanks carry a full 3-year manufacturer warranty. This standard warranty does not apply to special applications such as sodium hypochlorite or biodiesel; application-specific warranty coverage must be confirmed with Peabody Engineering for those uses. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
