500 Gallon Texas Precast Square Concrete Pump Tank (MPN 500 SQUARE PUMP)

Description

The Texas Precast Model 500 SQUARE PUMP is a 500-gallon precast concrete pump tank cast at the Texas Precast plant in Santa Fe, Texas. It is poured at a minimum 6,000 PSI compressive strength at 28 days and reinforced with 6x6 10-gauge ASTM A185 welded wire and #3 Grade 60 rebar. Inlet and outlet penetrations use watertight seals meeting ASTM C923. The manufacturer drawing lists an approximate working capacity of 550 gallons.

Key Features

• 6,000 PSI Precast Concrete: Poured monolithically and rated at a minimum 6,000 PSI compressive strength at 28 days
• ASTM C923 Watertight Seals: Inlet and outlet penetrations are sealed watertight to ASTM C923
• Engineered Reinforcement: 6x6 10-gauge ASTM A185 65 KSI welded wire plus #3 Grade 60 rebar per engineering specification
• Texas Manufactured: Cast in Santa Fe, Texas and shipped from the plant

Specifications

• Nominal Capacity: 500 Gallons
• Approximate Capacity (per drawing): 550 Gallons
• Dimensions: 65" L x 50" W x 61" H (outside)
• Approximate Weight: 4,980 lbs
• Shape: Rectangular
• Material: Precast concrete, 6,000 PSI minimum compressive strength at 28 days
• Reinforcement: 6x6 10-gauge ASTM A185 65 KSI welded wire continuous around the tank perimeter, plus #3 Grade 60 rebar per engineering specification
• Lid Reinforcement: #3 rebar at 6" on center both ways, plus a mat of 6x6 10-gauge wire
• Pipe Penetrations: Inlet and outlet seals are watertight and meet ASTM C923
• Partition Walls: Where present, poured monolithically
• Manufacturer: Texas Precast, L.L.C. - Santa Fe, Texas
• Ships From: Santa Fe, TX
• Manufacturer Model: 500 SQUARE PUMP

Applications

• Effluent pump / dosing tank in an on-site wastewater treatment system
• Below-ground installation with a minimum 12" of compacted base material on all sides

Frequently Asked Questions

What are the dimensions?
Per the Texas Precast drawing: 65" L x 50" W x 61" H (outside).

How much does it hold?
Nominal capacity: 500 Gallons; Approximate capacity (per drawing): 550 Gallons.

How much does it weigh?
Approximate Weight: 4,980 lbs. It ships by flatbed freight, and the delivery site needs equipment to unload it.

What is it made of?
Precast concrete, 6,000 PSI minimum compressive strength at 28 days.

What can I use it for?
Common uses include effluent pump / dosing tank in an on-site wastewater treatment system; below-ground installation with a minimum 12" of compacted base material on all sides.

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 1-2 Weeks. It ships by flatbed freight from Santa Fe, Texas, and freight is quoted per order: email info@tanksupplydirect.com with your delivery address after you order.

What warranty does it come with?
Texas Precast warrants its products to be free from defects in material and factory workmanship for one year from the date of purchase. The remedy is replacement of the defective goods; labor and consequential damages are not covered. The full warranty text is in the Shipping and Warranty section below.

Who makes it?
Texas Precast, LLC of Santa Fe, Texas (model 500 SQUARE PUMP).

Manufacturer Documents

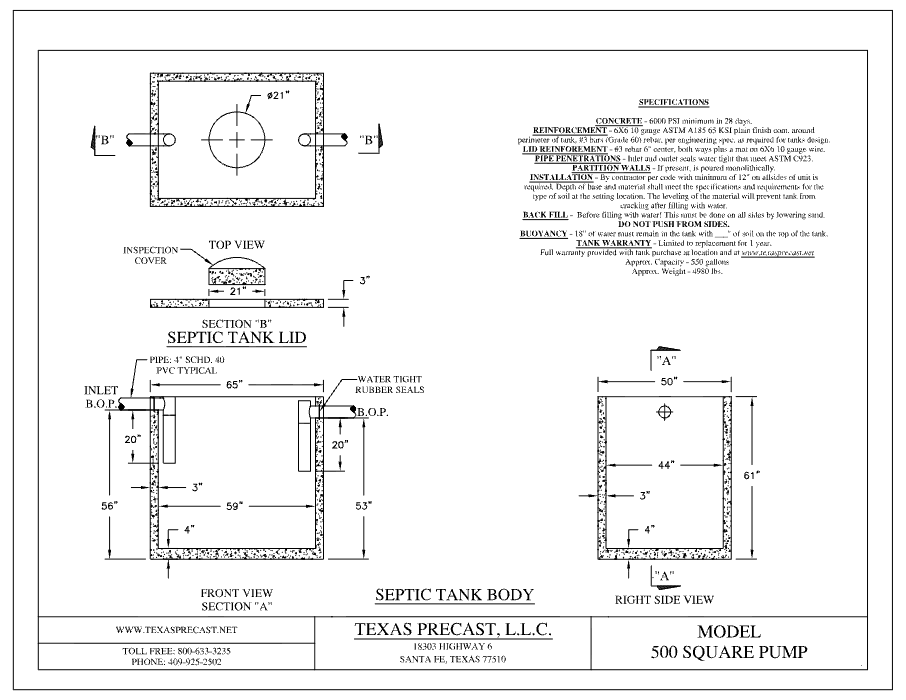

• Model 500 SQUARE PUMP dimensional drawing (PDF)
• Texas Precast drawings page

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): TX

Products are subject to freight or parcel shipping costs. This item ships by flatbed freight, quoted separately. Shipping is not calculated at checkout - email info@tanksupplydirect.com with your delivery address and we will quote the freight for you.

Warranty Information
Texas Precast Product Warranty
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of one year from the date of purchase. We will replace at no cost goods that prove defective provided we are notified in writing of such defect and evidence that the product has been properly maintained and used in accordance with manufacturer’s intended purpose. We will not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for its intended use and the purchaser assumes all risk and liability whatever in connection therewith.

Source: Texas Precast Installation & Warranty (PDF)
