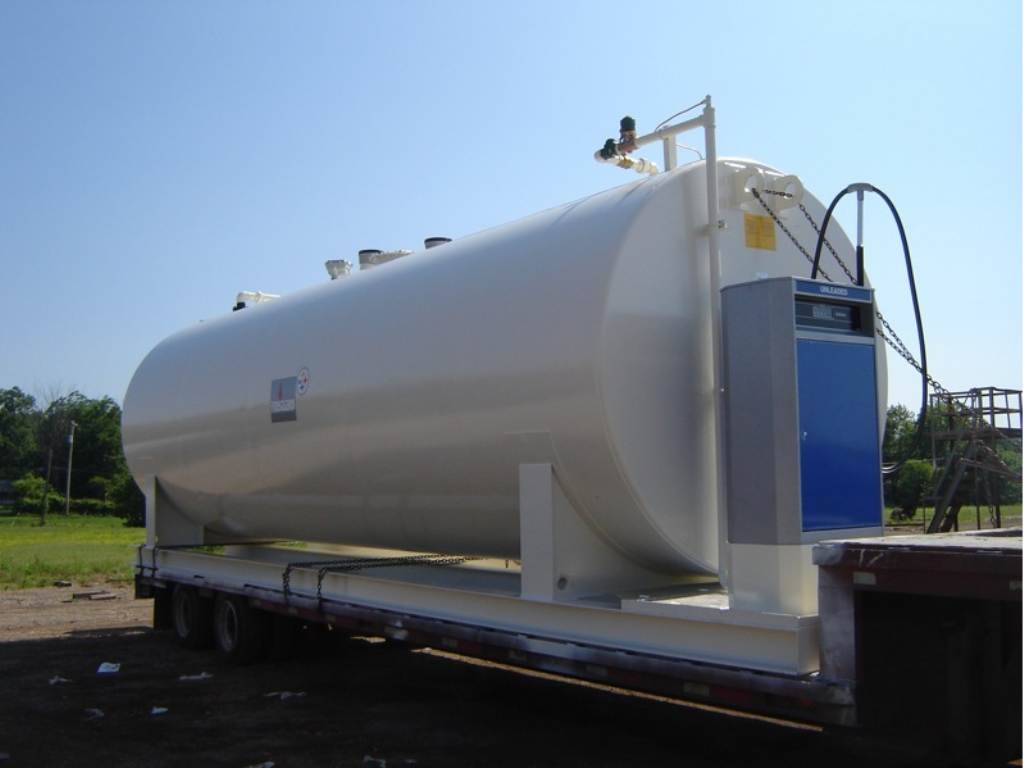

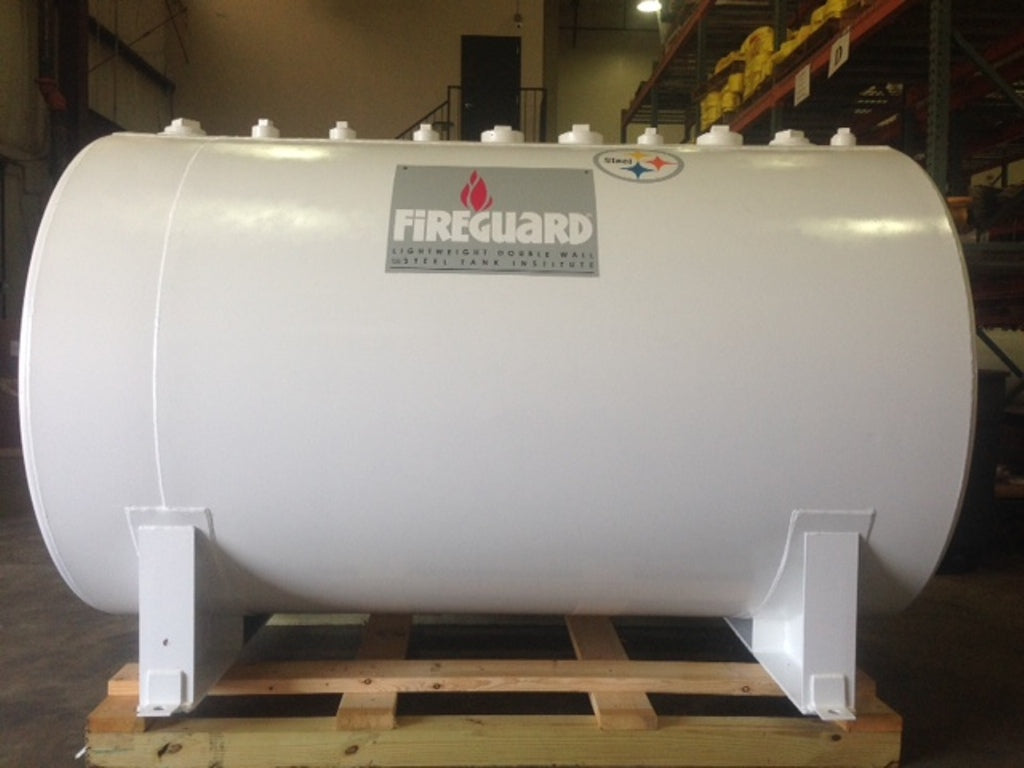

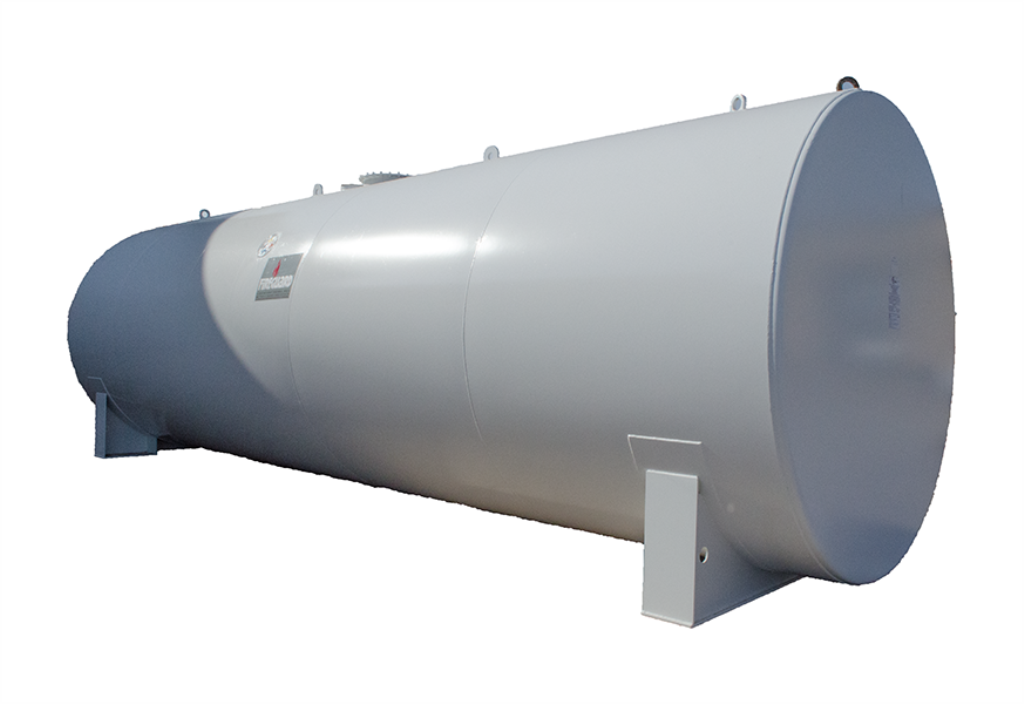

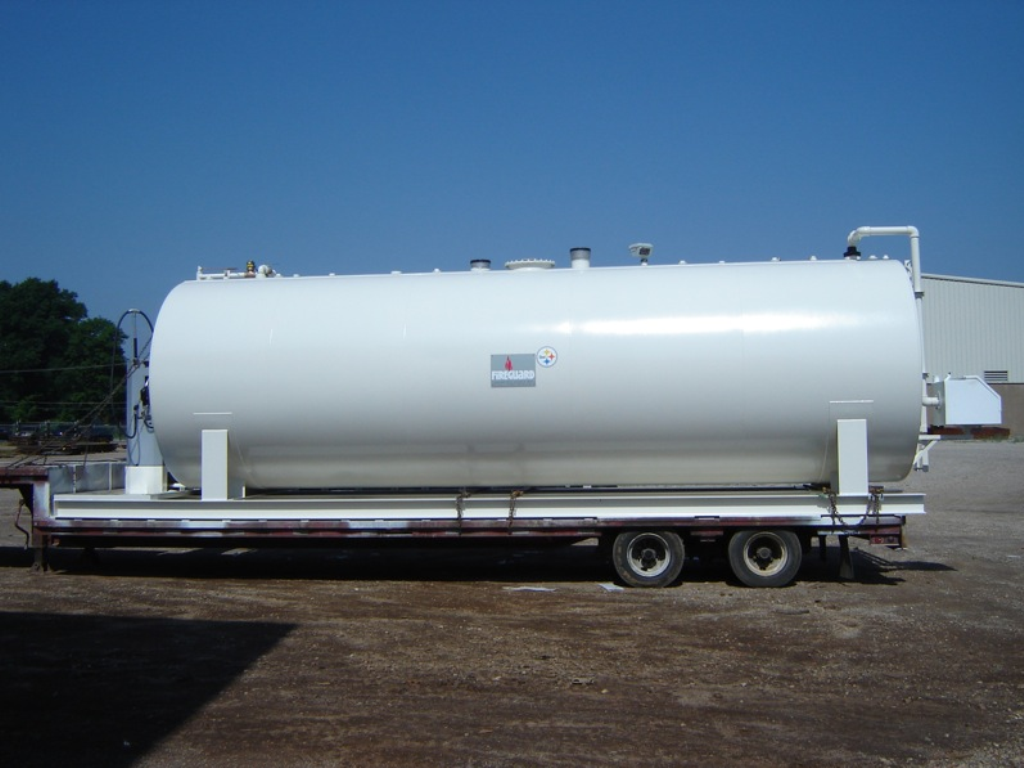

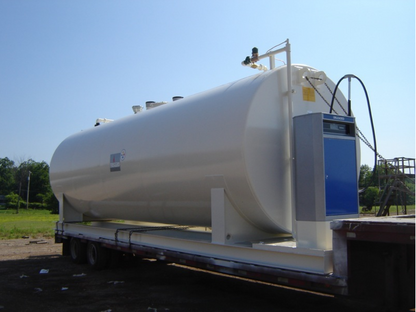

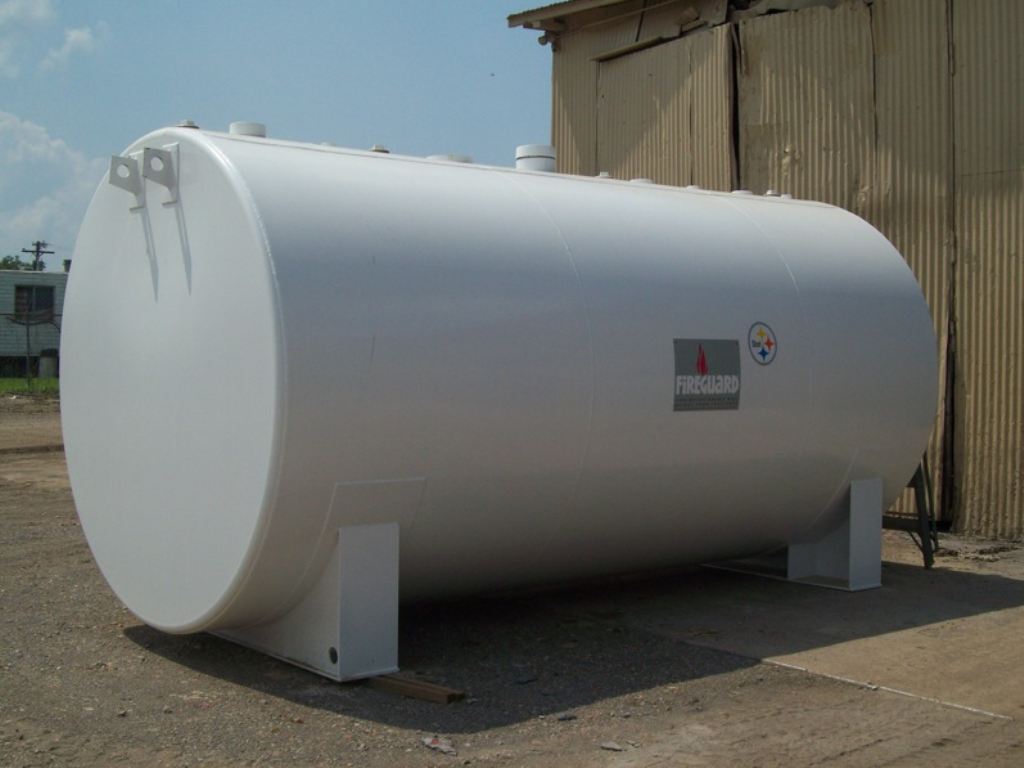

4000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB04000FGD06407G)

The 4000 Gallon Newberry Dual Wall Fireguard Cylindrical Saddle Tank (SKU: NB04000FGD06407G) is an ultra-high-capacity, fire-protected aboveground fuel storage solution engineered for large-scale commercial, industrial, and fleet fueling operations. Built and certified to UL 2085 standards, this tank delivers advanced fire resistance, secondary containment, and long-term durability for critical high-volume fuel storage applications.

Constructed with a thermally insulated double-wall Fireguard design, this cylindrical saddle tank provides superior protection against fire exposure, environmental hazards, and fuel leakage. It is manufactured in compliance with UL 142, NFPA 30, NFPA 30A, and STI SP001/SPFA standards, ensuring full regulatory compliance for aboveground fuel storage systems.

The heavy-duty saddle-mounted cylindrical configuration is designed for permanent installation in fuel terminals, distribution hubs, industrial complexes, and high-demand fueling sites. Its massive storage capacity supports continuous operations while maintaining safety, efficiency, and regulatory compliance.

The interstitial space between the inner and outer walls enables continuous leak detection monitoring, providing an additional layer of operational safety and environmental protection. Finished with a durable industrial-grade protective coating system, the tank is built to withstand harsh outdoor conditions and extended service life.

Key Features

• UL 2085 Fireguard Certified Construction: Advanced fire resistance and secondary containment
• Dual Wall Thermally Insulated Design: Enhanced safety and environmental protection
• Ultra-Large 4000 Gallon Capacity: Designed for high-volume industrial fuel storage
• Cylindrical Saddle Tank Configuration: Stable aboveground installation for permanent infrastructure
• UL 142, NFPA 30 & NFPA 30A Compliant: Meets strict fuel storage safety standards
• Enhanced Ballistic Resistance (UL 752 Level 9): Increased structural protection in critical environments
• Interstitial Leak Detection Capability: Continuous monitoring between tank walls
• Compatible with Multiple Fuels: Suitable for diesel, gasoline, biodiesel, ethanol blends, and other approved fuels
• Industrial Grade Construction: Built for long-term commercial and fleet fueling operations
• 30-Year Limited Warranty: Backed by STI/SPFA-certified manufacturing standards

Specifications

• Part Number: NB04000FGD06407G
• Tank Capacity: 4000 Gallons
• Tank Style: Dual Wall Fireguard Cylindrical Saddle Tank
• Inner Dimensions: 132″ L × 96″ W × 96″ H
• Outer Dimensions: 144″ L × 102″ W × 102″ H
• Approximate Weight: 14,625 lbs
• Construction Material: Heavy-Duty Steel (Dual Wall Insulated)
• Compliance: UL 2085, UL 142, NFPA 30, NFPA 30A, STI SP001/SPFA
• Configuration: Aboveground Fire-Protected Cylindrical Saddle Tank

Shipping & Warranty

Shipping Information

• Manufacture Lead Time: Ships Within 5 business days

• Ships From (State): Delano, MN - 55328

Products are subject to freight shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Each tank is manufactured under strict third-party quality control inspection programs and built in the USA using high-quality materials for long-term industrial reliability.
