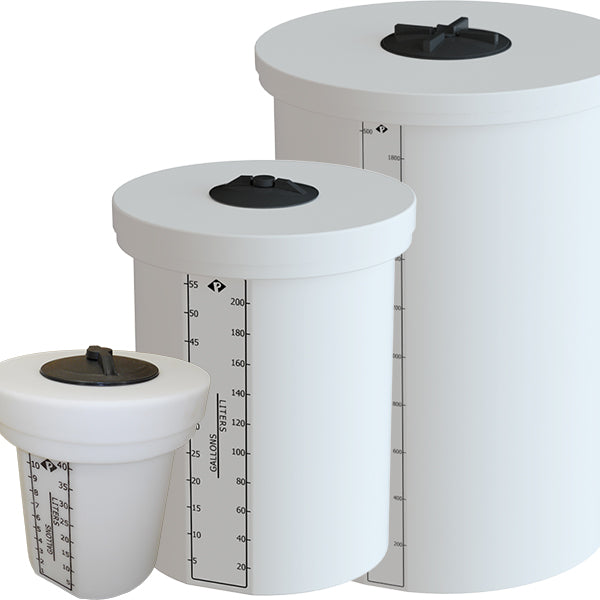

400 Gallon Peabody Engineering ProChem Solid Top Process Chemical Tank 1.9 SG (MPN: 01-34633)

Description

The Peabody Engineering 400 Gallon ProChem Solid Top Process Chemical Tank 1.9 SG (MPN 01-34633) is a polyethylene tank molded from linear polyethylene (LPE), with a solid top and access lid for covered chemical storage and process feed. It is rated for liquids up to 1.9 specific gravity (15.8 lb/gal). The tank measures 47" in shell diameter and 61.332" overall height and has a 16" access lid. Also available in this size: 1.5 SG (MPN 01-30362); XLPE (MPN 01-30418); Polypropylene (MPN 01-30373); PVDF (MPN 01-30384).

ProChem solid top process chemical tanks are compact closed-top tanks for chemical storage and process feed, offered in LPE, XLPE, polypropylene and PVDF.

Key Features

• Capacity: 400 gallons
• Material: Linear polyethylene (LPE)
• Specific Gravity Rating: 1.9 specific gravity (15.8 lb/gal)
• Solid Top: Closed top with access lid at the size listed
• Made in the USA: Built by Peabody Engineering and shipped from Liberty, South Carolina

Specifications

• Manufacturer Part Number: 01-34633
• Capacity: 400 gallons
• Material: Linear polyethylene (LPE)
• Specific Gravity Rating: 1.9 specific gravity (15.8 lb/gal)
• Lid Size: 16"
• Top Diameter: 52"
• Shell Diameter: 47"
• Overall Height: 61.332"
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Chemical storage
• Process chemical feed

Frequently Asked Questions

What is the Peabody 400-gallon closed top process chemical tank made of?
It is a polyethylene tank molded from linear polyethylene (LPE).

What specific gravity is it rated for?
It is rated for liquids up to 1.9 specific gravity (15.8 lb/gal). Water is 1.0 specific gravity (8.3 lb/gal); heavier liquids need a tank rated at or above their specific gravity.

What are the dimensions?
The tank measures 47" in shell diameter and 61.332" overall height and has a 16" access lid.

What can I use it for?
Chemical storage; Process chemical feed.

Is it NSF/ANSI/CAN 61 certified?
Yes. Peabody lists this resin and size as NSF/ANSI/CAN 61 certified.

What other versions come in this size?
1.5 SG (MPN 01-30362); XLPE (MPN 01-30418); Polypropylene (MPN 01-30373); PVDF (MPN 01-30384).

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Freight is calculated at checkout.

Who makes it?
Peabody Engineering. Manufacturer part number: 01-34633.

Manufacturer Documents

• Peabody catalog page: ProChem Solid Top Process Chemical Tank

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Peabody Engineering heavy-duty tanks carry a full 5-year manufacturer warranty. This standard warranty does not apply to special applications such as sodium hypochlorite or biodiesel; application-specific warranty coverage must be confirmed with Peabody Engineering for those uses. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
