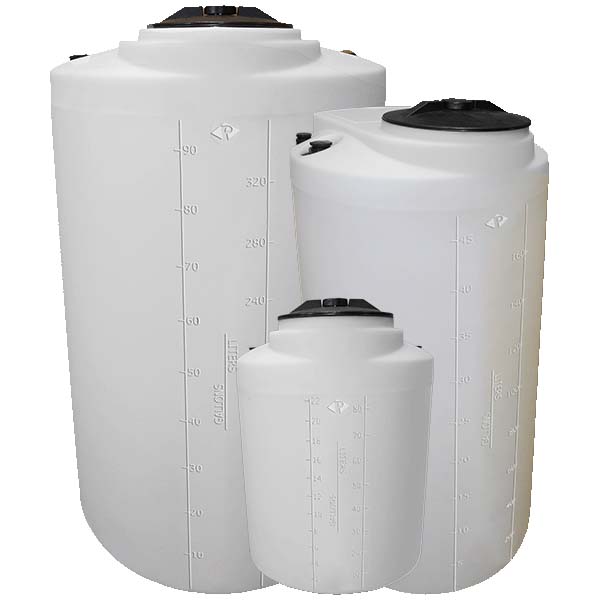

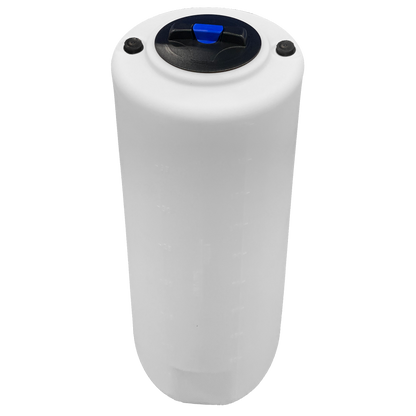

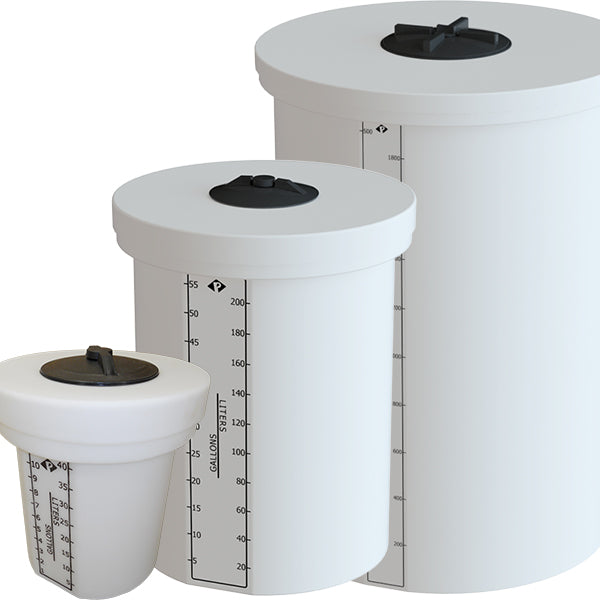

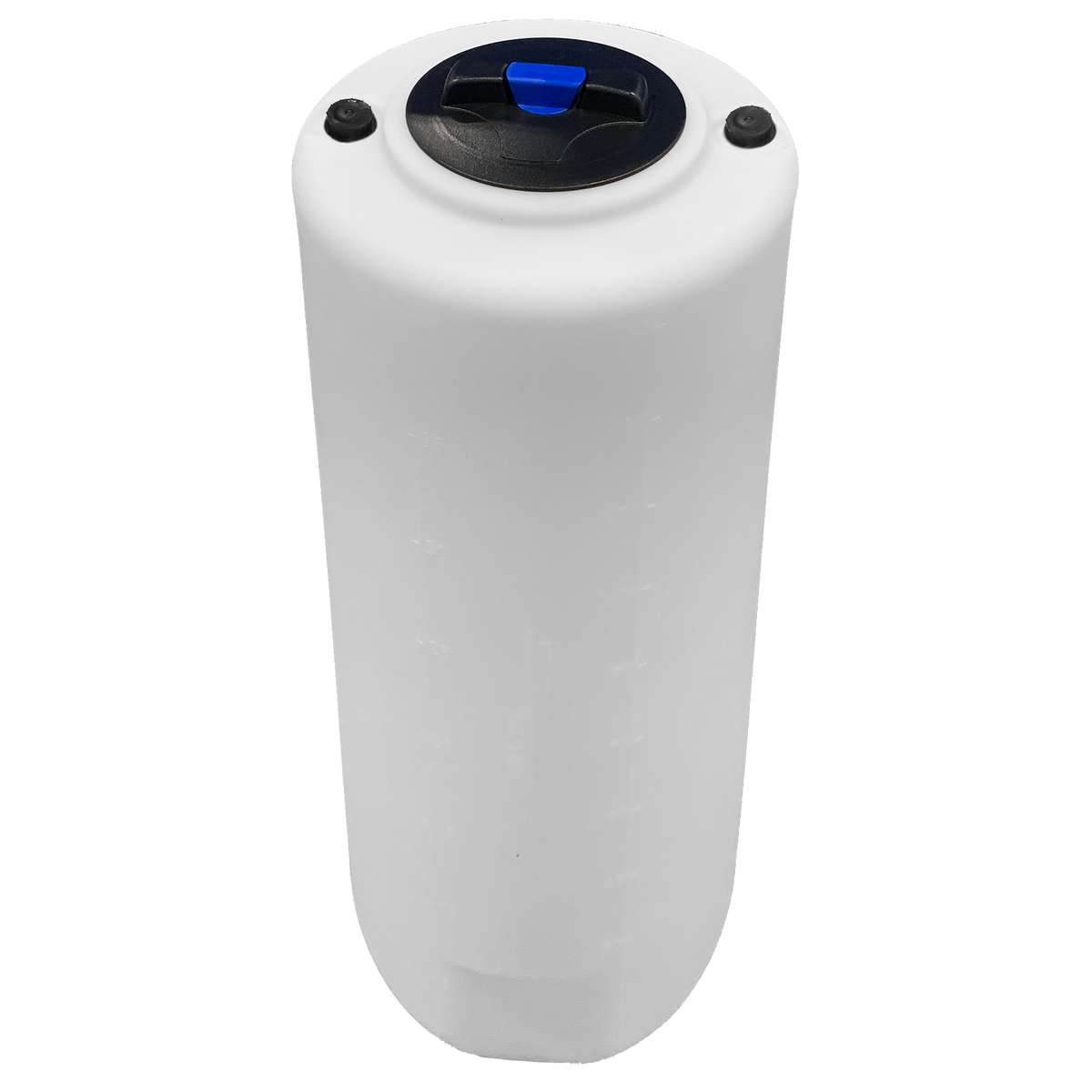

40 Gallon XLPE Peabody Engineering ProChem Process Chemical Tank 1.5 SG (MPN: 01-35666)

Description

The Peabody Engineering 40 Gallon XLPE ProChem Process Chemical Tank 1.5 SG (MPN 01-35666) is a polyethylene tank molded from crosslinked polyethylene (XLPE), built for bulk chemical, agricultural and process liquid storage. It is rated for liquids up to 1.5 specific gravity (12.5 lb/gal). The tank measures 18" in diameter and 42" tall and has an 8" access lid. Also available in this size: 1.5 SG (MPN 01-34823); 1.9 SG (MPN 01-34824); XLPE 1.9 SG (MPN 01-34825).

ProChem process chemical and agricultural tanks are rotationally molded, closed-top vertical tanks built for bulk chemical, fertilizer and process liquid storage. Each tank has a vented access opening and molded-in calibration marks in gallons and liters.

Key Features

• Capacity: 40 gallons
• Material: Crosslinked polyethylene (XLPE)
• Specific Gravity Rating: 1.5 specific gravity (12.5 lb/gal)
• Single-Wall Closed Top: Single-wall closed-top vertical tank for agricultural and industrial chemical applications
• Vented Access Opening: Vented lid opening for filling, inspection and venting
• Molded Calibration: Molded-in calibration in gallons and liters for quick level reading
• Made in the USA: Built by Peabody Engineering and shipped from Liberty, South Carolina
• Pump Mounting Platform: Peabody: most ProChem process tanks include an integrally molded pump mounting platform on top rated for 225 lb
• Top Process Fittings: Standard top process fittings for fill, discharge and a level sensor (300 gallons and below)

Specifications

• Manufacturer Part Number: 01-35666
• Capacity: 40 gallons
• Material: Crosslinked polyethylene (XLPE)
• Specific Gravity Rating: 1.5 specific gravity (12.5 lb/gal)
• Lid: 8 in
• Diameter: 18 in / 45.72 cm
• Height: 42 in / 106.68 cm
• Manufacturer: Peabody Engineering
• Ships From: Liberty, SC

Applications

• Bulk chemical storage
• Fertilizer and agricultural liquid storage
• Process liquid storage

Frequently Asked Questions

What is the Peabody 40-gallon vertical chemical storage tank made of?
It is a polyethylene tank molded from crosslinked polyethylene (XLPE).

What specific gravity is it rated for?
It is rated for liquids up to 1.5 specific gravity (12.5 lb/gal). Water is 1.0 specific gravity (8.3 lb/gal); heavier liquids need a tank rated at or above their specific gravity.

What are the dimensions?
The tank measures 18" in diameter and 42" tall and has an 8" access lid.

What can I use it for?
Bulk chemical storage; Fertilizer and agricultural liquid storage; Process liquid storage.

Is it NSF/ANSI/CAN 61 certified?
Yes. Peabody lists this resin and size as NSF/ANSI/CAN 61 certified.

What other versions come in this size?
1.5 SG (MPN 01-34823); 1.9 SG (MPN 01-34824); XLPE 1.9 SG (MPN 01-34825).

How long does it take to ship, and where does it ship from?
It is built to order with a manufacture lead time of 3-5 weeks and ships from Liberty, South Carolina. Freight is calculated at checkout.

Who makes it?
Peabody Engineering. Manufacturer part number: 01-35666.

Manufacturer Documents

• Peabody catalog page: ProChem Process Chemical Tank

Shipping and Warranty

• Manufacture Lead Time: 3-5 Weeks
• Ships From (State): SC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Peabody Engineering standard-duty tanks carry a full 3-year manufacturer warranty. This standard warranty does not apply to special applications such as sodium hypochlorite or biodiesel; application-specific warranty coverage must be confirmed with Peabody Engineering for those uses. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
