30000 Gallon CorGal Water Storage Tank (MPN: 2702-WT-CHR)

Description

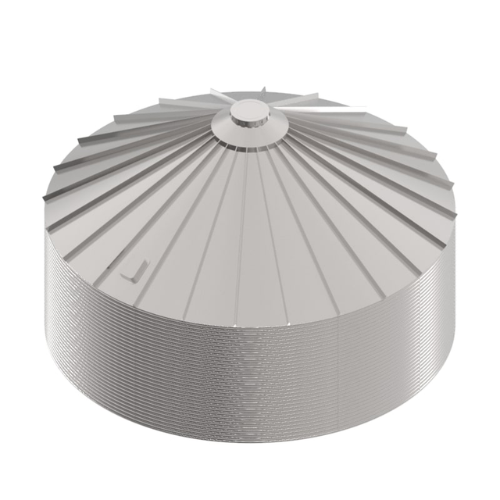

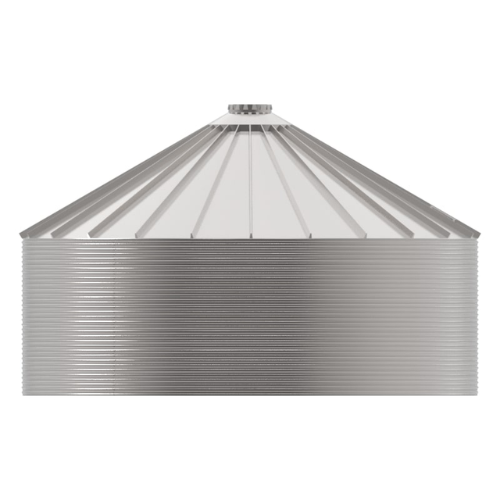

The CorGal 2702-WT-CHR is a 30,000 gallon (nominal) corrugated galvanized steel water storage tank kit made by Water Storage Tanks, Inc. of Texas, the manufacturer of CorGal® tanks. It is 27′ in diameter with a 7′ 3″ eave height and a 14′ 6″ peak height under a 30° corrugated high-rib galvanized steel roof.

The tank ships as a kit and is bolted together on site. Water is held by a reinforced PVC flexible membrane liner hung inside the steel shell over a geotextile preliner, so the water does not touch the steel. This standard build uses a 22 oz non-potable liner for rainwater harvesting, fire protection, irrigation, livestock and other non-potable storage. An NSF-61 certified potable liner is available on request.

Key Features

• Nominal capacity: 30,000 US gallons
• Corrugated galvanized steel: 20-gauge or heavier wall sheets with G-115 hot-dip galvanizing, made from US-sourced steel

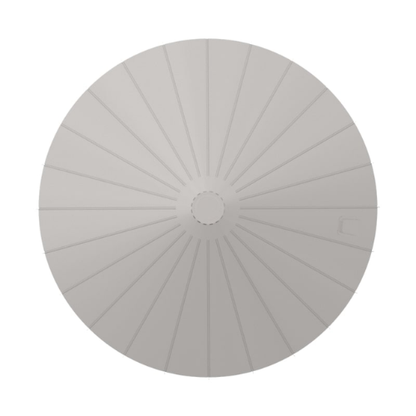

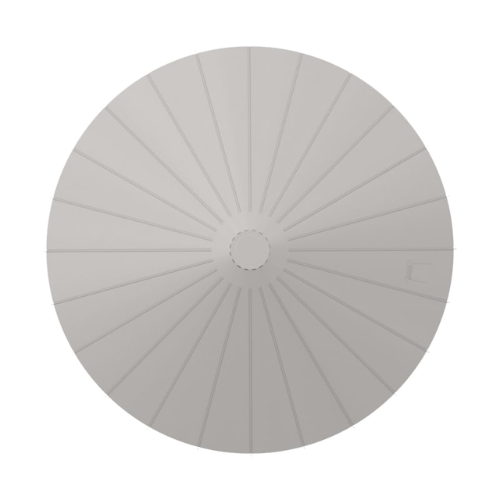

• 30° corrugated high-rib roof with an access hatch panel and peak cap
• Liner system: geotextile preliner plus a factory-welded-seam 22 oz reinforced PVC main liner
• Design basis (per WST quote): Seismic Category A, 110 mph (IBC) wind speed and 20 psf roof live load; site-specific engineering available
• Warranty: 30-year limited structural and 10-year pro-rated liner, when built or supervised by factory-certified personnel
• Can be disassembled and relocated if needed (per WST)

Specifications

• Manufacturer: Water Storage Tanks, Inc. (CorGal®)
• Model / Part number: 2702-WT-CHR
• Nominal capacity: 30,000 US gallons
• Diameter: 27′
• Eave height: 7′ 3″
• Peak height: 14′ 6″
• Roof: 30° corrugated high-rib (CHR), galvanized steel
• Wall sheets: 2-2/3" x 1/2" annular corrugated galvanized steel, 20 gauge or heavier, G-115 zinc coating, 57 ksi minimum yield
• Roof rating (WST model spec): 2 psf dead load, 20 psf live load, 20 psf snow load, 2,000 lb peak equipment load
• Preliner: 8 oz geotextile
• Main liner: 22 oz non-potable reinforced PVC, factory-welded seams
• Anchoring: galvanized anchor clips for a concrete base
• Weight: Not published by Water Storage Tanks, Inc.; freight is quoted per order
• Ships from: Austin, Texas (FOB origin)

What's included in the kit

• Corrugated galvanized steel wall sheets
• 30° galvanized steel roof panels, including one panel with an access hatch, and peak cap
• Roof eave seal gasket and roof ladder angles
• Anchor clips
• Geotextile preliner and reinforced PVC flexible membrane liner
• Assembly hardware

Not included

• Foundation, assembly/erection labor, permits, leak-test water and external piping
• Penetration flanges, vents, ladders, level indicators, float valves and other accessories (available as add-ons; contact us)
• Anchor bolts and epoxy, unless quoted

Applications

• Rainwater harvesting
• Fire protection water storage
• Irrigation and agricultural water
• Livestock and ranch water
• Well water supplementation and emergency reserves
• Other non-potable bulk water storage

Frequently Asked Questions

Does it come assembled?
No. CorGal tanks ship as a kit and are bolted together at your site. Water Storage Tanks, Inc. can provide a labor proposal from one of its trained tank contractors; you work and pay the contractor directly. A factory-certified instructor can also supervise a build for a daily fee.

Can I build it myself?
You can, but Water Storage Tanks, Inc. does not encourage it. A self-performed build receives only a one-year warranty against material defects and no workmanship coverage, and you must sign WST's acknowledgement form before the order is approved. WST supplies an installation manual but does not provide phone support during the build.

What foundation does it need?
The foundation is provided by others. Water Storage Tanks, Inc. recommends a concrete foundation, and the tank anchors to it with anchor clips. WST notes that some basic two-ring tanks are installed on compacted sand or gravel, but that is the customer's responsibility and the warranty does not cover a liner failure caused by settling or wash-out.

Is it rated for drinking water?
This standard build uses a 22 oz non-potable liner. An NSF-61 certified potable liner is available; contact us for a quote.

Is it engineered for my location?
Standard pricing is based on Seismic Category A, 110 mph (IBC) wind speed and a 20 psf roof live load, without site-specific engineering. If your jurisdiction requires a stamped design, WST offers site-specific engineering by a licensed professional engineer for an added fee.

How does it ship and who unloads it?
Materials ship from Austin, Texas on pallets, FOB origin, typically by tractor-trailer up to 65 ft long. You are responsible for unloading, inspecting the delivery and noting any damage on the bill of lading before signing. Hidden damage must be reported within 5 calendar days.

Are there weather limits for installation?
Yes. WST will not install liners when the average daily temperature is below 50°F.

How long does it take?
The manufacture lead time is about 6 weeks. WST's quote lists typical availability of 6 to 8 weeks from receipt of the first payment.

Manufacturer Documents

• CorGal 2702-WT-CHR model specification (PDF)
• CorGal 2702-WT-CHR tank drawing (PDF)
• CorGal standard 30° roof model chart (PDF)
• CorGal warranty information
• WST claims handling policy (PDF)
• CorGal tank kit components

Shipping and Warranty

Shipping Information

• Manufacture Lead Time: 6 Weeks
• Ships From (State): TX
• Ships Via: Freight, as a palletized kit (customer unloads)
• Manufacturer Warranty: 30-Year Limited Structural / 10-Year Pro-Rated Liner (certified build required)

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Water Storage Tanks, Inc. warrants CorGal structural materials it manufactures to be free from defects in material and workmanship for thirty (30) years from the date the materials ship from the factory. The 22 oz non-potable reinforced PVC liner carries a 10-year pro-rated liner warranty. Full warranty coverage applies only when the tank is built by a factory-certified installation team, or when every step of the build is supervised by a factory-certified instructor. Self-performed builds receive only a one-year warranty against material defects, with no workmanship coverage, and require a signed acknowledgement before the sale is approved. The warranty does not cover a liner failure caused by foundation settling or wash-out, and Water Storage Tanks, Inc. is not responsible for indirect costs such as labor, water, or damage to surrounding structures or landscaping. For warranty details or to initiate a warranty claim, please contact Tank Supply Direct at info@tanksupplydirect.com.
