3000 Gallon Elkhart Plastics Vertical Chemical Storage Tank 1.5 SG (MPN 107068A01)

Description

The Elkhart Plastics 3000 Gallon Vertical Chemical Storage Tank 1.5 SG (MPN 107068A01) is a seamless, one-piece rotomolded vertical tank molded from high-density polyethylene (HDPE) for chemical and liquid storage. It is rated for 1.5 specific gravity (12.5 lb/gal), so it can hold liquids up to 1.5 times the weight of water. The tank measures 95" in diameter and 109" tall, weighs 625 lb and is molded in natural. In this size Elkhart Plastics also makes the 3000 Gallon Vertical Water Storage Tank 1.0 SG in black (MPN 307068A00) and the 3000 Gallon Vertical Chemical Storage Tank 1.9 SG in light blue (MPN 307068A01).

Elkhart Plastics Industrial Chemical Tanks are built to ANSI 61 wall thickness standards with a tough tank top and are offered in multiple specific gravity ratings for agriculture, industrial and residential applications. This tank comes with one 16" manway lid with gasket, a 2" female NPT bulkhead inlet fitting with threaded plug at the top and a 3" female NPT bulkhead outlet/drain fitting with threaded plug at the bottom. Elkhart Plastics is a Myers Industries company.

Key Features

• Capacity: 3000 gallons
• Material: HDPE built with FDA-compliant materials
• Specific gravity: 1.5 SG (12.5 lb/gal)
• Seamless, one-piece construction: no seams or welds, which means no weak points and less risk of leaks or failure
• Tough tank top: large radii and increased wall thickness prevent collapsing in the sun
• ANSI 61 wall thickness standards: built to full specification for strength and reliability
• Plugged fittings: 2" top inlet and 3" bottom outlet/drain, both with threaded plugs
• Gasketed 16" manway lid: one 16" manway with lid gasket
• UV-stabilized resin: Elkhart Plastics standard UV rating of 15
• Temperature rating: Up to 140°F (60°C) intermittent; 120°F (49°C) sustained

Specifications

• MPN: 107068A01 (Natural)
• Capacity: 3000 gallons
• Material: High-density polyethylene (HDPE); polypropylene (PP) fittings; EPDM fitting gaskets
• Specific gravity: 1.5 SG (12.5 lb/gal)
• Color: Natural
• Type: Liquids
• Diameter: 95"
• Height: 109"
• Weight: 625 lb

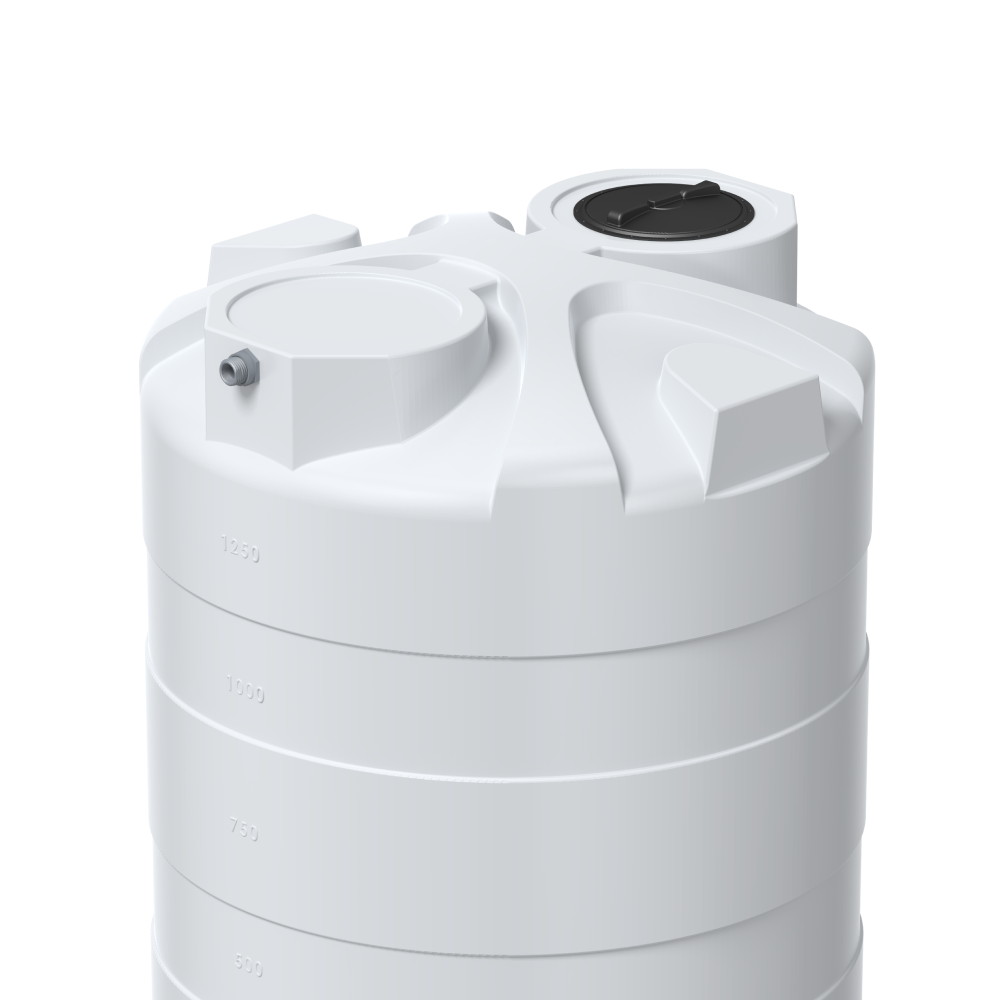

• Lid: One 16" manway lid with gasket
• Inlet (side/top): 2" female threaded NPT bulkhead fitting with threaded plug (side/top)
• Outlet/drain (side/bottom): 3" female threaded NPT bulkhead fitting with threaded plug (side/bottom)
• Lid gasket: Yes
• Temperature rating: Up to 140°F (60°C) intermittent; 120°F (49°C) sustained
• Manufacturer: Elkhart Plastics (a Myers Industries company)
• Ships from: Ridgefield, WA

Applications

• Liquid chemical storage
• Fertilizer storage
• Agriculture, industrial and residential liquid storage

Frequently Asked Questions

What is it made of?
The tank is molded from high-density polyethylene (HDPE) built with FDA-compliant materials. The fittings are polypropylene with EPDM gaskets.

What specific gravity is it rated for?
It is rated for 1.5 specific gravity (12.5 lb/gal). Water is 1.0 specific gravity (8.3 lb/gal).

What are the dimensions?
It measures 95" in diameter and 109" tall and weighs 625 lb.

Which chemicals can I store in it?
The buyer is responsible for confirming the chemical is compatible with the HDPE tank, the polypropylene fittings and the EPDM gaskets at the expected storage temperature. Check the chemical resistance chart in the Elkhart Plastics Technical Guide (linked below), or contact Tank Supply Direct before ordering.

What can I use it for?
Liquid chemicals and fertilizers in agriculture, industrial and residential applications, within its specific gravity and chemical compatibility limits.

What temperature can it handle?
Elkhart Plastics rates its tanks for intermittent temperatures up to 140°F (60°C) and sustained temperatures up to 120°F (49°C). Service temperatures above that lower the tank's specific gravity rating. Deionized water can be stored at up to 100°F (38°C).

Can it be buried or pressurized?
No. Elkhart Plastics liquid tanks are not engineered for burial and cannot be pressurized or put under vacuum. The tank must be vented for filling and emptying.

What does it need to sit on?
A level, well-drained site that fully supports the tank bottom. Elkhart Plastics recommends reinforced concrete support pads for tanks over 1,000 gallons, and anchoring to your site's seismic and wind requirements. Vertical bulk storage tanks are for stationary use only, not transport.

What other versions come in this size?
Elkhart Plastics also makes the 3000 Gallon Vertical Water Storage Tank 1.0 SG in black (MPN 307068A00) and the 3000 Gallon Vertical Chemical Storage Tank 1.9 SG in light blue (MPN 307068A01).

How long does it take to ship, and where does it ship from?
Lead time is 3-4 weeks, depending on inventory and volume. It ships from Ridgefield, WA.

Who makes it?
Elkhart Plastics, a Myers Industries company. Manufacturer part number 107068A01.

Manufacturer Documents

• Elkhart Plastics Vertical Chemical Storage Tanks

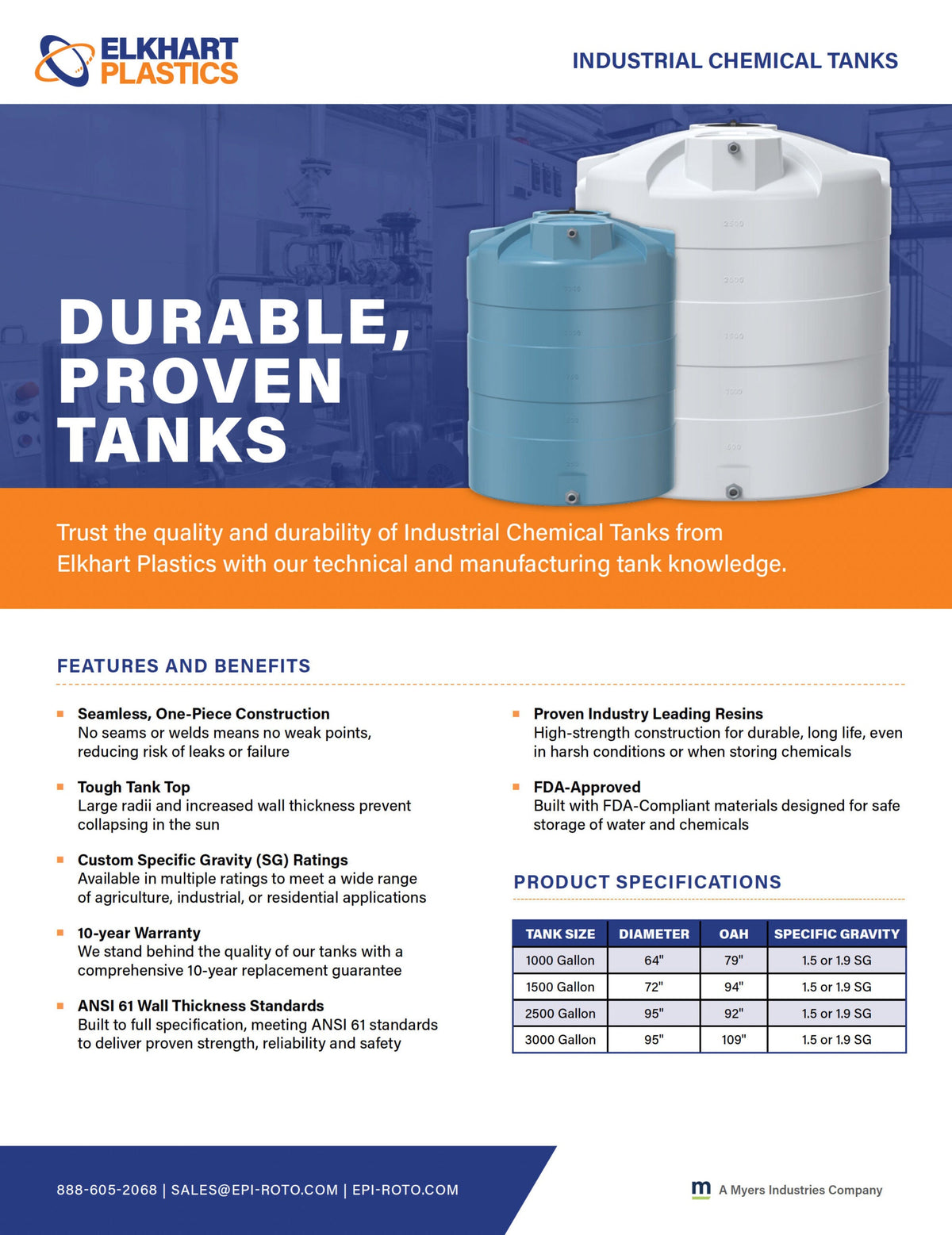

• Industrial Chemical Tanks Brochure
• Technical Guide & FAQs - Water and Liquid Tanks (includes the HDPE chemical resistance chart)
• Application Guide - Water and Liquid Tanks (handling, installation and use)
• Limited Warranty for Vertical Storage Tanks

Shipping and Warranty

• Manufacture Lead Time: 3-4 weeks, depending on inventory and volume
• Ships From (State): WA

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Elkhart Plastics warrants its vertical storage tanks against defects in material and workmanship for 5 years from the original purchase date, extended to 10 years when the original purchaser or end user registers the tank with Elkhart Plastics within 30 days of purchase. Fittings, gaskets and accessories installed by Elkhart Plastics are warranted for 1 year. Coverage is limited to repair, replacement or a pro-rated credit, and requires storing suitable liquids within the tank's specific gravity rating; see the full Limited Warranty above. To register your tank or start a claim, contact Tank Supply Direct at info@tanksupplydirect.com.
