17" Texas Precast Cast Iron Sample Well Ring and Lid (MPN LC 216SW)

Description

The Texas Precast 17" Flat Sample Well Lid and its matching ring is a painted cast iron cover for a precast concrete sample well. The lid is 17" in diameter, cast from gray iron conforming to ASTM A48 Class 30B, and weighs 50 lbs. The top face carries a pointed diamond chequer tread pattern and the words "SAMPLE WELL" cast in 2" letters, so the structure is identifiable to an inspector at a glance. The underside carries the casting mark LC 216SW together with the heat number and date. Supplied as a ring and cover assembly weighing 79 lbs.

Key Features

• Identified at a Glance: "SAMPLE WELL" cast into the lid face in 2" letters
• Anti-Slip Tread: Pointed diamond chequer pattern across the full lid face
• ASTM A48 Class 30B Gray Iron: Painted cast iron conforming to ASTM A48 Class 30B
• Traceable Casting: Underside carries the LC 216SW casting mark plus heat number and date
• Supplied as Ring and Cover: Ring and cover together weigh 79 lbs

Specifications

• Lid Diameter: 17"
• Lid Weight: 50 lbs
• Ring and Cover Assembly Weight: 79 lbs
• Material: Cast iron, ASTM A48 Class 30B
• Finish: Painted
• Tread Pattern: Pointed diamond chequer
• Cast Lettering: "SAMPLE WELL", 2" letters
• Casting Mark: LC 216SW, with heat number and date
• Manufacturer: Texas Precast, L.L.C. - Santa Fe, Texas
• Ships From: Texas (TX)
• Manufacturer Model: LC 216SW

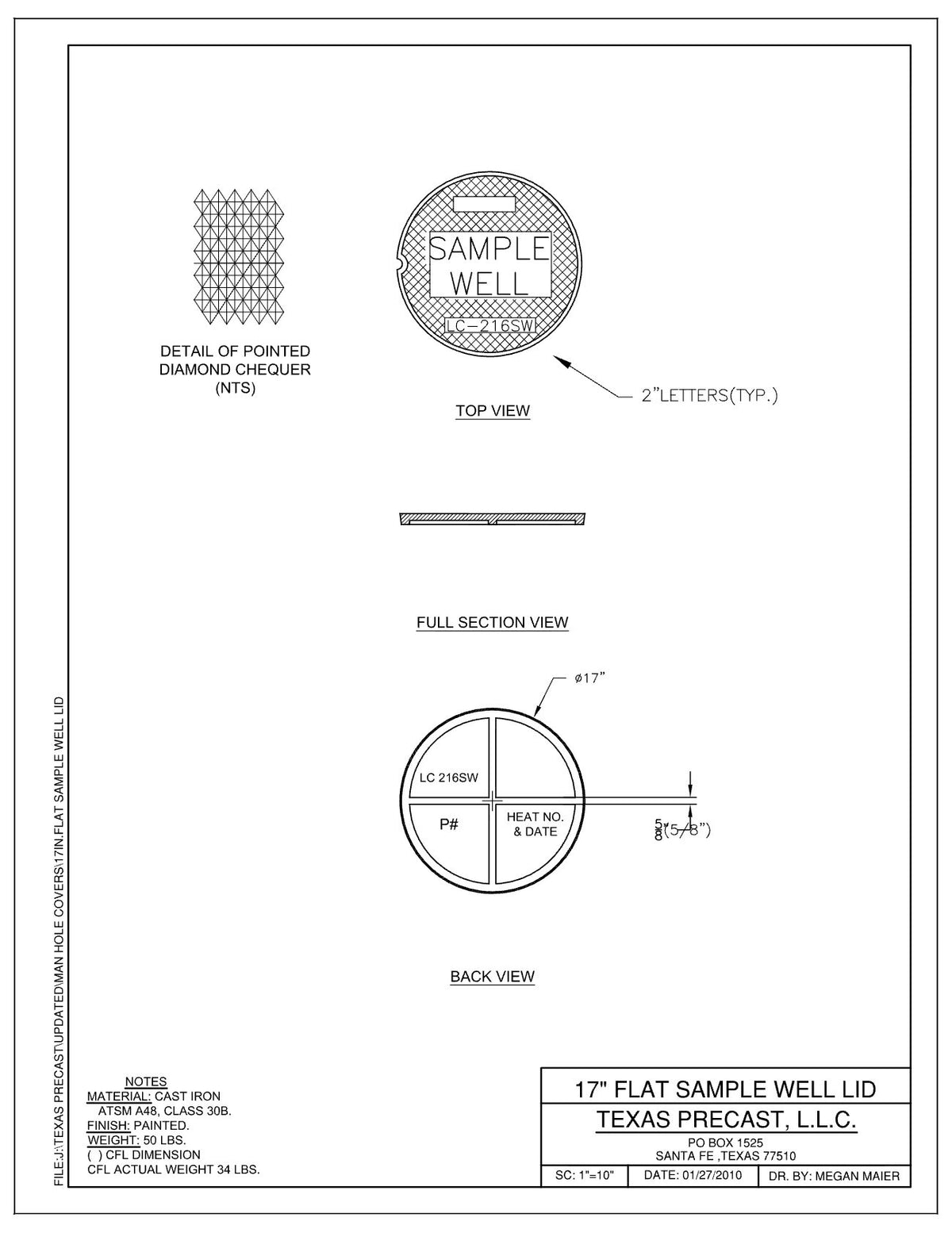

• Dimensional Drawing: 17" Flat Sample Well Lid drawing

Applications

• Cover for a precast concrete wastewater sample well
• Replacement lid for an existing Texas Precast sample well

Manufacturer Documents

• 17" Flat Sample Well Lid drawing (PDF)

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): TX

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Texas Precast warrants the product against defects and is limited to replacement for 1 year. The full written warranty is provided at the time of purchase and at texasprecast.net.
