1000 Gallon Texas Precast Concrete Trash Tank (MPN 1000 TRASH TANK)

Description

The Texas Precast 1000 Gallon Concrete Trash Tank is a below-ground precast concrete trash tank cast in Santa Fe, Texas. It holds approximately 1,023 gallons, is poured from 6,000 PSI concrete with 2½" walls, and is supplied with a separate 4" lid. Inlet and outlet penetrations are 4" Sch 40 PVC with watertight rubber seals meeting ASTM C923. The lid carries two 18" square riser openings and two inspection plugs.

Key Features

• 1,023 Gallon Capacity: Approximate capacity per the manufacturer's drawing
• 6,000 PSI Concrete: 6,000 PSI minimum at 28 days
• ASTM C923 Watertight Seals: Inlet and outlet seals are watertight and meet ASTM C923
• Steel Reinforced: 6x6 10 gauge ASTM A185 65 KSI plain finish continuous around the perimeter, with #3 Grade 60 rebar per engineering specification
• Reinforced Lid: #3 rebar at 6" centers both ways plus a mat on 6x6 10 gauge wire
• Two Riser Openings: Two 18" square riser openings plus two inspection plugs for service access at both ends
• 4" Inlet-to-Outlet Drop: Inlet bottom-of-pipe at 51", outlet at 47"
• Texas Manufactured: Cast in Santa Fe, Texas and shipped from the plant

Risers Are Not Included

The manufacturer's drawing specifies: "Riser constructed as specified. Standard 1'-8", 6" tall. Tuf-Tite or equivalent." Risers are supplied separately and are not part of the tank price. Contact info@tanksupplydirect.com to add risers to your order.

Specifications

• Approximate Capacity: 1,023 gallons
• Approximate Weight: 6,700 lb
• Outside Dimensions (body): 96" L × 65" W × 55½" H
• Lid Thickness: 4" (55½" body + 4" lid = 59½" overall)
• Inside Dimensions: 91" L × 60" W at the top, narrowing to 57" W at the base
• Wall Thickness: 2½"
• Inlet B.O.P.: 51"
• Outlet B.O.P.: 47"
• Pipe: 4" Sch 40 PVC typical
• Top Openings: Two 18" square riser openings, two inspection plugs
• Concrete: 6,000 PSI minimum in 28 days
• Pipe Penetrations: Inlet and outlet seals water tight, meeting ASTM C923
• Manufacturer: Texas Precast, L.L.C. - Santa Fe, Texas
• Ships From: Texas (TX)

Installation Notes From the Manufacturer

• Installation by contractor per code, with a minimum of 12" on all sides of the unit. The depth of base and material must meet the specifications and requirements for the type of soil at the setting location. Leveling the material prevents the tank from cracking after filling with water.
• Back fill before filling with water. This must be done on all sides by lowering sand. Do not push from sides.
• Buoyancy: 18" of water must remain in the tank when soil is placed on top of the tank.

Manufacturer Documents

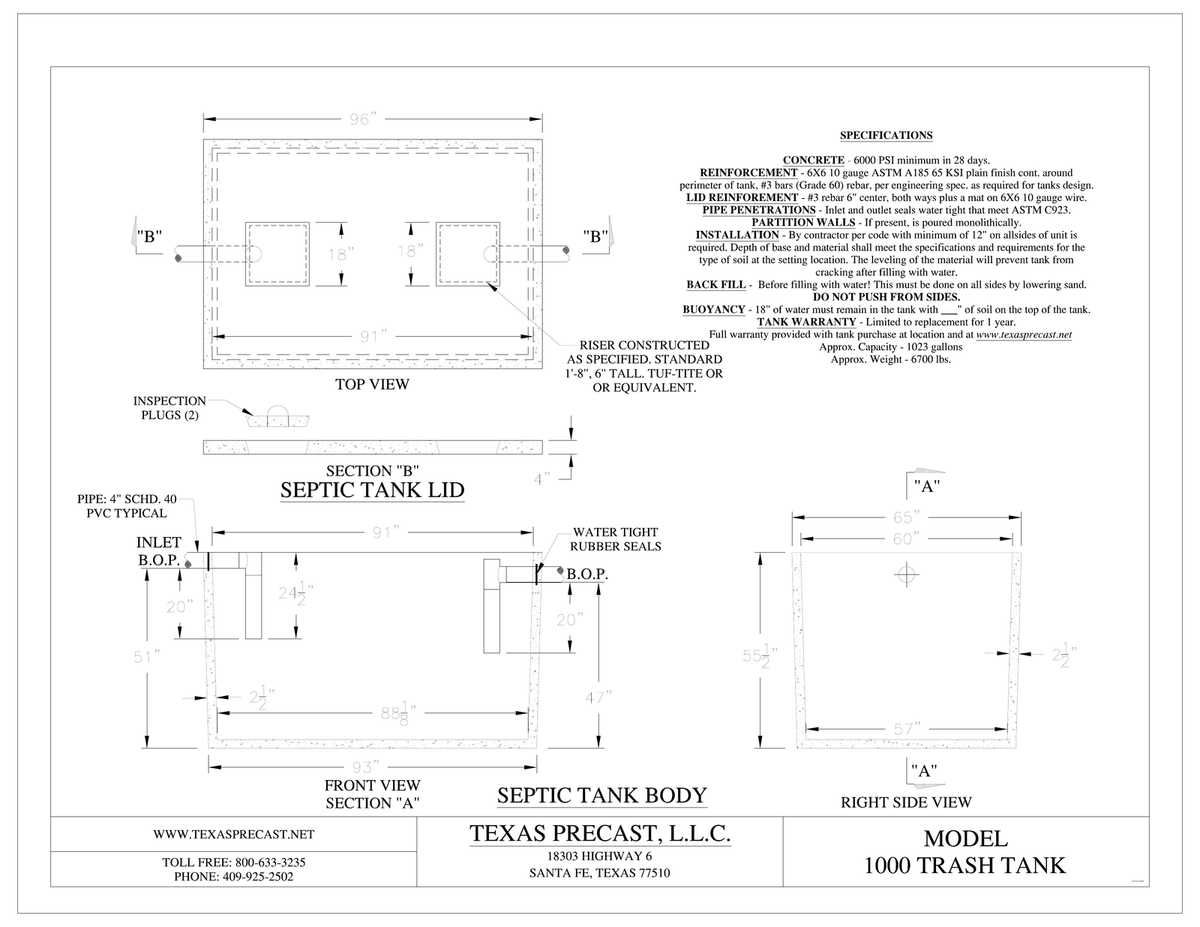

• 1000 Trash Tank dimensional drawing

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): TX
• Freight: Ships by flatbed freight, quoted per order

This product ships by flatbed freight and is not rated at checkout. Once your order is placed, email info@tanksupplydirect.com with your delivery address and we will quote the freight for you. Delivery is curbside; the receiving site needs equipment able to unload a 6,700 lb concrete tank.

Warranty Information
Texas Precast warrants the tank against defects and is limited to replacement for 1 year. The full written warranty is provided at the time of purchase and at texasprecast.net.
