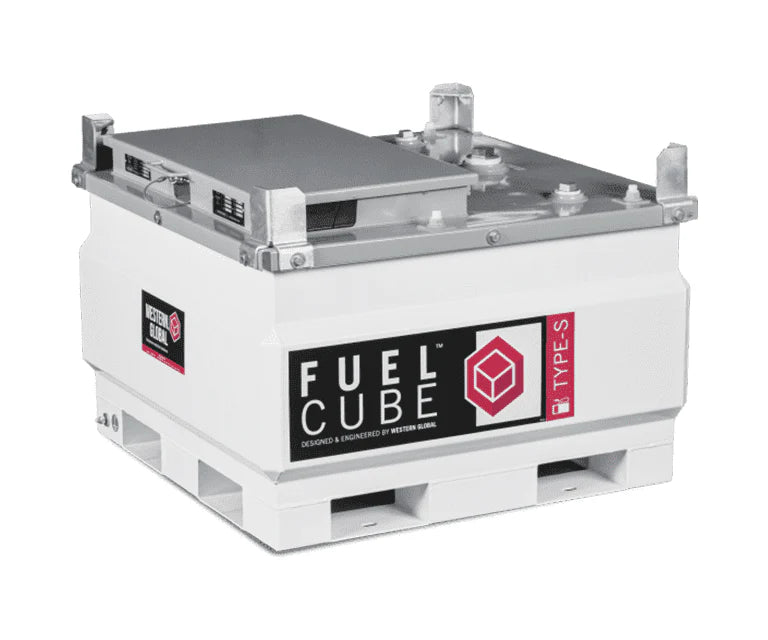

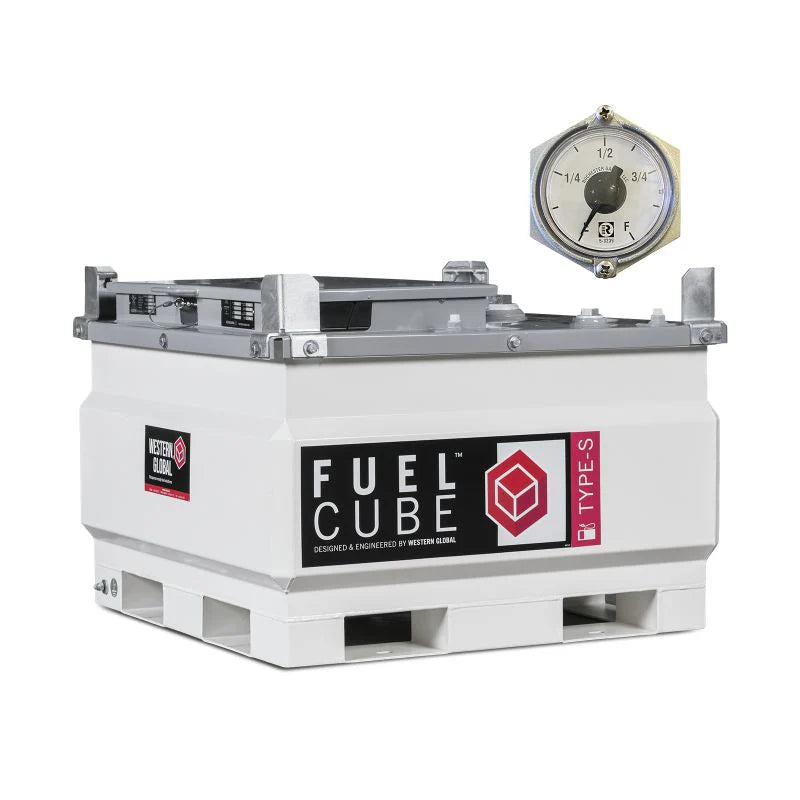

Western Global FuelCube Type-S FCS119 119 Gallon Double-Walled Diesel Fuel Transfer Tank (MPN: FCSWN0119)

Description

The Western Global FuelCube Type-S is an ultra-transportable, double-walled diesel transfer tank designed to move diesel safely from one jobsite to another. It is the smallest capacity in Western Global's range and can be used as an alternative to a standard 100-gallon truck slip tank.

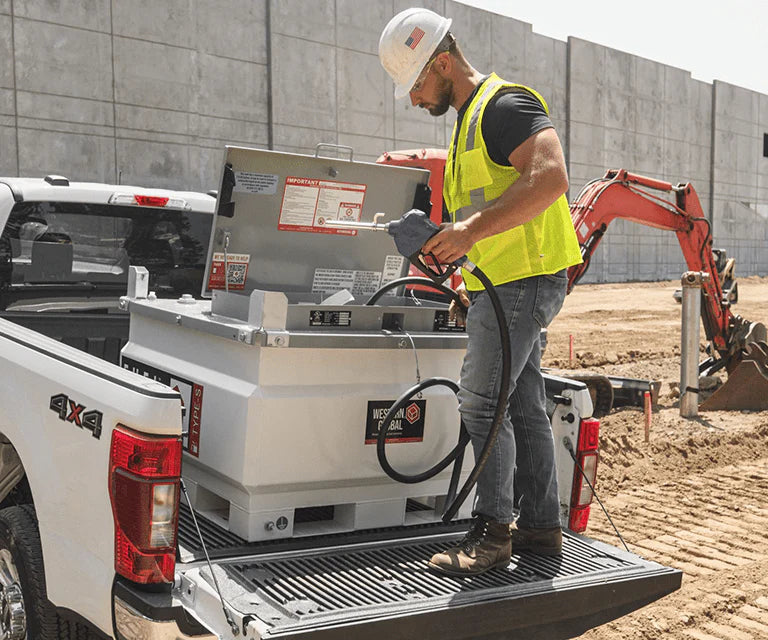

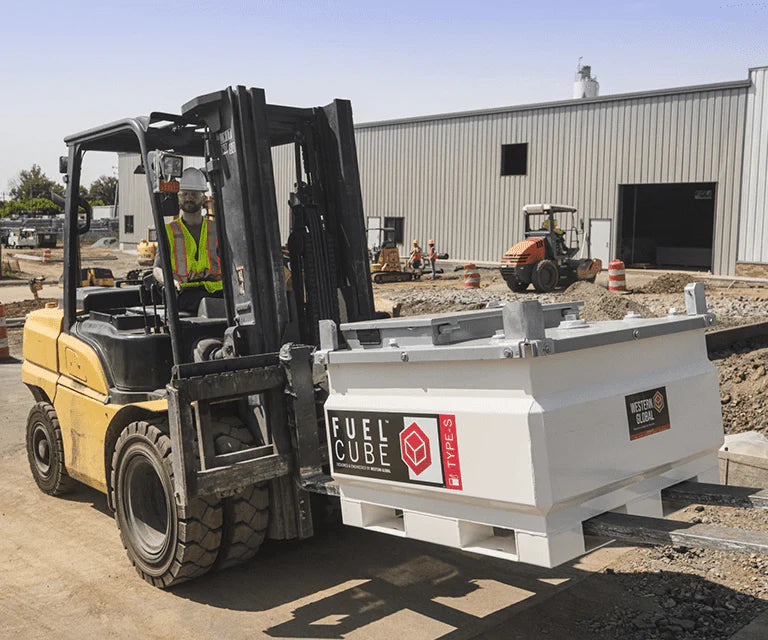

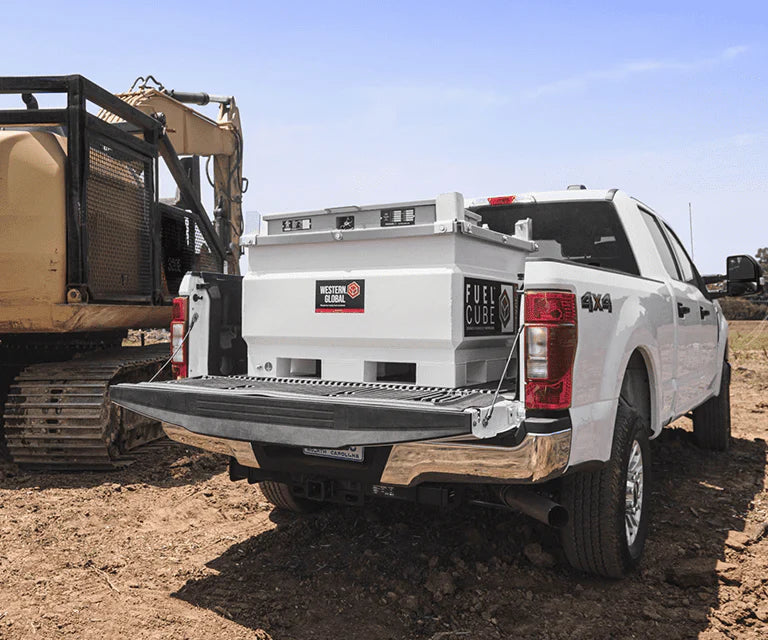

Refuel small to mid-sized equipment directly from the truck bed, or forklift the tank onto site to create an on-site fueling station. The FuelCube Type-S provides 110% containment to prevent leaks, drips and spills, and its lockable cabinet helps prevent fuel theft. At 119 gallons, diesel can be transported without hazardous material placarding.

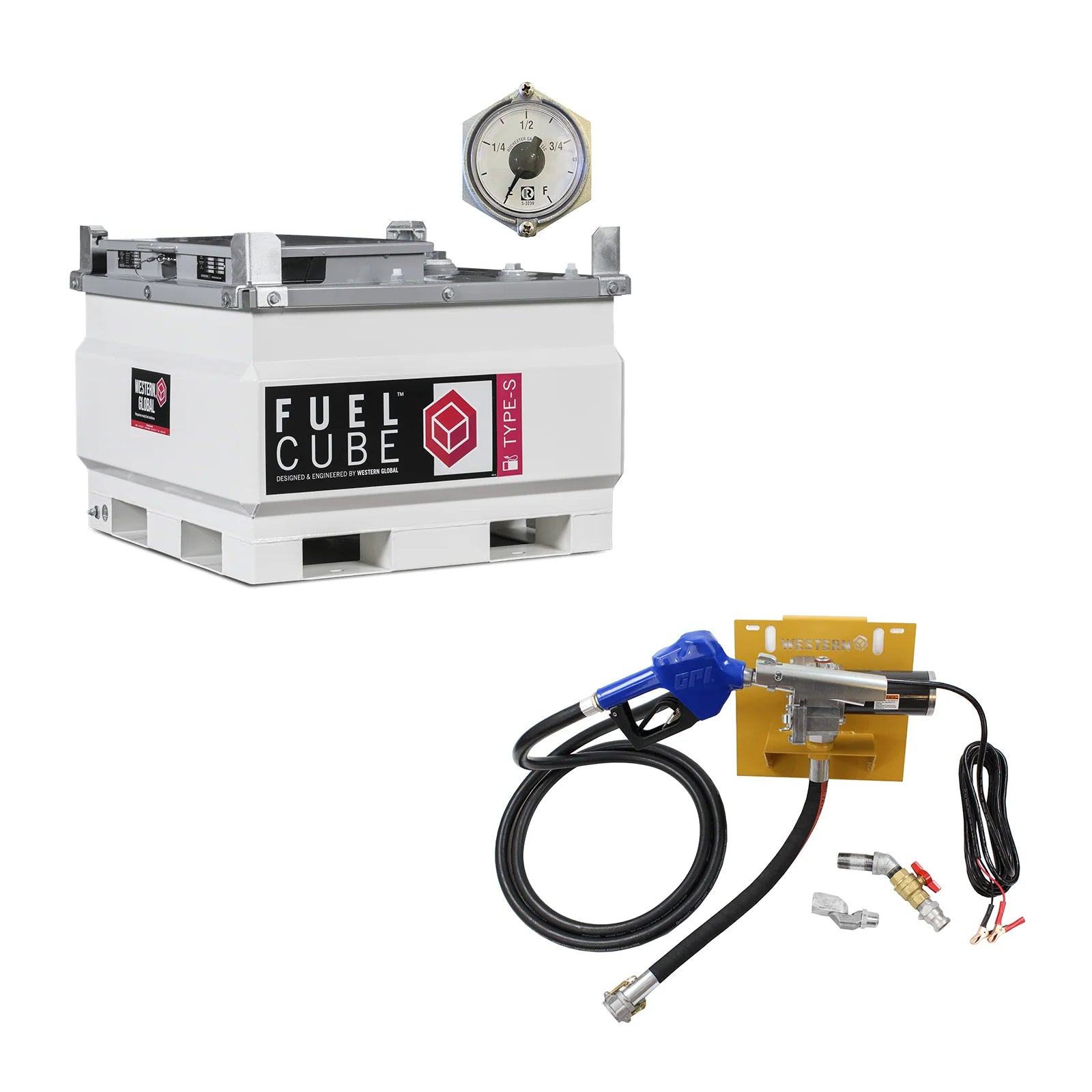

Pump not included. Western Global pump kits M150SAUK (12V DC) and M1115SAUK (115V AC) are available separately.

Key Features

• Double-walled: Removable inner tank allows routine cleaning and provides 110% containment.

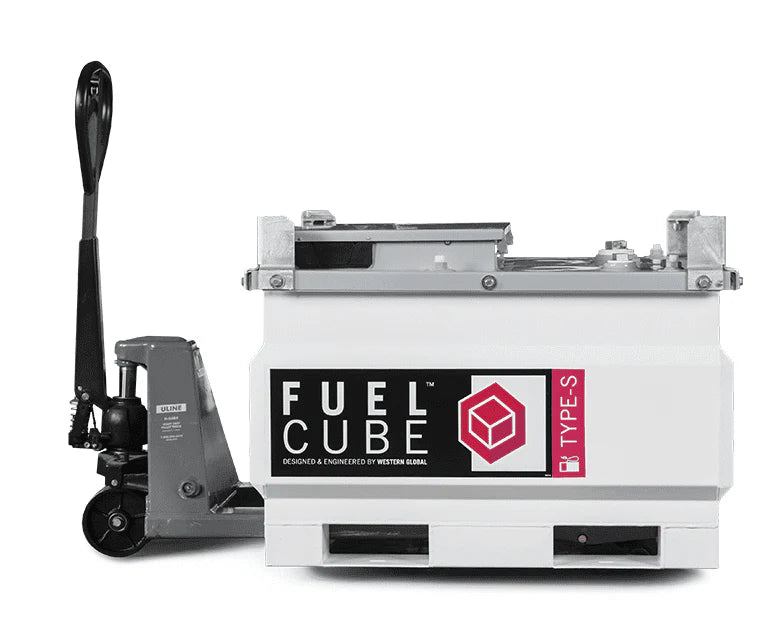

• Four-way forklift pockets: Can be forklifted or moved with a pallet jack.
• Compact: Lightweight enough to move from truck to truck or transport to site; an alternative to a standard 100-gallon truck slip tank.

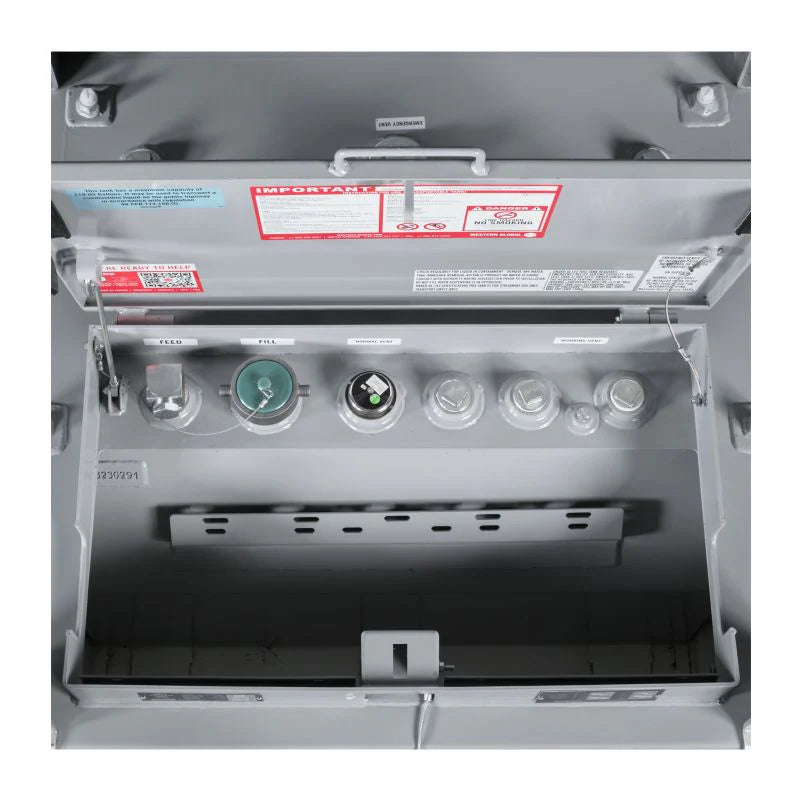

• Safe and secure: Lockable equipment cabinet keeps the pump and fuel secure from theft and the elements.
• No hazmat placarding required: Classified as a non-bulk package for the purpose of 49 CFR 173, so diesel can be transported without hazmat placarding in the US (pursuant to 49 CFR 173.150(f)).

Specifications

• Manufacturer: Western Global
• Model: FCS119
• MPN: FCSWN0119
• Product line: FuelCube Type-S
• Capacity (brim fill): 119 US gal
• Capacity (safe fill, 95%): 113 US gal
• Dimensions (L x W x H): 46 x 46 x 32 in
• Weight (empty / full): 622 / 1,565 lb
• Fuel: Diesel
• Construction: Double-walled steel, 110% containment

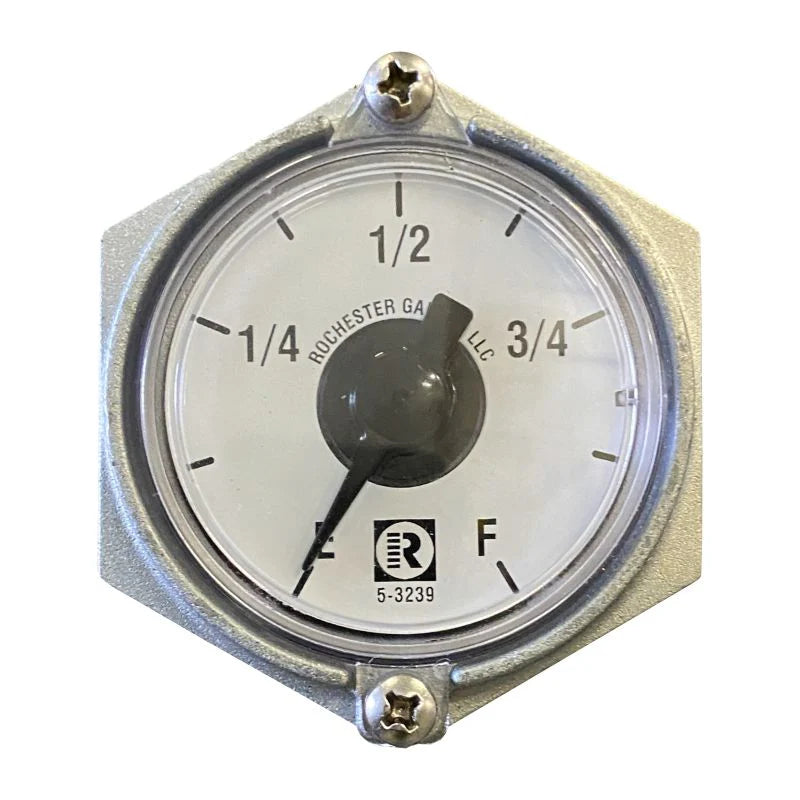

• Fuel gauge: Rochester spiral fuel level gauge
• Approvals: USDOT, Transport Canada, UL142, CAN/ULC-S601, NFPA 30 (UL listing does not cover use while in transport or optional accessories)

Applications

• Highway diesel transport
• Onsite fleet refueling
• Last-mile fuel delivery
• Limited access and remote jobsites
• Disaster relief

Frequently Asked Questions

How much does it hold?
119 US gallons brim fill; 113 US gallons safe fill (95%).

What are the dimensions and weight?
46 x 46 x 32 in (L x W x H); 622 lb empty and 1,565 lb full.

Is a pump included?

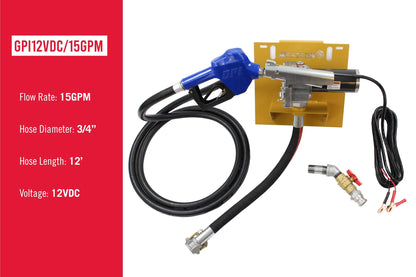

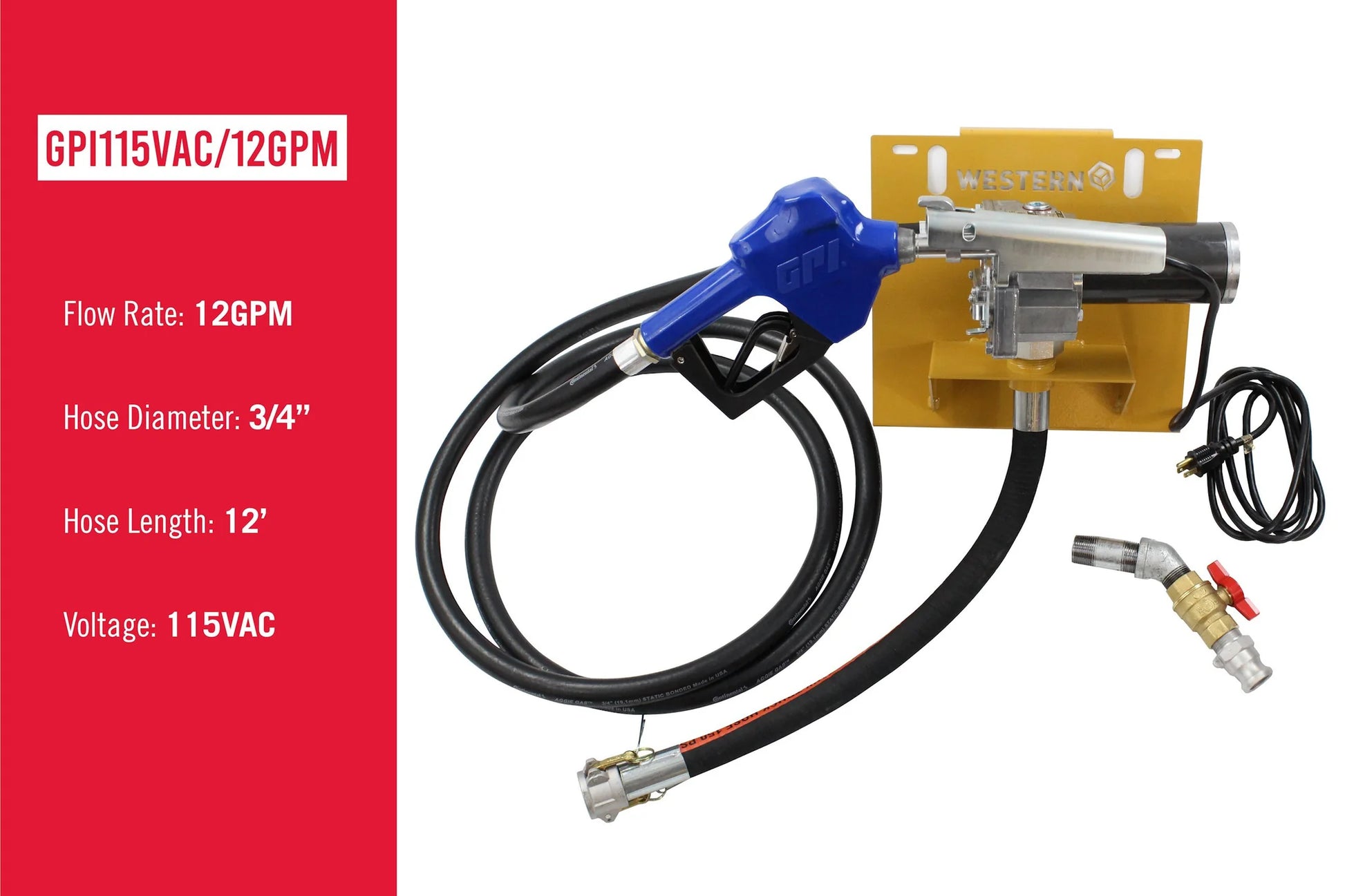

No. Add Western Global pump kit M150SAUK (12V DC, 15 GPM) or M1115SAUK (115V AC, 12 GPM).

Do I need hazmat placards to haul it?
Per Western Global, the FuelCube Type-S is a non-bulk package for the purpose of 49 CFR 173, so diesel can be transported in it without hazmat placarding in the US (49 CFR 173.150(f)).

What can I use it for?
Highway diesel transport; Onsite fleet refueling; Last-mile fuel delivery; Limited access and remote jobsites; Disaster relief.

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 3-5 Days, and it ships from Western Global in CA or NC. Shipping is calculated at checkout.

What warranty does it come with?
Western Global warranty: The steel tank carries an 8-year warranty from delivery.

Who makes it?
Western Global (part number FCSWN0119). Tank Supply Direct sells and supports it.

Manufacturer Documents

• Western Global FuelCube Type-S product page
• Western Global FuelCube Type-S datasheet (PDF)
• Western Global warranty
• Western Global warranty policy (PDF)

Shipping and Warranty

• Manufacture Lead Time: 3-5 Days
• Ships From (State): CA, NC

Products are subject to freight or parcel shipping costs. Shipping charges are calculated at checkout based on delivery location, product size, weight, and carrier requirements.

Warranty Information
Warranty period - 8 years (tank) from the date of delivery. The steel tank carries an 8-year warranty from delivery.

Western Global Warranty Policy
Western Global warrants its products against defects in materials and workmanship from the date of delivery: 8 years for steel tanks and 1 year for all other products, parts and accessories. A claim must be made within 30 days of becoming aware of the defect. For a valid claim, Western Global will, at its discretion, repair or replace the product or refund the purchase price. The warranty does not cover failure to perform normal maintenance, misuse or use outside the product's intended purpose, negligence, repairs or modifications not authorized by Western Global, shipping costs, consumables, normal wear and tear, or non-standard parts, among the other exclusions in Western Global's warranty policy (effective May 1, 2023).

For warranty details or to start a claim, contact Tank Supply Direct at info@tanksupplydirect.com. Source: Western Global warranty and warranty policy (PDF)
