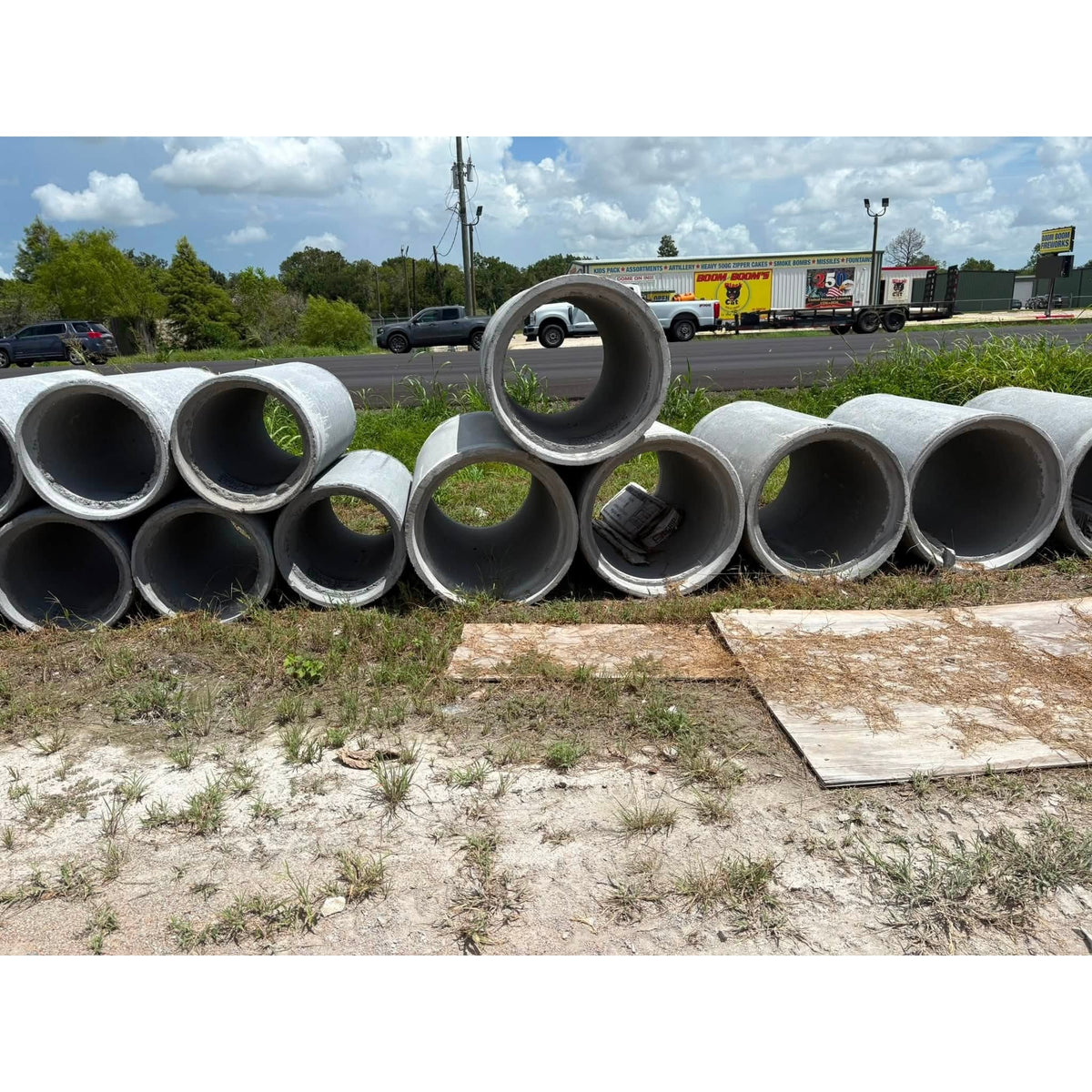

Texas Precast Reinforced Concrete Sample Well Riser Pipe

Description

The Texas Precast sample well riser pipe is a tongue-and-groove reinforced concrete pipe section used to bring a sample well base up to finished grade. It is field cut to the depth required. Texas Precast specifies 15" T&G R.C.P. for installations 6'-0" deep and less, and 24" T&G R.C.P. for installations deeper than 6'-0", which additionally require a standard ring and manhole cover.

Key Features

• Field Cut to Depth: Supplied oversize and cut on site to bring the well to finished grade
• Tongue and Groove: Self-aligning tongue-and-groove joint seals with non-shrink grout
• Depth-Rated Sizing: Texas Precast specifies 15" R.C.P. to 6'-0" deep and 24" R.C.P. beyond that
• Texas Manufactured: Cast in Santa Fe, Texas and shipped from the plant

Specifications

• Joint: Tongue and groove, sealed with non-shrink grout
• Sizing Rule: 15" T&G R.C.P. for installation 6'-0" deep and less; 24" T&G R.C.P. beyond 6'-0"
• Manufacturer: Texas Precast, L.L.C. - Santa Fe, Texas
• Ships From: Santa Fe, TX
• Dimensional Drawing: Sample Well Assembly drawing

Installation Requirements

• Sample well must be installed under a plumbing permit
• Use 15" T&G R.C.P. for installation 6'-0" deep and less
• Use 24" T&G R.C.P. for installation greater than 6'-0" deep (standard ring and manhole cover required)
• Set the sampling well in a circular or square concrete pad 1'-0" greater than the outside diameter of the pipe
• Inside installation is not permitted
• Lawn installation must be 4" above finished grade
• Drive and sidewalk installation must be brought to finished grade
• To be installed on private property, in a location accessible to city personnel

Applications

• Wastewater discharge monitoring and sampling
• Commercial and industrial sites that require a sampling point under a plumbing permit

Frequently Asked Questions

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 1-2 Weeks. It ships by flatbed freight from Santa Fe, Texas, and freight is quoted per order: email info@tanksupplydirect.com with your delivery address after you order.

What warranty does it come with?
Texas Precast warrants its products to be free from defects in material and factory workmanship for one year from the date of purchase. The remedy is replacement of the defective goods; labor and consequential damages are not covered. The full warranty text is in the Shipping and Warranty section below.

Who makes it?
It is supplied by Texas Precast, LLC of Santa Fe, Texas.

Manufacturer Documents

• Sample Well Assembly drawing (PDF)
• Texas Precast drawings page

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): TX

Products are subject to freight or parcel shipping costs. This item ships by flatbed freight, quoted separately. Shipping is not calculated at checkout - email info@tanksupplydirect.com with your delivery address and we will quote the freight for you.

Warranty Information
Texas Precast Product Warranty
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of one year from the date of purchase. We will replace at no cost goods that prove defective provided we are notified in writing of such defect and evidence that the product has been properly maintained and used in accordance with manufacturer’s intended purpose. We will not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for its intended use and the purchaser assumes all risk and liability whatever in connection therewith.

Source: Texas Precast Installation & Warranty (PDF)
