Texas Precast Reinforced Concrete Culvert Pipe - 4 ft Sections (15", 18" and 24")

Description

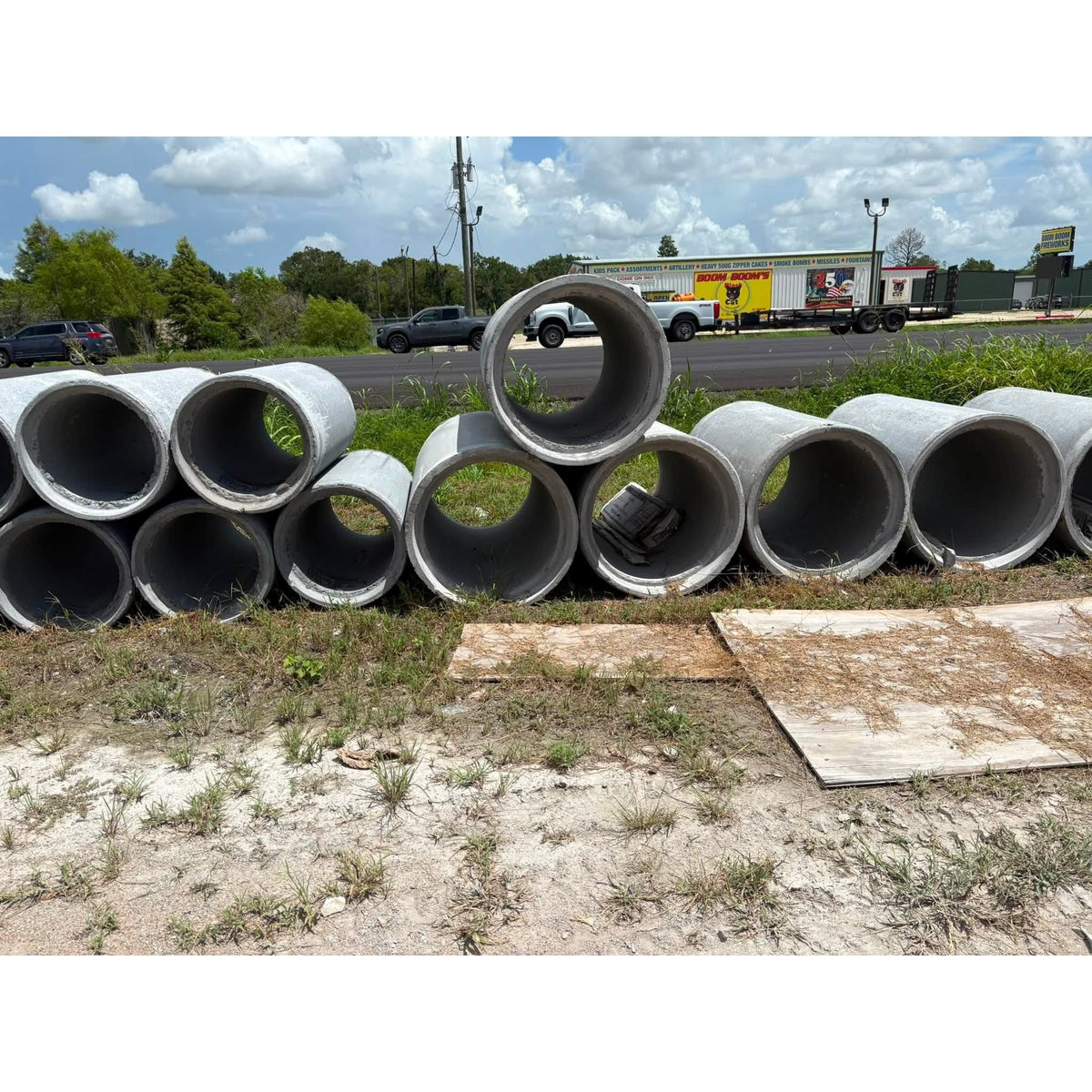

Texas Precast reinforced concrete culvert pipe is cast in tongue-and-groove sections for driveway, roadway and stormwater crossings. The concrete conforms to ASTM C76 Class III, Wall B. Each pipe is sold as one 4 ft section, so a run is built by laying sections end to end until the crossing is covered. Three inside diameters are stocked: 15" (19.5" outside diameter, 125 lb per foot), 18" (23" outside diameter, 175 lb per foot) and 24" (30" outside diameter, 275 lb per foot). Reinforcement is W2.0x2.5 3"x8" welded wire in all three sizes.

Key Features

• Sold by the 4 ft Section: The listed price is for one 4 ft length of pipe — order the number of sections your crossing needs
• ASTM C76 Class III, Wall B: Concrete for the reinforced concrete pipe conforms to ASTM C76 Class III, Wall B
• Tongue and Groove Joint: Sections join tongue-to-groove for a self-aligning run
• Three Stocked Diameters: 15", 18" and 24" inside diameter
• Welded Wire Reinforcement: W2.0x2.5 3"x8" welded wire reinforcement in all three stocked sizes
• 6 ft Lengths Available: Per the manufacturer's drawing, all pipe is also available in 6 ft lengths — contact us for 6 ft pricing and availability
• Texas Manufactured: Cast in Santa Fe, Texas and shipped from the plant

How Many Sections Do I Need?

Divide the length of your crossing by 4 and round up. A 20 ft driveway culvert takes five 4 ft sections; a 24 ft crossing takes six. If you need a length that does not divide evenly, or you would rather run 6 ft sections, email info@tanksupplydirect.com and we will quote it.

Specifications

• Unit of Sale: One 4 ft section
• Section Length: 4 ft (6 ft available on request)
• Inside Diameters Stocked: 15", 18", 24"
• Outside Diameters: 15" pipe = 19.5" O.D.; 18" pipe = 23" O.D.; 24" pipe = 30" O.D.
• Weight per Foot: 15" = 125 lb/ft; 18" = 175 lb/ft; 24" = 275 lb/ft
• Weight per 4 ft Section: 15" = 500 lb; 18" = 700 lb; 24" = 1,100 lb
• Reinforcement: W2.0x2.5 3"x8" welded wire
• Concrete: Conforms to ASTM C76 Class III, Wall B
• Manufacturer: Texas Precast, L.L.C. - Santa Fe, Texas
• Ships From: Santa Fe, TX
• Dimensional Drawing: Reinforced Concrete Culvert Pipe drawing

Applications

• Driveway and field entrance culverts
• Roadway cross drains and stormwater conveyance

Frequently Asked Questions

How much does it weigh?
Weight per 4 ft Section: 15" = 500 lb; 18" = 700 lb; 24" = 1,100 lb. It ships by flatbed freight, and the delivery site needs equipment to unload it.

What standard does it meet?
Conforms to ASTM C76 Class III, Wall B.

What can I use it for?
Common uses include driveway and field entrance culverts; roadway cross drains and stormwater conveyance.

How long does it take to ship, and where does it ship from?
The manufacturer lead time is 1-2 Weeks. It ships by flatbed freight from Santa Fe, Texas, and freight is quoted per order: email info@tanksupplydirect.com with your delivery address after you order.

What warranty does it come with?
Texas Precast warrants its products to be free from defects in material and factory workmanship for one year from the date of purchase. The remedy is replacement of the defective goods; labor and consequential damages are not covered. The full warranty text is in the Shipping and Warranty section below.

Who makes it?
Texas Precast, LLC of Santa Fe, Texas.

Manufacturer Documents

• Reinforced Concrete Culvert Pipe drawing (PDF)
• Texas Precast drawings page

Shipping and Warranty

• Manufacture Lead Time: 1-2 Weeks
• Ships From (State): TX
• Freight: Ships by flatbed freight, quoted per order

This product ships by flatbed freight and is not rated at checkout. Once your order is placed, email info@tanksupplydirect.com with your delivery address and the number of sections and we will quote the freight for you. Delivery is curbside; the receiving site needs equipment able to unload concrete pipe.

Warranty Information
Texas Precast Product Warranty
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of one year from the date of purchase. We will replace at no cost goods that prove defective provided we are notified in writing of such defect and evidence that the product has been properly maintained and used in accordance with manufacturer’s intended purpose. We will not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for its intended use and the purchaser assumes all risk and liability whatever in connection therewith.

Source: Texas Precast Installation & Warranty (PDF)
